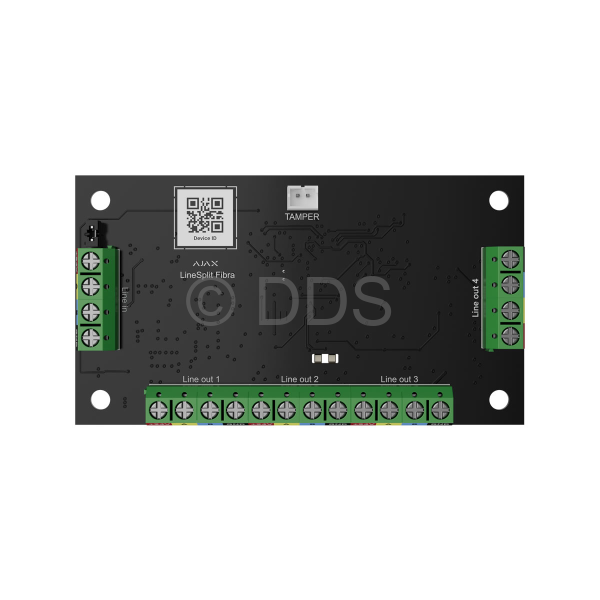

LineSplit (Fibra)

Call us for a price

AJX-LSPLIT-FIBRA(57204)

LineSplit brings a new level of flexibility to the installation process. There is no need to replace wiring if you want to replace an outdated security system with Ajax. The module can be installed at any point of the Fibra line (even after another LineSplit). It splits one Fibra line into four and extends each one of them by 2,000 m. LineSplit inherits all the advantages of Ajax smart devices: it is easy to control the module from the app, receive event notifications, and configure or test LineSplit remotely.

- 1 input / 4 outputs
- Up to 10 LineSplit modules can be one after the other
- Grade 3



Technical Specifications
Classification Line splitter unit
Installation method Indoor use only
Compatibility Operates with Hub Hybrid (2G) and Hub Hybrid (4G)
Number of output lines 4 (several Fibra devices can be connected to one line. The number of devices depends on their energy consumption)
Number of input lines 1
Fibra technology Recommended cable type for detector connection: Signal cable (4 x 0.22 copper) / Twisted pair U/UTP CAT5 (4 x 2 x 0.51)
Connection wire length: Up to 2000m
Device polling period: 12−300 s
Power supply 6−30 V⎓, up to 25 mW
Permissible humidity Up to 75%
Operating temperature range -10°С to +40°С
Anti-sabotage Protection against spoofing
Tampering alarm
Connection loss detection
Dimensions 90mm х 50mm x 15mm
Weight 34g
Certification EN 50131 (Grade 3), EN 50131-1:2006 / A1:2009 / A2:2017 / A3:2020, EN 50131-3:2009
