LineProtect (Fibra)

Call us for a price

AJX-LPROTECT-FIBRA(61384)

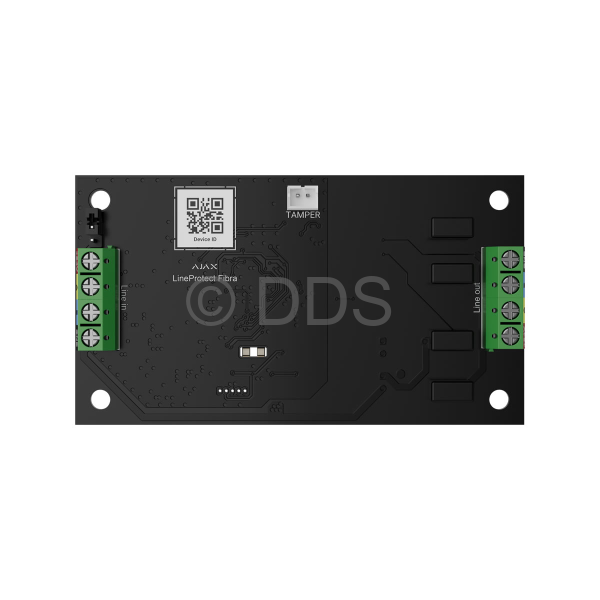

LineProtect is a module to protect the Fibra line and devices from electrical sabotage. If an intruder tries to damage the security system and, for example, hits the Superior StreetSiren Fibra with a stun gun, LineProtect will take the hit. All devices between LineProtect and the hub will continue to operate. The module can be installed at any point of the Fibra line. The output line from LineProtect can be up to 2000 meters in length. LineProtect inherits all the advantages of Ajax smart devices: it is easy to control the module from the app, receive event notifications, and configure or test LineProtect remotely.

- 1 input / 1 output
- Multiple lines protection
- Grade 3



Technical Specifications
Classification Electrical protection unit
Installation method Indoor use only
Compatibility Operates with Hub Hybrid (2G) and Hub Hybrid (4G)
Number of output lines 1 (LineProtect can be installed behind any Fibra device)
Number of input lines 1 (the number of Fibra devices connected to the output line depends on their energy consumption)
Lines protection Voltage supply - Fuses are triggered if an abnormal voltage is supplied on the Fibra line. After that LineProtect needs to be replaced
Short circuit on the line
Hit by stun gun
Overvoltage - The module protects devices when voltage is supplied to A and B signal terminals
Alarm signal delivery time 0.15s
Fibra technology Recommended cable type for detector connection: Signal cable (4 x 0.22 copper) / Twisted pair U/UTP CAT5 (4 x 2 x 0.51)
Connection wire length: Up to 2000m
Device polling period: 12−300 s
Operating temperature range -10°С to +40°С
Permissible humidity Up to 75%
Anti-sabotage Protection against spoofing
Tamper alarm
Connection loss detection
Dimensions 90mm х 50mm x 15mm
Weight 28g
Certification EN 50131 (Grade 3), EN 50131-1, EN 50131-3, EN 50130-4, EN 50130-5, EN 55032
