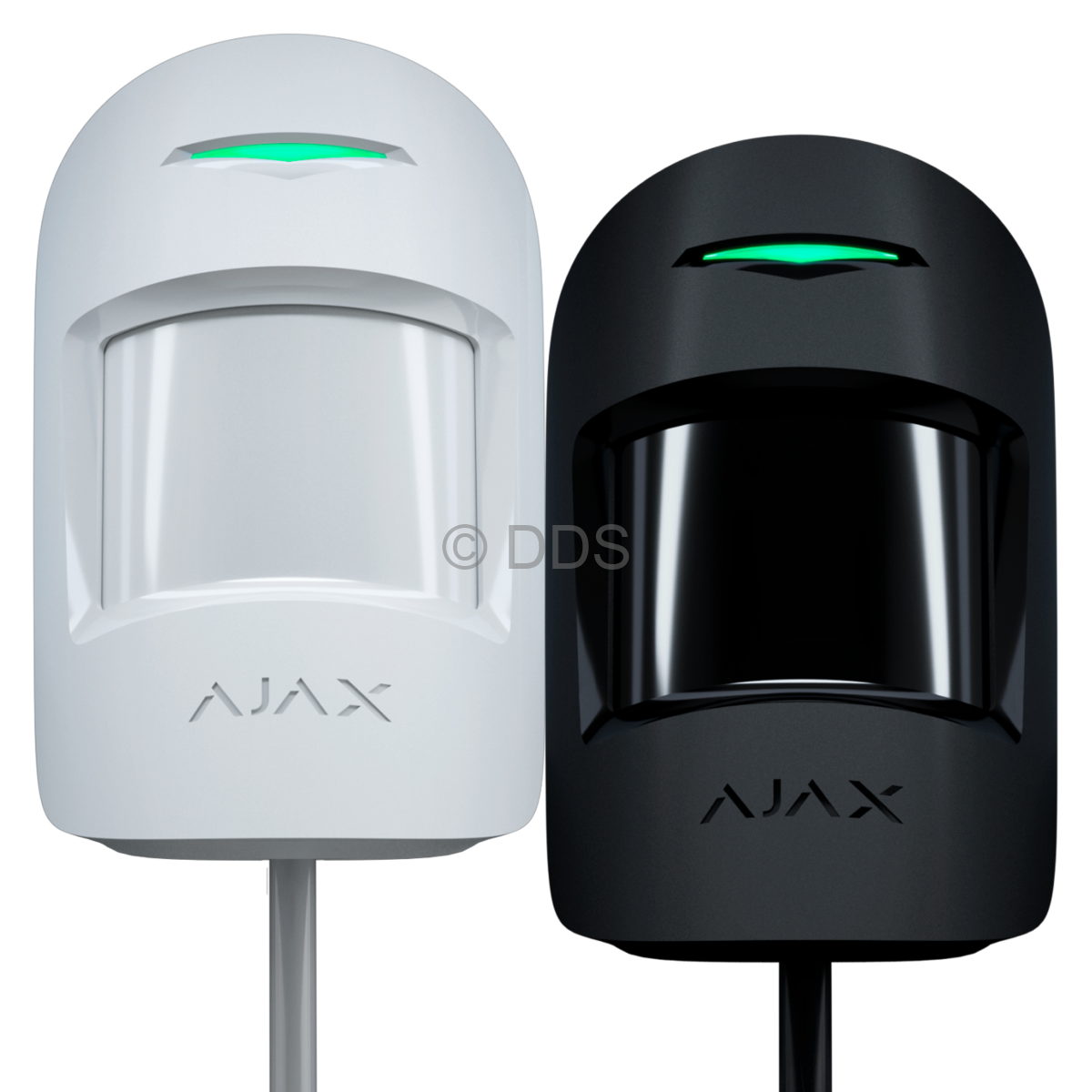

MotionProtect Detector (Fibra)

Call us for a price

AJX-MP-FIBRA(44405/46713)

Wired motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. The device detects human presence by IR level using a passive IR sensor. The data received is digitally processed in order to prevent false alarms. The device automatically increases or decreases the sensor sensitivity in order to accurately detect motion during hot and cold weather.

- Bus connection with 4-core cable, up to 2000 meters (when using twisted pair U/UTP CAT5)
- Ignores cats and dogs with a weight of up to 20 kg and height of up to 50 cm
- Alarm signal delivery time of 0.15 s
- Maximum detection distance of 12m
- Accurately detects motion in heat conditions, even at a temperature of +40°С
- Vertical detection: 80°
- Horizontal detection: 88.5°



Technical Specifications
Classification Electro-optical security detector
Installation method Indoors
Compatibility Operates with Hub Hybrid (2G) and Hub Hybrid (4G) only
Sensing element PIR sensor
Alarm signal delivery time 0.15s
Motion detection distance Up to 12m
Detection angles Horizontal: 88.5°
Vertical:  80°
Recommended installation height 2.4m
Pet immunity Weight: up to 20 kg
Height: up to 50 cm
Fibra technology Recommended cable type for detector connection: Signal cable (4 x 0.22 copper) / Twisted pair U/UTP CAT5 (4 x 2 x 0.51)
Connection wire length: Up to 2000m
Device polling period: 12−300 s
Power supply Power supply voltage: 24V
Power consumption: up to 50 μA
Permissible humidity Up to 75%
Operating temperature range -10°С to +40°С
Anti-sabotage Protection against fraud
Tamper-resistant
Dimensions 110mm х 65mm x 50mm
Weight 86g
Certification EN 50131 (Grade 2), PD 6662:2017, IP50
