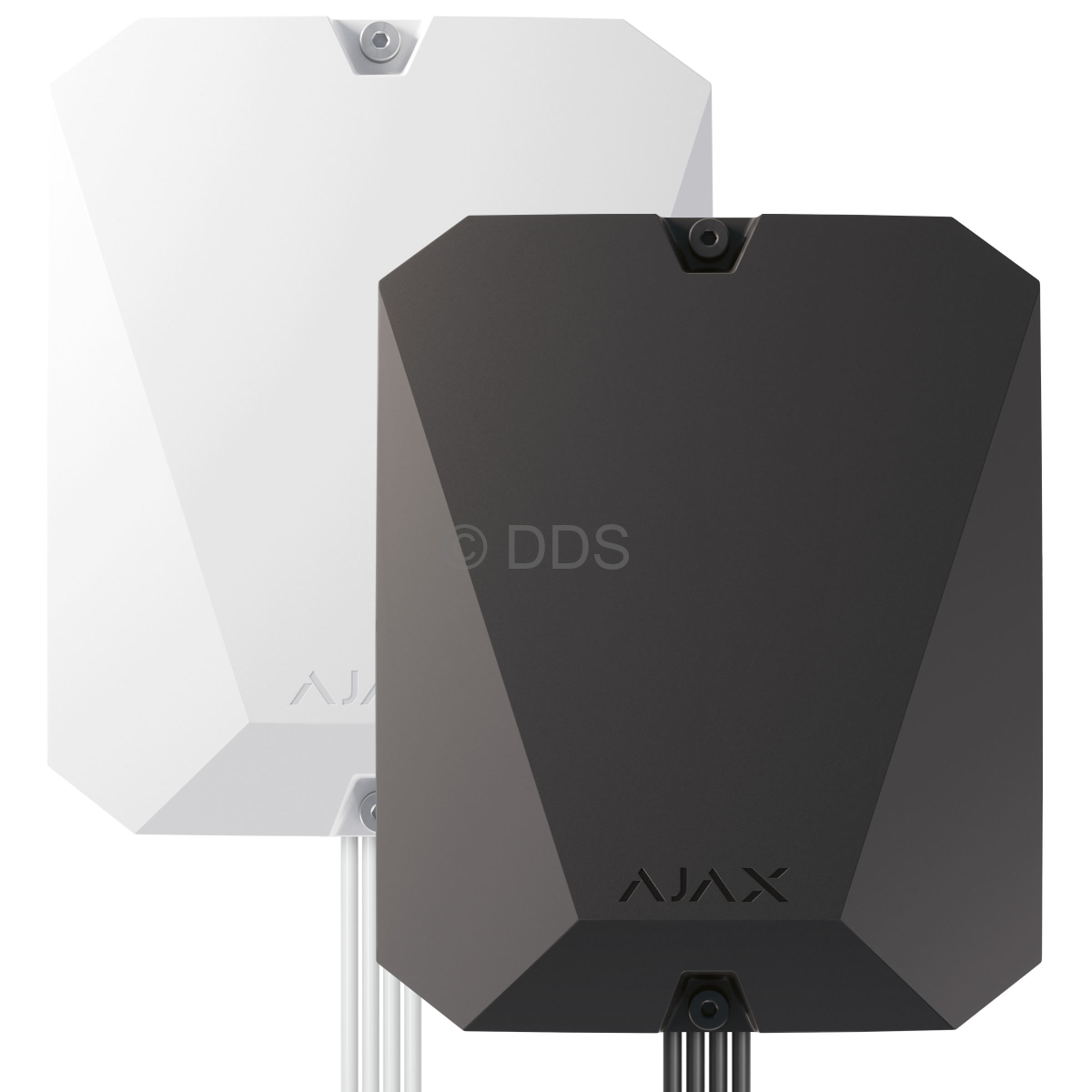

Ajax Alarm Control Hub Hybrid (2G)

Call us for a price

AJX-HUB-HYBRID(46722)

The Hub Hybrid (2G) intelligent control panel is a key element of the Ajax security system. It is the first Ajax control panel supporting wireless Jeweller devices and the new wired Fibra product line. Wired and wireless technologies are combined to build complex protection regardless of facility size, steel or concrete obstructions.

- Connect up to 100 devices to the hub
- Up to 50 users per hub
- Supports the MotionCam
- Connects using ethernet or 2 Micro-SIM's
- Grade 3 rated
- Checks in with devices every 36 seconds (other systems tend to check in every 20 minutes)
- Compatible with iOS and Android



Technical Specifications
Classification Central unit with GSM and Ethernet modules
Maximum number of devices connected to the hub 100
Maximum number of cameras connected to the hub 25
Maximum number of users 50
Maximum number of rooms 50
Maximum number of groups 9
Number of ReX connected 5
Maximum number of sirens 10
Compatible wire 4-core cable
Input 8 bus lines
Bus line length Up to 2000m (When using the U/UTP CAT5 twisted pair)
Scenarios supported 32
Mobile apps iOS 9.1 and later
Android 4.1 and later
Communication channels Ethernet
GSM (850/900/1800/1900 MHz)
Alarm signal Delivery time: 0.15 s
Types of notifications: SMS message, call, push
Communication with Central Monitoring Station Contact ID, SIA
Power supply Mains supply: 110−240 V
Support for 12V 4Ah or 7Ah backup battery (7Ah can power a system of 30 wired devices for 60 hours)
SIM card support 2 x Micro-SIM 2G
Operating temperature range +5°С to +40°С
Anti-sabotage Protection against fraud
Jamming detection
Tamper-resistant
Support notification types Push notification, SMS, calls
Dimensions 192mm x 238mm x 100mm
Weight 852g
Certification Grade 3 (EN 50131), PD6662:2017, CE
