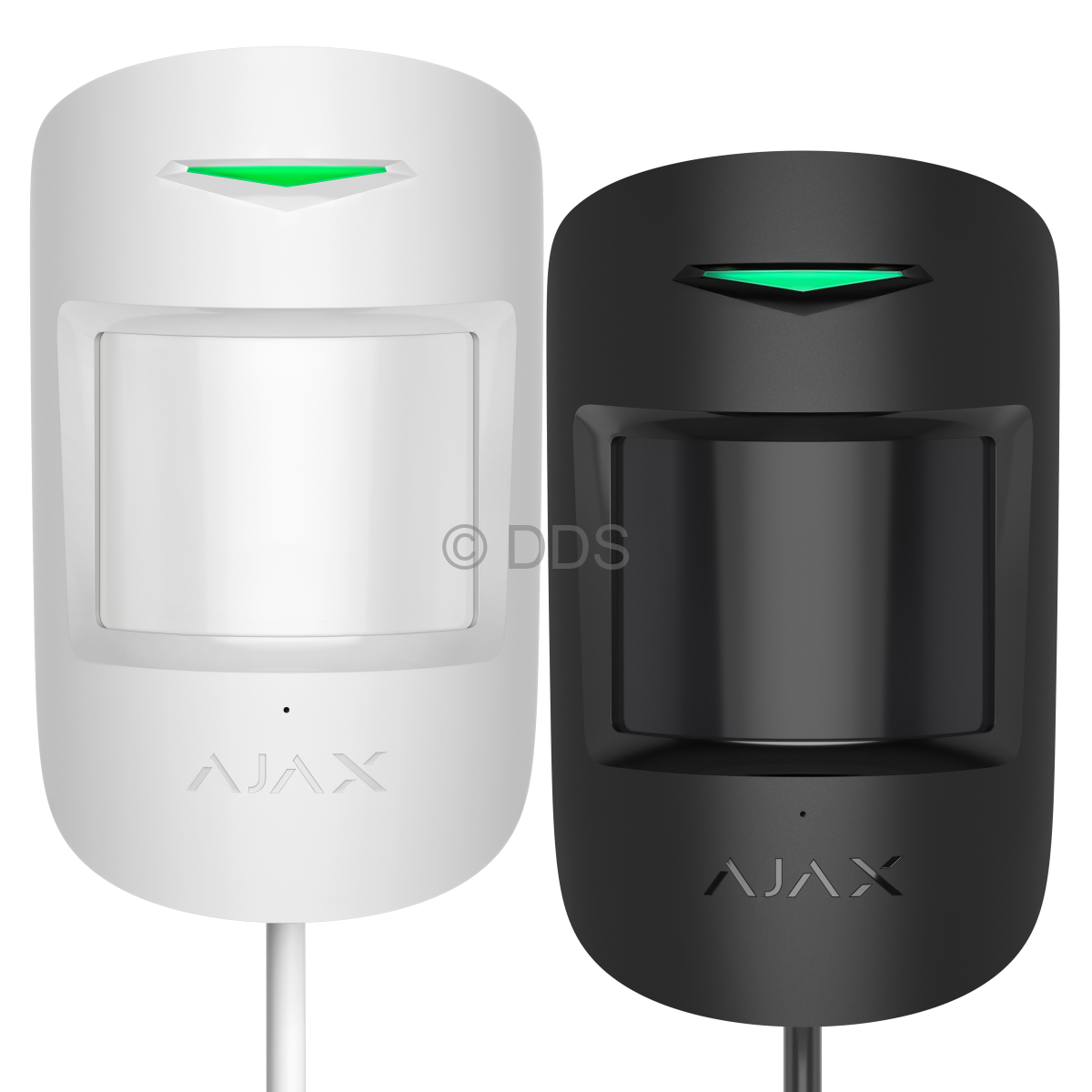

CombiProtect Detector (Fibra)

Call us for a price


Wired motion detector that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. The device combines the functions of two detectors - motion detector and glass break detector. It detects motion in the room at a distance of up to 12m and registers broken glass at a distance of up to 9m from the window.

- Bus connection with 4-core cable, up to 2000 meters (when using twisted pair U/UTP CAT5)
- Ignores cats and dogs with a weight of up to 20 kg and height of up to 50 cm
- Alarm signal delivery time of 0.15 s
- Maximum detection distance of 12m
- Maximum breakage detection distance of 9m
- Accurately detects motion in heat conditions, even at a temperature of +40°С
- Vertical detection: 80°
- Horizontal detection: 88.5°


Technical Specifications
Classification Electro-optical combined security detector
Installation method Indoors
Compatibility Operates with Hub Hybrid (2G) and Hub Hybrid (4G) only
Sensing element PIR sensor, electret microphone
Alarm signal delivery time 0.15s
Motion detection distance Up to 12m
Detection angles Horizontal: 88.5°
Vertical:  80°
Recommended installation height 2.4m
Pet immunity Weight: up to 20 kg
Height: up to 50 cm
Fibra technology Recommended cable type for detector connection: Signal cable (4 x 0.22 copper) / Twisted pair U/UTP CAT5 (4 x 2 x 0.51)
Connection wire length: Up to 2000m
Device polling period: 12−300 s
Power supply Power supply voltage: 24V
Power consumption: up to 60 μA
Permissible humidity Up to 75%
Operating temperature range -10°С to +40°С
Anti-sabotage Protection against fraud
Dimensions 110mm х 65mm x 50mm
Weight 92g
Certification EN 50131 (Grade 2), PD 6662:2017, IP50
