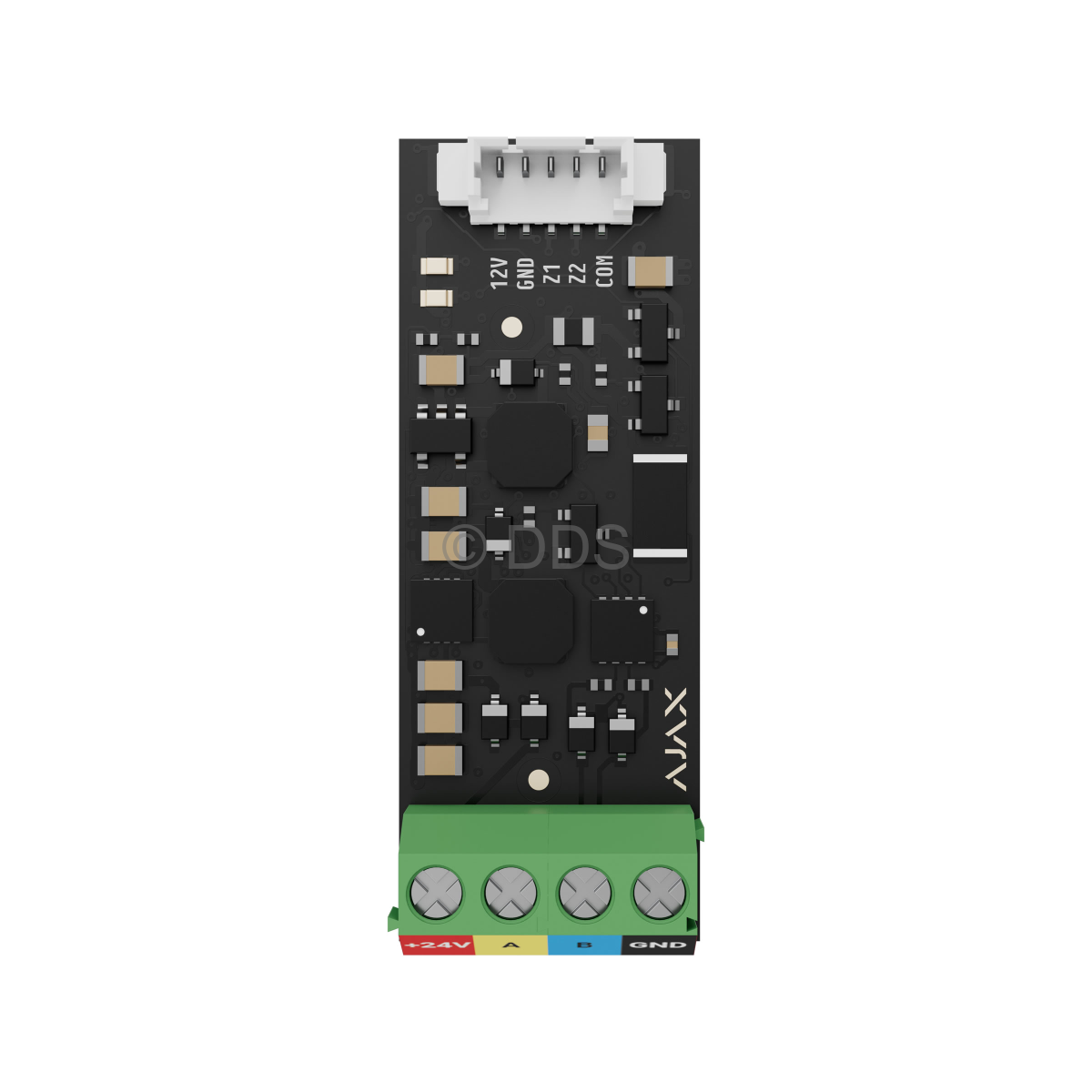

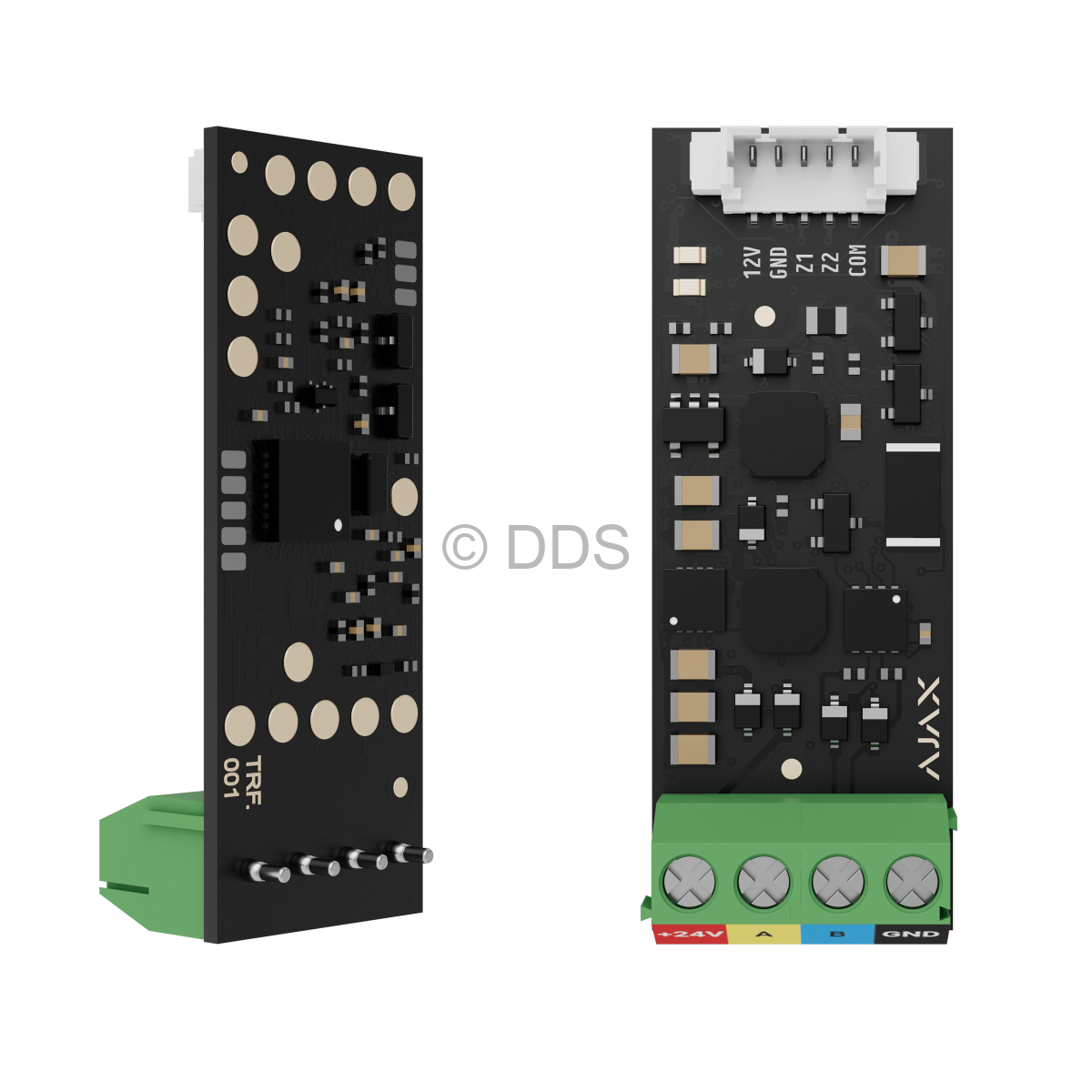

Transmitter for 3rd Party Detectors (Fibra)

Call us for a price

AJX-TX-FIBRA(77373)

Transmitter Fibra serves two primary purposes: first, to connect functional third-party devices to the Ajax system, enhancing their capabilities; and second, to сonnect specific devices not yet included in the Ajax portfolio. Transmitter Fibra can be easily installed with any third-party device. The module supports all connection types, including 3EOL, provides numerous event types for the connected device, can be remotely configured, and regularly reports its state to the hub.

- Converts third-party detectors to the Ajax full-featured devices
- Supported configurations: roller shutter, tamper, wired device with 15 event types
- Output of 12V for the integrated device
- Grade 3 (EN 50131)

Technical Specifications
Classification Module for third-party detector integration
Installation method Indoors/outdoors
Compatibility Operates with Hub Hybrid 2G and Hub Hybrid 4G
Connector pins 12V - power supply output for a wired detector
GND - ground
Z1-Z2 - inputs for connecting a wired detector
COM - common input for connecting signal contacts of a wired detector
Transmitter Fibra has 2 inputs (Z1 and Z2) to connect the wired detector using the AATT (i.e., Alarm Alarm Tamper Tamper) scheme
Type of connection NO, NC, EOL, 2EOL, 3EOL
Cable length Up to 3m (when using a signal cable with a 0.22 mm² copper conductor)
Operation mode Pulse or bistable
Fibra technology Recommended cable type for detector connection: Signal cable (4 x 0.22 copper) / Twisted pair U/UTP CAT5 (4 x 2 x 0.51)
Connection wire length: Up to 2000m
Device polling period: 12−300 s
Power supply Power supply voltage: 7-30V
Power consumption: up to 200 mA
Output to the connected wired device: 10.5-15 V, up to 50mA
Permissible humidity Up to 75%
Operating temperature range -25°С to +50°С
Anti-sabotage Protection against spoofing
Instant line damage detection
Communication loss detection
Dimensions 40mm х 15mm x 12.2mm
Weight 6g
Certification Grade 3 (EN 50131), CE
