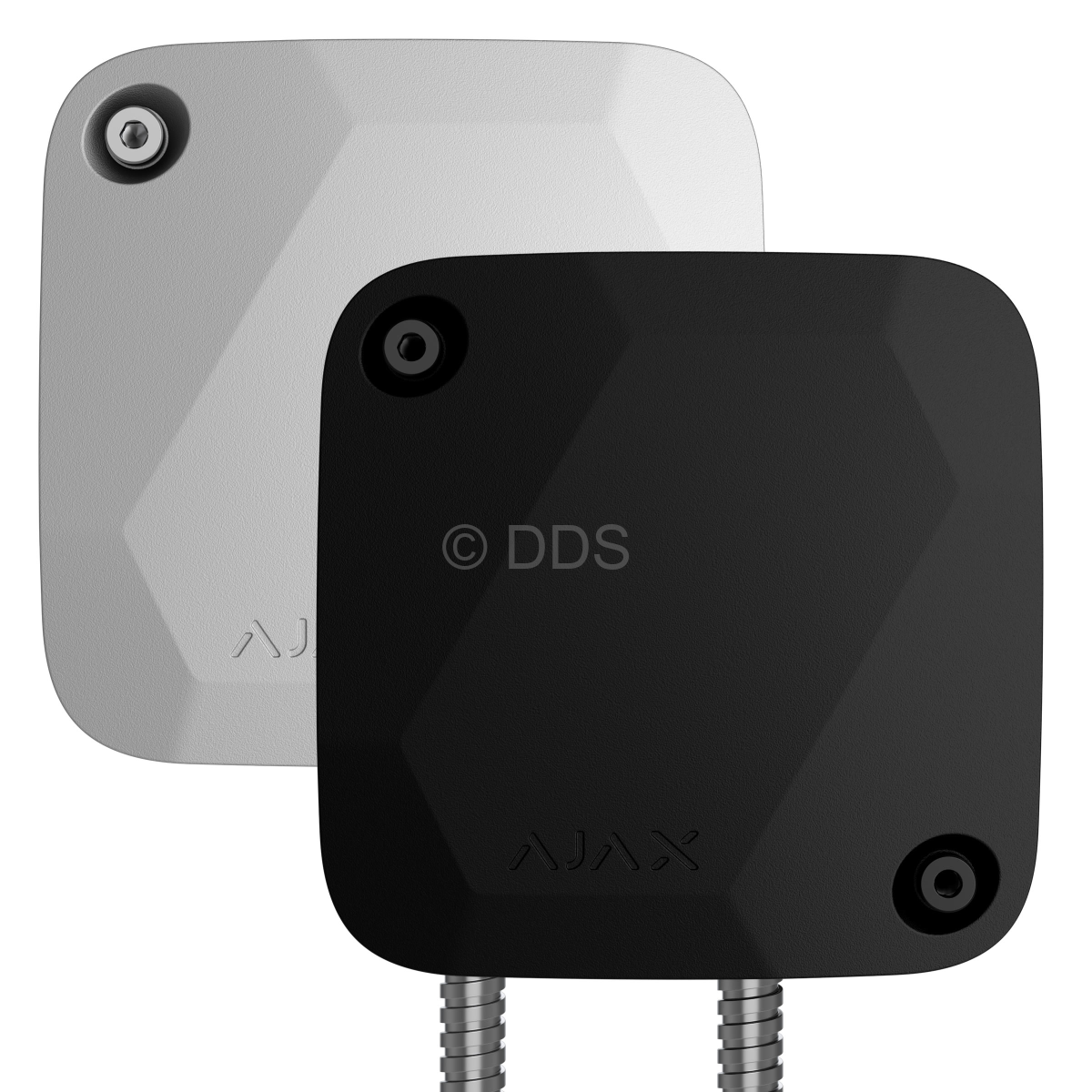

SeismoProtect G3 Detector (Fibra)

Call us for a price

AJX-SEISMO-FIBRA(117736)

SeismoProtect G3 Fibra is designed to detect vibrations caused by drilling or cutting attempts and explosions. The detector also identifies physical force, such as bending or pushing, temperature changes near the enclosure, and quickly reacts to shocks and tilt. The advanced software algorithm analyses all detected vibrations to filter out false alarms. Installation is easy and convenient, requiring no extra cost: everything an installer might need to do the job is included.

- Bus connection with 4-core cable, up to 2000 meters (when using twisted pair U/UTP CAT5)
- Alarm signal delivery time of 0.15 s
- Detection radius of 4m for concrete
- Detection radius of 2m for steel
- Detects if the enclosure is being drilled or cut



Technical Specifications
Classification Wired seismic detector with an additional shock sensor
Installation method Indoors
Compatibility Operates with Hub Hybrid (2G) and Hub Hybrid (4G) only
Sensing element Accelerometer, digital temperature sensor, piezoelectric sensor
Threats that can be detected Blast waves
Explosions
Physical force such as bending, pressing or pushing
Vibrations from drilling or cutting
Operating radius Concrete - 4m
Steel - 2m
The operating radius may vary significantly depending on the structure integrity
Alarm signal delivery time 0.15s
Tilt sensor activation threshold From 5° to 25°
Self-test of sensitive elements The device checks its sensors’ state with a self-test device and notifies if any malfunction is detected. Self-testing can be automatic or manual.
Fibra technology Recommended cable type for detector connection: Signal cable (4 x 0.22 copper) / Twisted pair U/UTP CAT5 (4 x 2 x 0.51)
Connection wire length: Up to 2000m
Device polling period: 12−300 s
Power supply Power supply voltage: 24V
Power consumption: up to 12 mA
Permissible humidity Up to 95%
Operating temperature range -25°С to +70°С
Anti-sabotage Alarm in case of high temperature
Alarm in case of rapid temperature rise
Enclosure drilling detection
Tamper-alarm
Dimensions 88mm х 88mm x 20mm
Weight Detector: 170g
Mounting plate: 224g
Armoured cable: 130g
Certification EN 50131 (Grade 3), PD 6662:2017, IP43, IK04,
