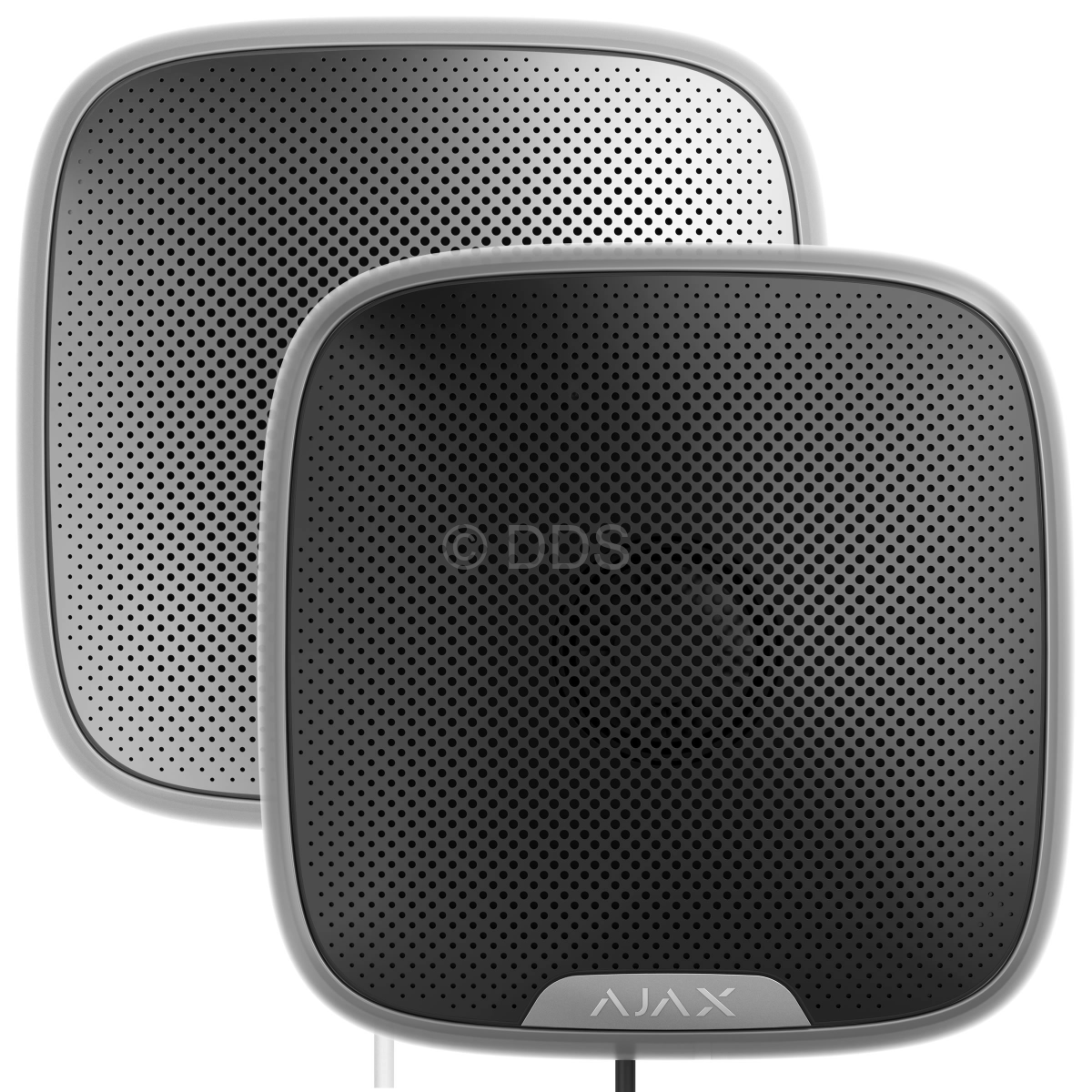

Outdoor StreetSiren (Fibra)

Call us for a price

AJX-SSIREN-FIBRA(44412/46720)

Wired outdoor siren that notifies of danger using sound and light. Resistant to dust, hail, and raindrops. Operates at a temperature of -25°С. The built-in accelerometer will raise the alarm if an attempt is made to remove the siren.

- Bus connection with 4-core cable, up to 2000 meters (when using twisted pair U/UTP CAT5)
- Indicates armed/disarmed state by means of a built-in LED
- Sound level configurable from 85dB to 113 dB at a distance of 1 m
- Alarm length configurable from 3s to 180s
- Backup battery in case of attempts to cut off the siren from Fibra line



Technical Specifications
Classification Light and sound security sounder
Installation method Indoors/outdoors
Compatibility Operates with Hub Hybrid (2G) and Hub Hybrid (4G) only
Type of notification Sound, light
Indication of armed/disarmed status Yes
Sound volume level Adjustable, 85-113 dB at a distance of 1 m
Alarm length Adjustable, 3−180 s
Fibra technology Recommended cable type for detector connection: Signal cable (4 x 0.22 copper) / Twisted pair U/UTP CAT5 (4 x 2 x 0.51)
Connection wire length: Up to 2000m
Device polling period: 12−300 s
Power supply Power supply voltage: 24V
Power consumption: up to 100 μA
Backup power supply: LTO 18650, 1500mAh, 2.4V (up to 30 minutes of alarm signalling after main power failure)
Permissible humidity Up to 95%
Operating temperature range -25°С to +60°С
Anti-sabotage Protection against fraud
Tamper-resistant
Dimensions 198.5mm х 198.5mm x 58mm
Weight 575g
Certification EN 50131 (Grade 3), PD 6662:2017, IP54
