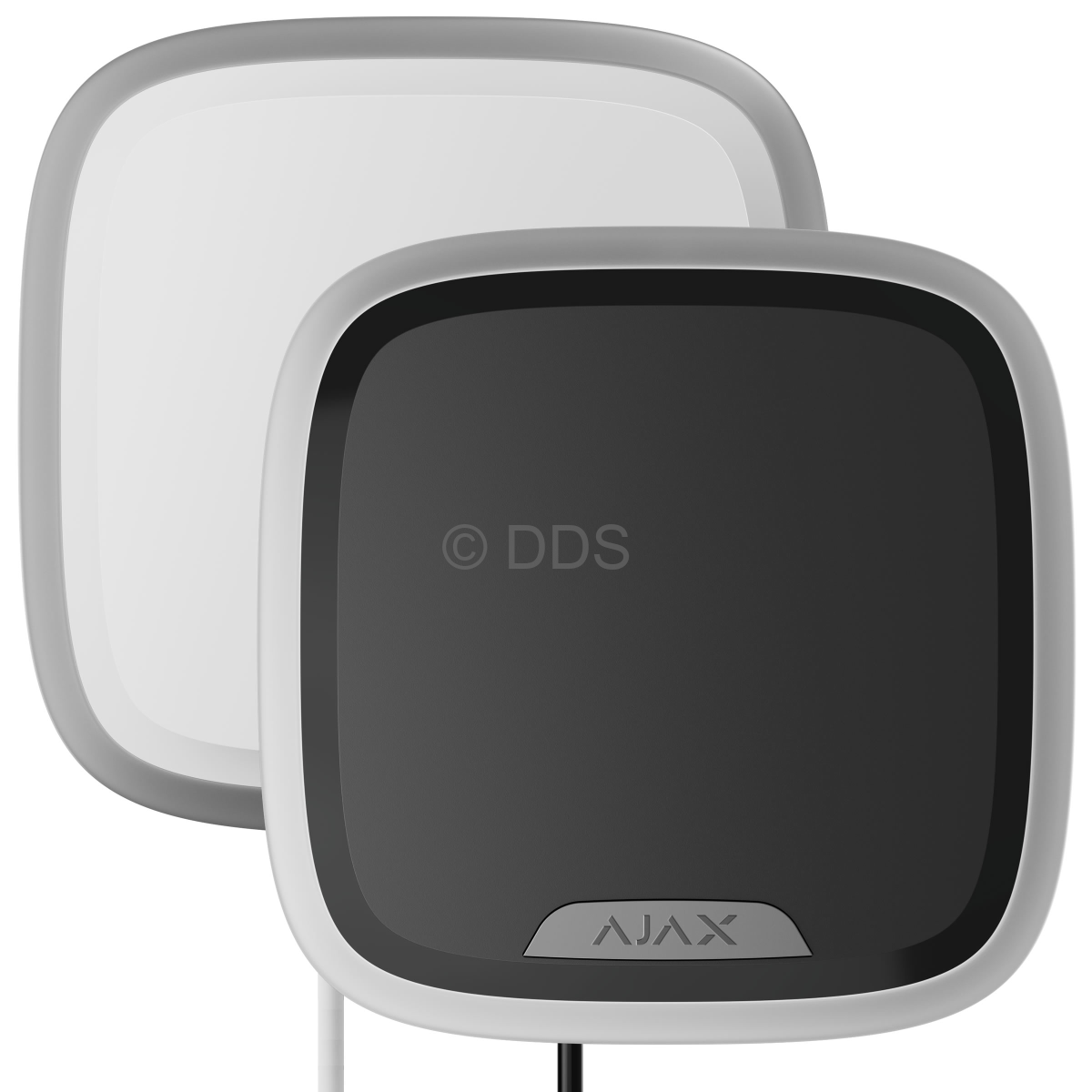

Outdoor StreetSiren Plus (Fibra)

Call us for a price

AJX-SSIREN-PLUS-FIBRA(117727)

Superior StreetSiren Plus Fibra is the next level of signaling alarm and events in an Ajax security system. Featuring selectable alarm tones and impossible-to-miss LED indication, the device deters intruders, displays system security status, and provides an after-alarm indication. Moreover, it has a Chime feature that alerts users to delays when they enter or leave. The siren has a powerful wired communication range of up to 2,000 m without line extenders, additional power supply during an alarm, and multi-layered sabotage protection. A single Fibra line can accommodate up to 10 sirens and is protected against short circuits, spoofing, and line breakage.

- Indicates armed/disarmed state by means of a built-in LED
- Sound level configurable from 85dB to 107dB at a distance of 1 m
- Alarm length configurable from 3s to 180s
- IP54 rated
- Backup battery in case of attempts to cut off the siren from Fibra line



Technical Specifications
Classification Warning device with LED indicators (outdoor siren)
Installation method Indoors/outdoors
Compatibility Operates with Hub Hybrid (2G) and Hub Hybrid (4G) only
Type of notification Sound/light
Indication of armed/disarmed status 2 types (the user can choose between the Corner backlight and Full-frame backlight features. Full-frame backlight works only when the siren has sufficient battery power)
LED indication Adjustable, 85-107 dB at a distance of 1 m
Alarm sound 3 types (NFA2P-compliant, VdS-compliant, or Regular)
Sound volume level Adjustable, 85-107 dB at a distance of 1 m
Alarm length From 3s to 180s
Fibra technology Recommended cable type for detector connection: Signal cable (4 x 0.22 copper) / Twisted pair U/UTP CAT5 (4 x 2 x 0.51)
Connection wire length: Up to 2000m
Device polling period: 12−300 s
Power supply Power supply voltage: 24V
Power consumption: up to 100 μA
Backup power supply: LTO 18650, 3,000mAh, 2.4V
Permissible humidity Up to 95%
Operating temperature range -25°С to +60°С
Anti-sabotage Protection against fraud
Jamming detection
Tamper-resistant
Dimensions 210mm х 210mm x 71mm
Weight 1,059g
Certification EN 50131 (Grade 3), PD 6662:2017, IP54, IK08
