Ajax Superior KeyPad TouchScreen Fibra
Save
100%
100%

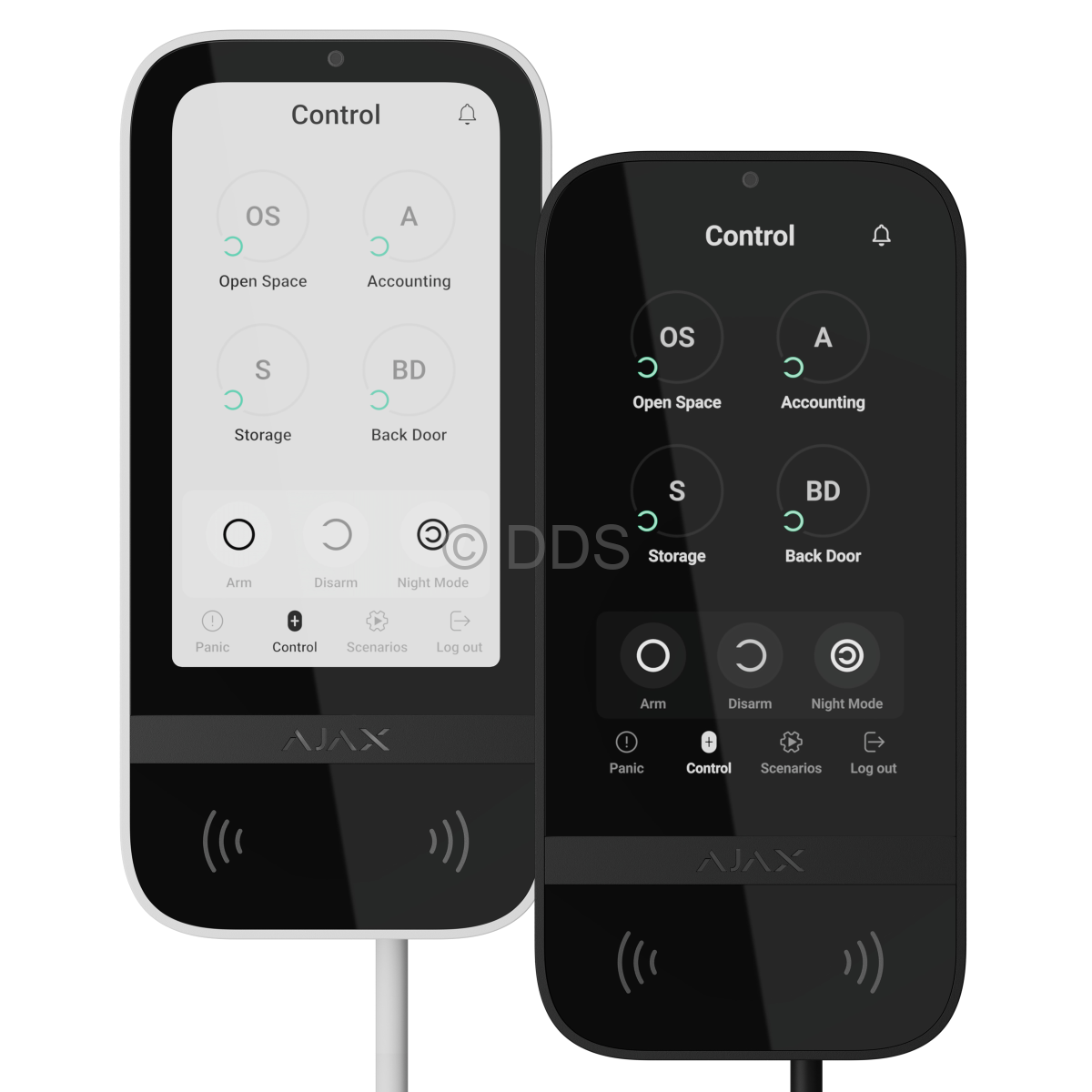

KeyPad TouchScreen Fibra inherits the interface of Ajax smartphone apps to provide easy and familiar system control. A 5-inch touchscreen allows you to access any group's current security mode quickly. It activates by raising a hand nearby and has an automatic brightness control. A keypad has a sound indication and can notify about alarms, delays when entering/leaving, and door opening when the system is disarmed. The volume is adjusted in Ajax apps. The keypad also displays the system integrity check result and informs about malfunctions when arming.
- Bus connection with 4-core cable, up to 2000 meters (when using twisted pair U/UTP CAT5)
- Activate the full security mode by pressing one button
- Duress code to raise a silent alarm if forced to enter the code by an intruder
- Use with Ajax Pass, Tag, or smartphone
- Grade 3 (EN 50131)
| Technical Specifications | |
| Classification | Wired touchscreen keypad |
| Installation method | Indoors |
| Compatibility | Operates with Hub Hybrid (2G) and Hub Hybrid (4G) only |
| Duress code | Yes |
| Display type | IPS, capacitive touchscreen |
| Display size | 5" |
| Display resolution | 480 x 854 |
| Contactless access | DESFire EV1, EV2 ISO14443-A (13.56 Mhz) |
| Access device capacity | Up to 200 cards or tags (depending on the Hub model) |
| Smartphone support | Android or iOS, with Bluetooth LE 4.2 and higher |
| Protection against password attack/guessing | Yes |
| Arming/disarming indication | Yes |
| Fibra technology | Recommended cable type for detector connection: Signal cable (4 x 0.22 copper) / Twisted pair U/UTP CAT5 (4 x 2 x 0.51) Connection wire length: Up to 2000m Device polling period: 12−300 s Backup batteries: 2x AA (pre-installed) External power: Optional, 10.5-14V |
| Permissible humidity | Up to 75% |
| Operating temperature range | -10°С to +40°С |
| Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
| Dimensions | 171.5mm х 82.1mm x 26mm |
| Weight | 327g |
| Certification | Grade 3 (EN 50131), PD6662:2017, CE |
