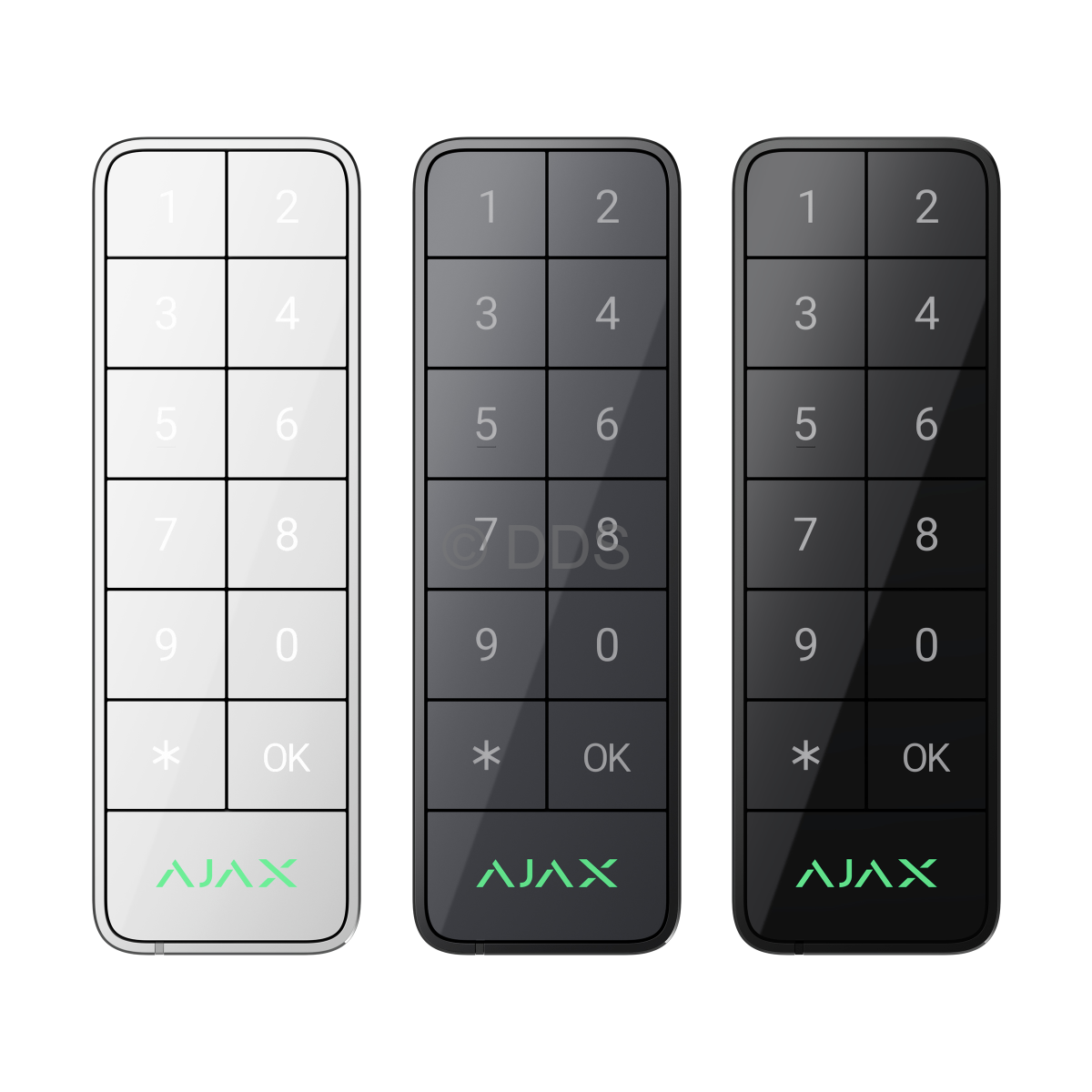

KeyPad Outdoor (Fibra)
Save
100%
100%
Meet the all-weather key to security and automation. Control security modes, activate Night Mode, manage specific groups, and run scenarios with one keypad. Use classic passcodes or go contactless. The ultra-narrow enclosure fits anywhere and still has big, glove-friendly mechanical buttons with sleek feedback. The durable enclosure is built to withstand any operating conditions and maintain full functionality even after being hit or physically damaged. Uncompromisingly secure keypad that gives intruders a hard time to hack it open.
- Bus connection with 4-core cable, up to 2000 meters (when using twisted pair U/UTP CAT5)
- Activate the full security mode by pressing one button
- Duress code to raise a silent alarm if forced to enter the code by an intruder
- Use with Ajax Pass, Tag, or smartphone
- Grade 3 (EN 50131)
| Technical Specifications | |
| Classification | Physical keypad |
| Installation method | Indoors/Outdoors |
| Compatibility | Operates with Hub Hybrid (2G) and Hub Hybrid (4G) only |
| Contactless access | DESFire EV1, EV2 ISO14443-A (13.56 Mhz) |
| Access device capacity | Up to 200 cards or tags (depending on the Hub model) |
| Smartphone support | Android or iOS, with Bluetooth LE 4.2 and higher |
| Codes | 50 personal codes (one per registred/unregistred user), 1 general code (one per KeyPad) |
| Duress code | Yes |
| Protection against password attack/guessing | Yes |
| Arming/disarming indication | Yes |
| Function button | Panic, mute fire alarm or none (disabled) |
| Indication of malfunctions and security mode | If enabled, the keypad notifies users with an LED indication of the security mode, problems with detectors, or loss of communication with the hub. A built-in buzzer notifies of alarms, door openings, and entry/exit delays. |
| Fibra technology | Recommended cable type for detector connection: Signal cable (4 x 0.22 copper) / Twisted pair U/UTP CAT5 (4 x 2 x 0.51) Connection wire length: Up to 2000m Device polling period: 12−300 s |
| Power supply | Power supply voltage: 24V Power consumption: up to 25 mA |
| Permissible humidity | Up to 80% |
| Operating temperature range | -25°С to +60°С |
| Anti-sabotage | Protection against fraud Tamper-resistant Code guessing protection |
| Dimensions | 137mm х 45mm x 27mm |
| Weight | 160g |
| Certification | EN 50131 (Grade 3), PD 6662:2017, IP66, IK08 |
