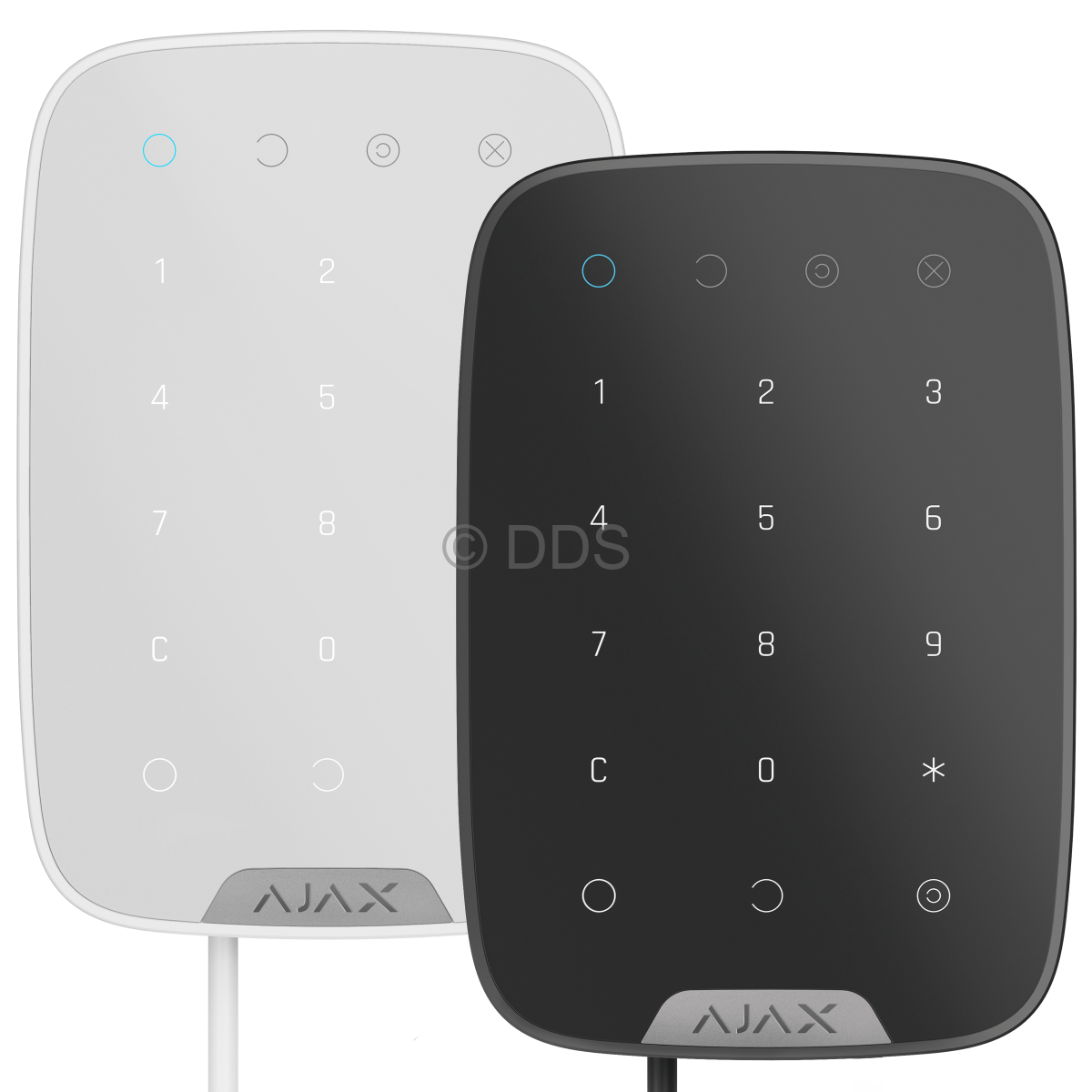

KeyPad (Fibra)

Call us for a price

AJX-KEYP-FIBRA(44401/46709)

Wired touch keypad is used for arming/disarming of the Ajax security system. The device operates security modes when a digital code is entered on the keypad. Indication notifies of current security status, problems with detectors or breakdown of communication with the hub. If an intruder tries to enter the code, a hidden alarm signal can be sent to the Central Monitoring Station. The keypad is blocked automatically if the incorrect code is entered too many times.

- Bus connection with 4-core cable, up to 2000 meters (when using twisted pair U/UTP CAT5)
- Activate the full security mode by pressing one button
- Duress code to raise a silent alarm if forced to enter the code by an intruder



Technical Specifications
Classification Touch keypad
Installation method Indoors
Compatibility Operates with Hub Hybrid (2G) and Hub Hybrid (4G) only
Duress code Yes
Protection against password attack/guessing Yes
Arming/disarming indication Yes
Codes 50 personal codes (one per each user), 1 general code (one per KeyPad Fibra)
Adjustable brightness and volume Brightness - 5 levels (0 - backlight is off, 5 - very bright)
Volume - 14 levels (0 - the sound of pressing is disabled,, 5 - very loud sound)
Fibra technology Recommended cable type for detector connection: Signal cable (4 x 0.22 copper) / Twisted pair U/UTP CAT5 (4 x 2 x 0.51)
Connection wire length: Up to 2000m
Device polling period: 12−300 s
Power supply Power supply voltage: 24V
Power consumption: up to 400 μA
Permissible humidity Up to 75%
Operating temperature range -10°С to +40°С
Anti-sabotage Protection against fraud
Tamper-resistant
Code guessing protection
Dimensions 150mm х 103mm x 19mm
Weight 148g
Certification EN 50131 (Grade 3), PD 6662:2017, IP50
