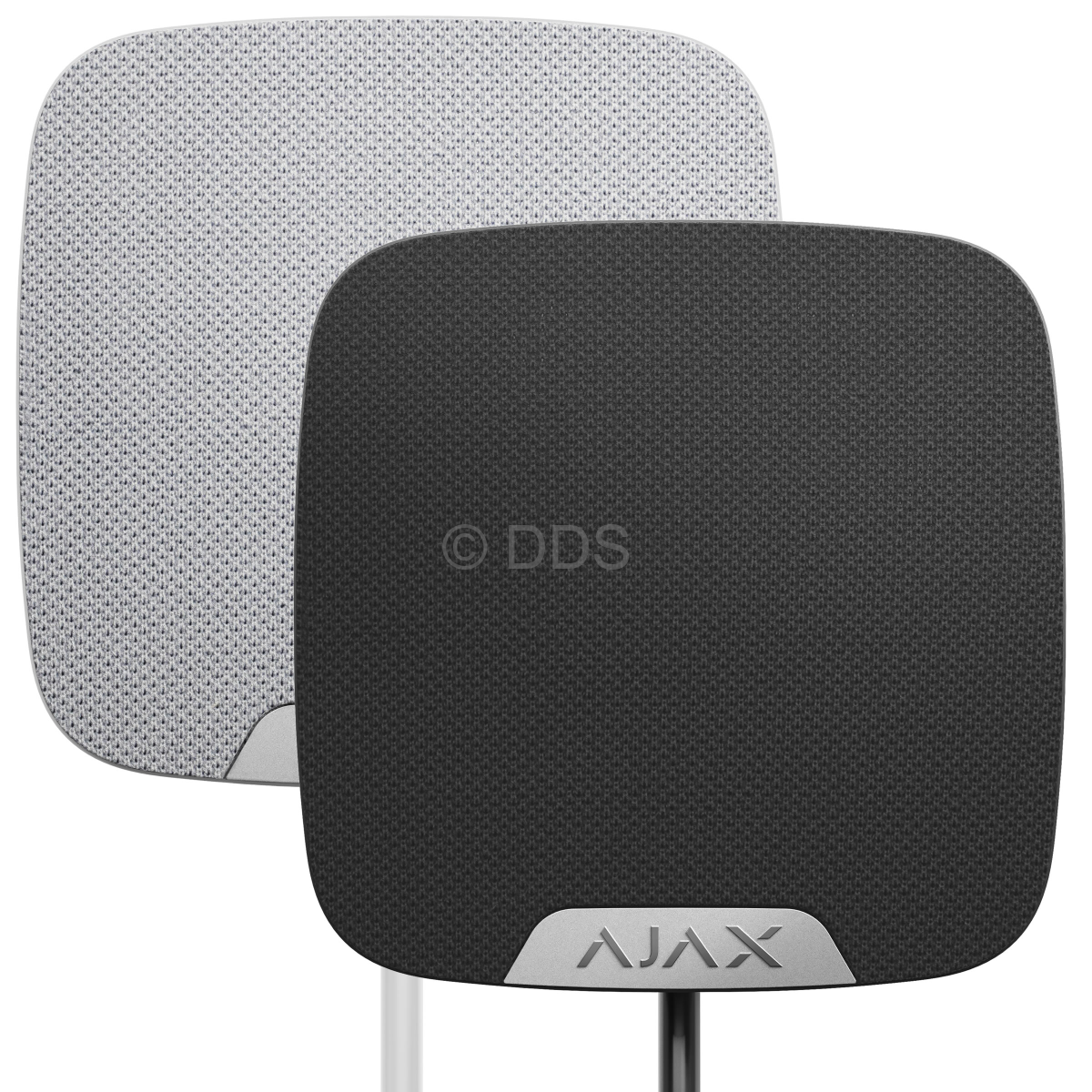

Indoor HomeSiren (Fibra)

Call us for a price

AJX-HSIREN-FIBRA(44399/46707)

Wired indoor siren that loudly notifies of an alarm during detector activation. It is installed indoors to warn of danger or deter intruders. Sound level and alarm length are set in the mobile application.

- Bus connection with 4-core cable, up to 2000 meters (when using twisted pair U/UTP CAT5)
- Indicates armed/disarmed state by means of a built-in LED
- External LED can be connected
- Sound level configurable from 81dB to 105 dB at a distance of 1 m
- Alarm length configurable from 3s to 180s



Technical Specifications
Classification Security sounder
Installation method Indoors
Compatibility Operates with Hub Hybrid (2G) and Hub Hybrid (4G) only
Type of notification Sound, light
Indication of armed/disarmed status Yes
Sound volume level Adjustable, 81-105 dB at a distance of 1 m
Alarm length Adjustable, 3−180 s
Additional connector For an external LED which works in parallel with the LED built into the siren and fully replicates its indication (3V)
Fibra technology Recommended cable type for detector connection: Signal cable (4 x 0.22 copper) / Twisted pair U/UTP CAT5 (4 x 2 x 0.51)
Connection wire length: Up to 2000m
Device polling period: 12−300 s
Power supply Power supply voltage: 24V
Power consumption: up to 50 μA
Permissible humidity Up to 75%
Operating temperature range -10°С to +40°С
Anti-sabotage Protection against fraud
Tamper-resistant
Dimensions 90.5mm х 90.5mm x 33mm
Weight 84g
Certification EN 50131 (Grade 3), PD 6662:2017, IP50
