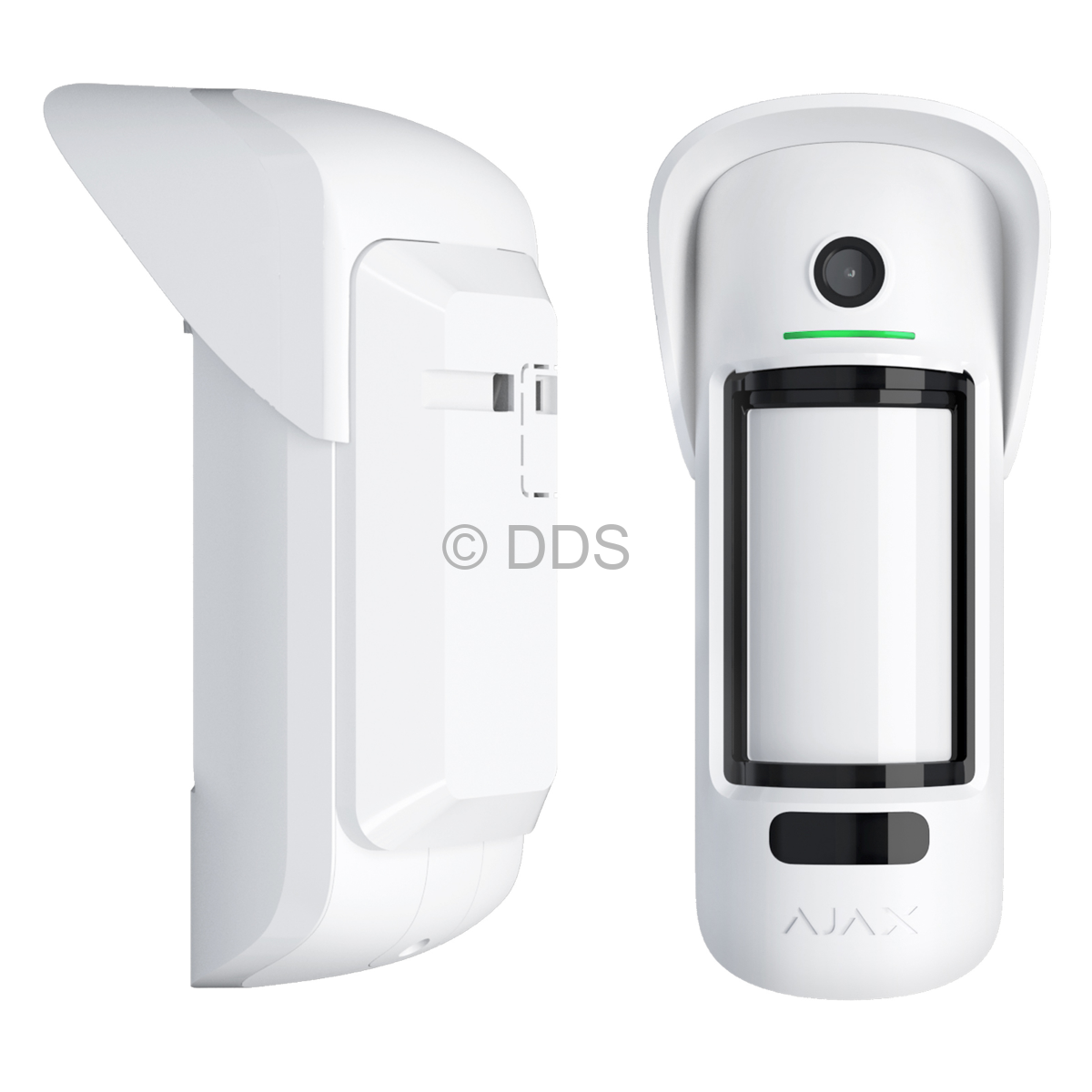

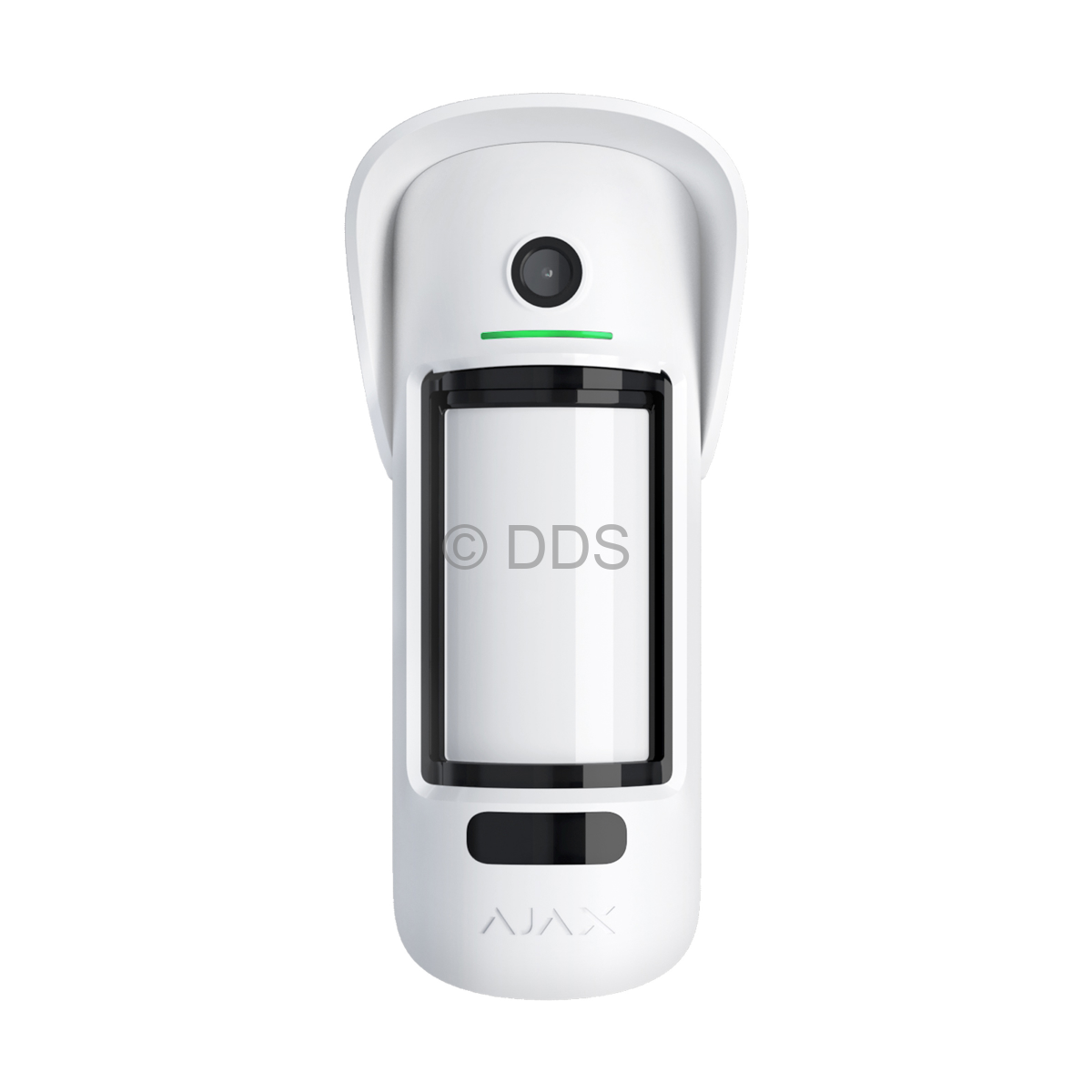

MotionCam Outdoor Detector (PhOD)

Home/Ajax Alarms/Ajax Detectors/MotionCam Outdoor Detector (PhOD)

10 of 14

Save
100%

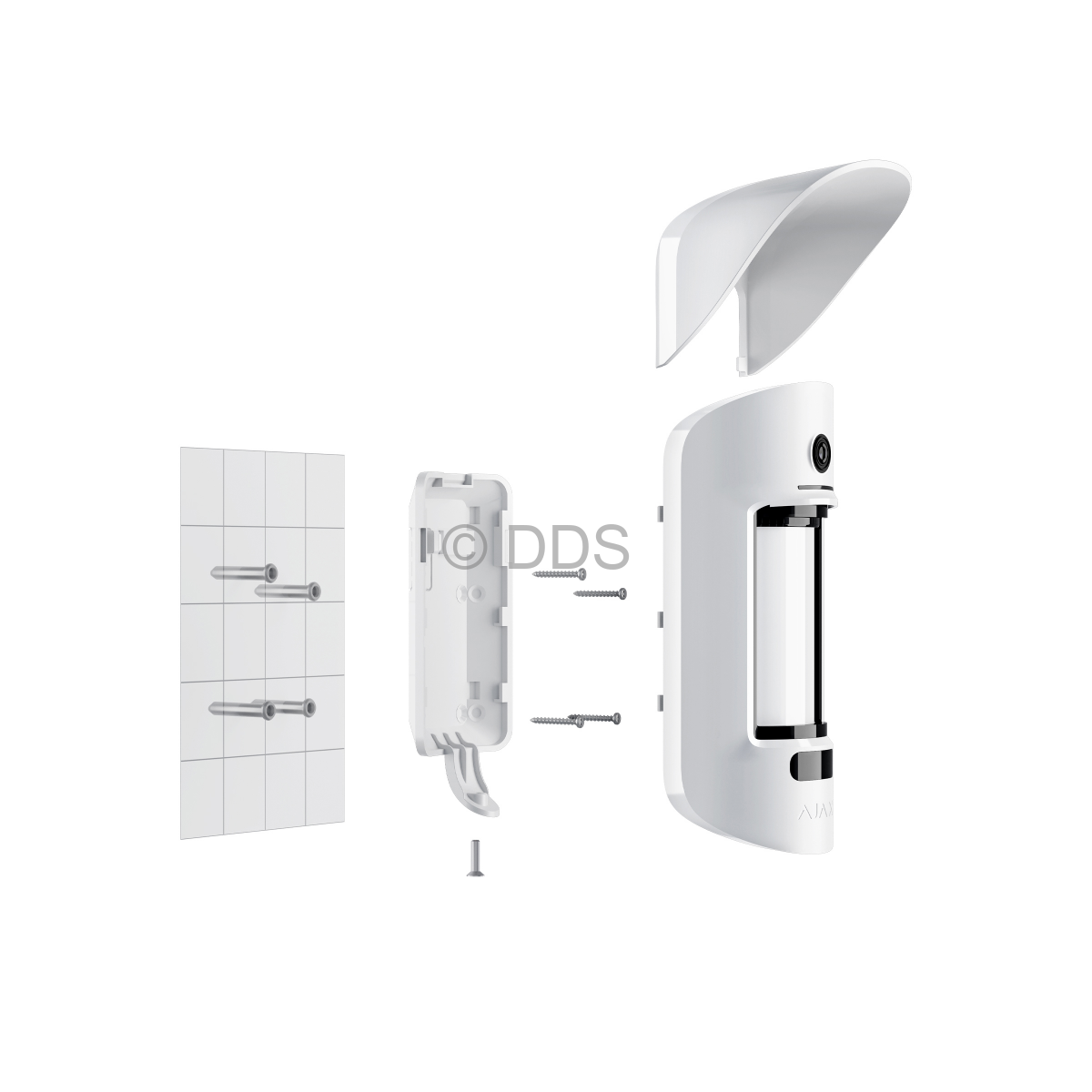

Installation of the Ajax MotionCam Outdoor Detector

Call us for a price

Order Code: AJX-MCAM-OUT-PHOD(36662)

Description

Wireless motion detector with a built-in camera, that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. It transmits a photograph in under 9 seconds, and can see in the dark using its built-in infrared. MotionCam Outdoor PhOD can take a series of photos by request of the user from the Ajax mobile app, regardless of the security mode. Requires Hub 2 or Hub 2 Plus for operation.

- Takes series of photos by alarm or on demand (requested in the app)
- Ignores cats and dogs with a height of up to 80 cm
- Alarm signal delivery time of 0.15 s, photo delivery time of <9 s
- Maximum detection distance of 15m
- Accurately detects motion in heat conditions, even at a temperature of +40°С
- Operates up to 3 years without battery replacement
- Hood included

Technical Specifications
Classification	Electro-optical radio channel security detector
Installation method	Outdoors and Indoors
Compatibility	Operates with Hub 2, Hub 2 Plus and ReX 2 only
Sensing element	2 x PIR sensor
Alarm signal delivery time	0.15s
Motion detection distance	Adjustable, from 3 to 15 m
Motion detector’s viewing angle	Horizontal: 90° Vertical: N/A
Camera view angle	Horizontal: 105° Vertical: 50°
Pet immunity	Height: up to 80 cm
Photo verification	Photo by alarm - built-in camera is activated if the detector is armed, and motion is detected Photo on demand - user takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default. Photo by scenario - built-in camera takes pictures automatically when a scenario is triggered. The feature is disabled by default. Time to deliver a photograph with default settings: up to 9 sec Resolution: 320 x 176 (default), 640 x 352 Pictures in series: 1-5
IR backlight for night mode pictures	Available
Jeweller radio technology	Communication range with central unit: up to 1,700 m in an open space Two-way communication between devices Operating frequencies: 868.0—868.6 MHz Self-adjusting RF output power: up to 20 mW Block encryption based on AES algorithm Device polling period: 12−300 s
Power supply	Battery: CR123A battery (x4) Power supply voltage: 3 V Battery life: up to 3 years
Operating humidity	Up to 95%
Operating temperature range	-25°С to +60°С
Anti-sabotage	Anti-masking Protection against fraud Jamming detection Tamper-resistant
Dimensions	206mm х 108mm x 93mm
Weight	470g
Certification	Grade 2 EN50131, CE, IP55, PD6662:2017
