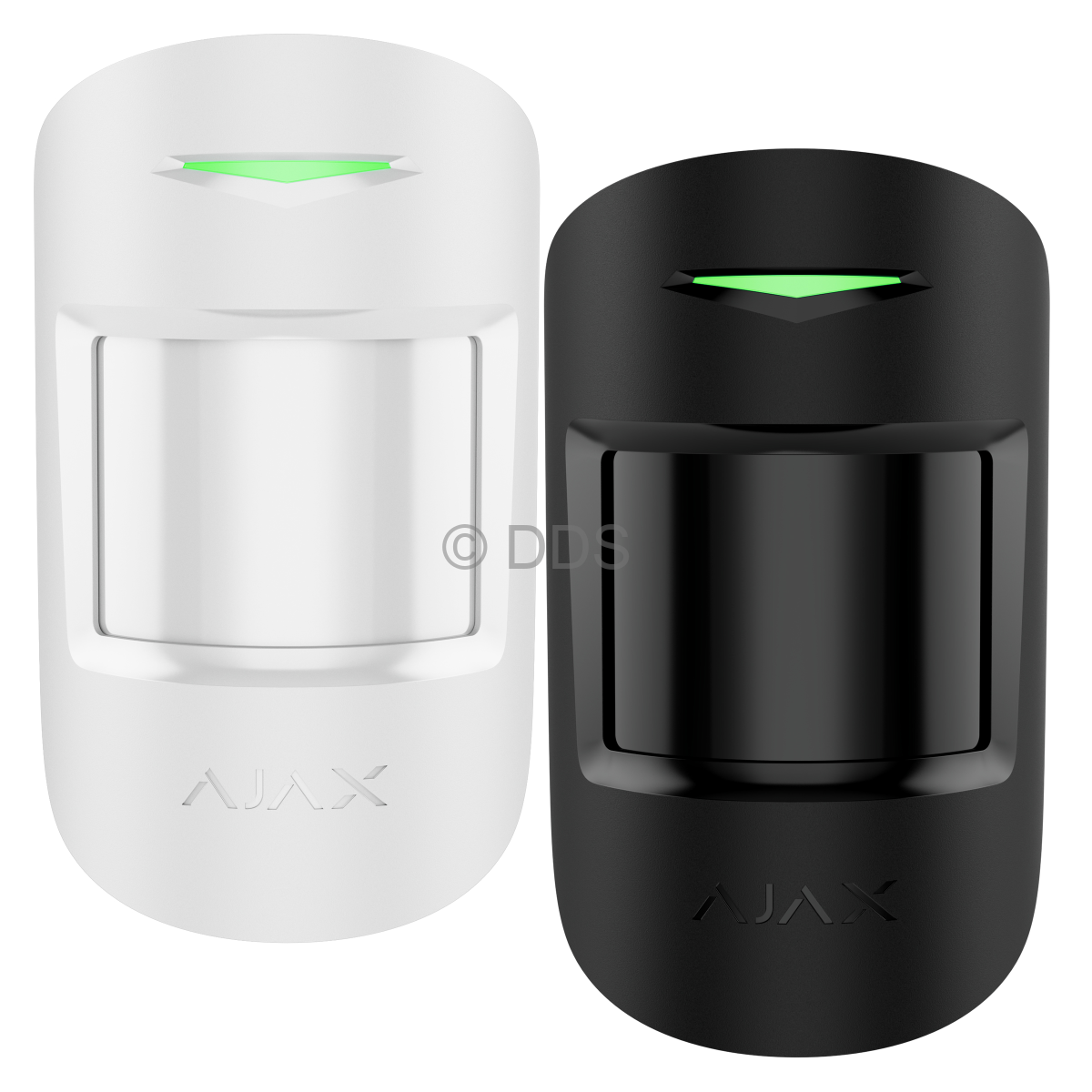

MotionProtect U Detector
Save
100%
100%
MotionProtect U Jeweller is a version of Ajax’s well-known motion detector, refined to meet strict UK standards. It was developed to deliver exceptional detection reliability, crucial for any security system. Advanced hardware and software algorithms ensure false alarms are nearly eliminated. The sleek and modern design fits perfectly into any interior style. Thanks to the wireless connection and the convenient SmartBracket mounting panel, installation is quick and hassle-free. With the remote configuration feature, installers do not need to visit the site to change the device settings.
- Ignores cats and dogs with a weight of up to 20 kg and height of up to 50 cm
- Alarm signal delivery time of 0.15 s
- Maximum detection distance of 12m
- Accurately detects motion in heat conditions, even at a temperature of +40°С
- Operates up to 5 years without battery replacement
- Vertical detection: 80°
- Horizontal detection: 88.5°
| Technical Specifications | |
| Classification | Electro-optical combined radio channel security detector |
| Installation method | Indoors |
| Compatibility | Operates with all hubs and range extenders |
| Sensing element | PIR sensor |
| Alarm signal delivery time | 0.15s |
| Motion detection distance | Up to 12m |
| Detection angles | Horizontal: 88.5° Vertical: 80° |
| Recommended installation height | 2.4m |
| Pet immunity | Weight: up to 20 kg Height: up to 50 cm |
| Jeweller radio technology | Communication range with central unit: up to 1,700 m in an open space Two-way communication between devices Operating frequencies: 868.0—868.6 MHz Self-adjusting RF output power: up to 20 mW Block encryption based on AES algorithm Device polling period: 12−300 s |
| Power supply | Battery: CR123A battery Power supply voltage: 3 V Battery life: up to 5 years |
| Permissible humidity | Up to 75% |
| Operating temperature range | -10°С to +40°С |
| Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant Holding screw |
| Dimensions | 110mm х 65mm × 50mm |
| Weight | White device: 96g Black device: 88g |
| Protection | IP50, IK04 |
| Certification | Grade 2, PD6662:2017 |
