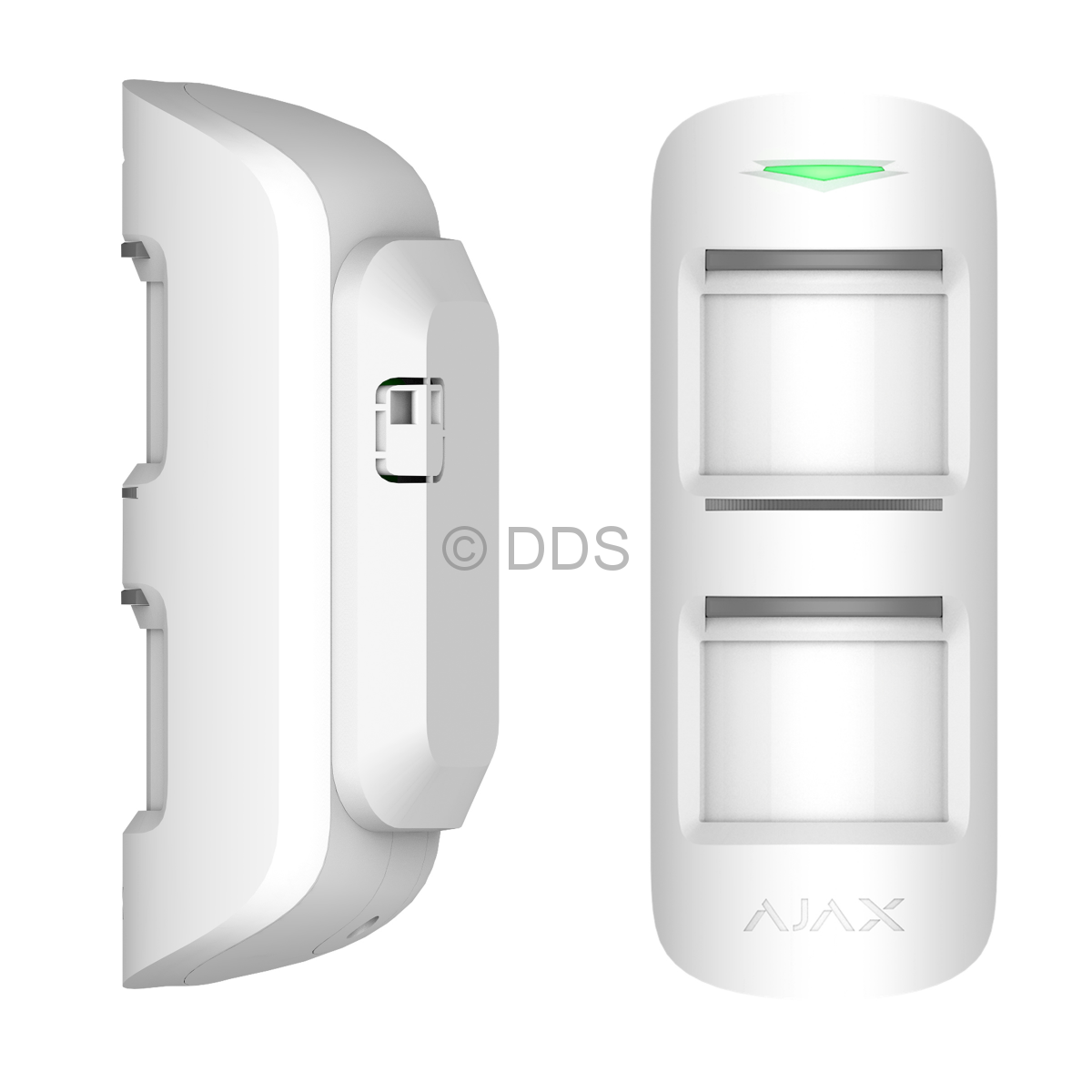

MotionProtect Outdoor Detector

Call us for a price

AJX-MP-OUT(12895)

The MotionProtect Outdoor features the maximum possible protection for outdoor detectors. The anti-masking function, which in on around the clock by default, detects installation of barriers, pasting over, application of paint or transparent coating on one or two lenses. The integrated tamper alarms if the dust and moisture-proof detector body is opened.

- Ignores pets with a height of up to 80 cm
- Alarm signal delivery time of 0.15 s
- Detects movement at a distance up to 3–15 meters
- Operates up to 5 years without battery replacement
- Horizontal detection: 90°
- IP54 rated



Technical Specifications
Classification Electro-optical radio channel security detector
Installation method Indoors/Outdoors
Compatibility Operates with Hub, Hub Plus, Hub 2, and ReX
Sensing element Two PIR sensors
Alarm signal delivery time 0.15s
Motion detection distance Adjustable, up to 3-15 m
Detection angles Horizontal: 90°
Recommended installation height 0.8-1.3 m
Pet immunity Weight: not relevant
Height: up to 80cm
Jeweller radio technology Communication range with central unit: up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies: 868.0 - 868.6 MHz
Self-adjusting RF output power: up to 20 mW
Block encryption based on AES algorithm
Device polling period: 12−300 s
Power supply Power supply: 2 x CR123A battery
Power supply voltage: 3 V
Battery life: up to 5 years
Mains supply: DC 12 V±20%
Permissible humidity Up to 95%
Operating temperature range -25°С to +40°С
Anti-sabotage Grade 3 anti-masking
Protection against fraud
Jamming detection
Tamper-resistant
Dimensions 183mm х 70mm × 65mm
Weight 322g
Certification Grade 2 (EN 50131), CE, IP54
