MotionCam Outdoor Detector

Call us for a price

AJX-MCAM-OUT(26102)

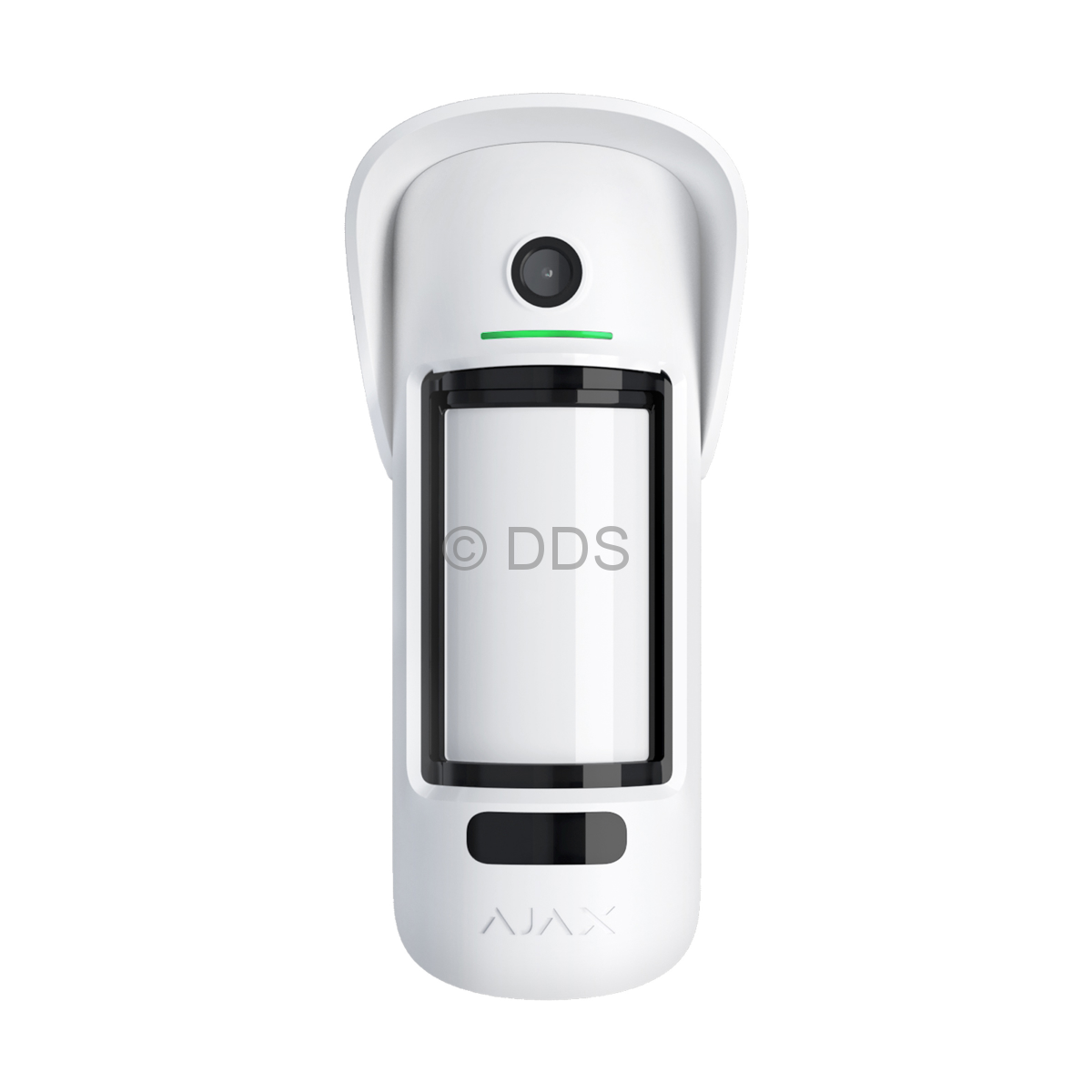

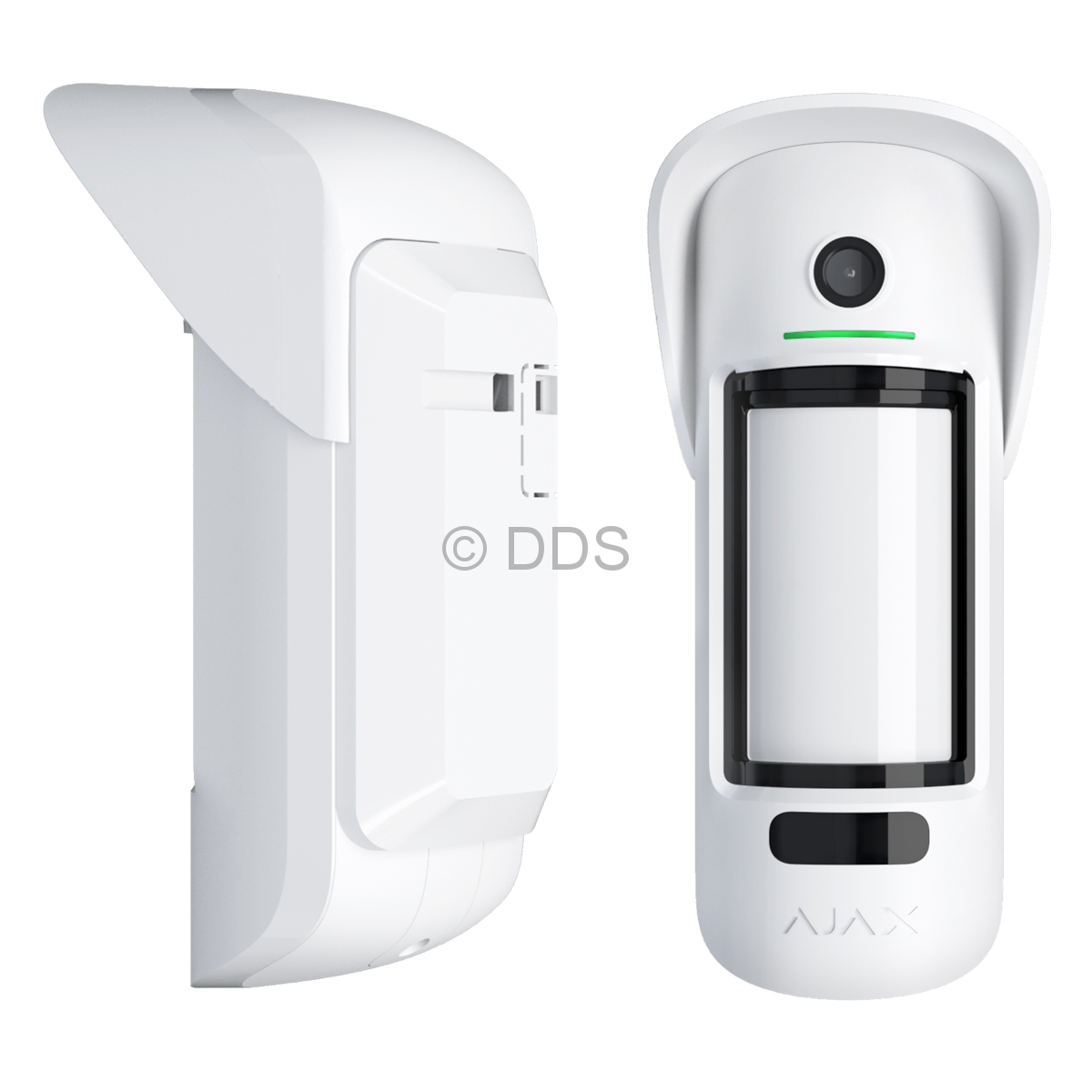

Wireless motion detector with a built-in camera, that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. It transmits a photograph in under 9 seconds, and can see in the dark using its built-in infrared. Requires Hub 2 or Hub 2 Plus for operation.

- Ignores cats and dogs with a height of up to 80 cm
- Alarm signal delivery time of 0.15 s, photo delivery time of <9 s
- Maximum detection distance of 15m
- Accurately detects motion in heat conditions, even at a temperature of +40°С
- Operates up to 3 years without battery replacement

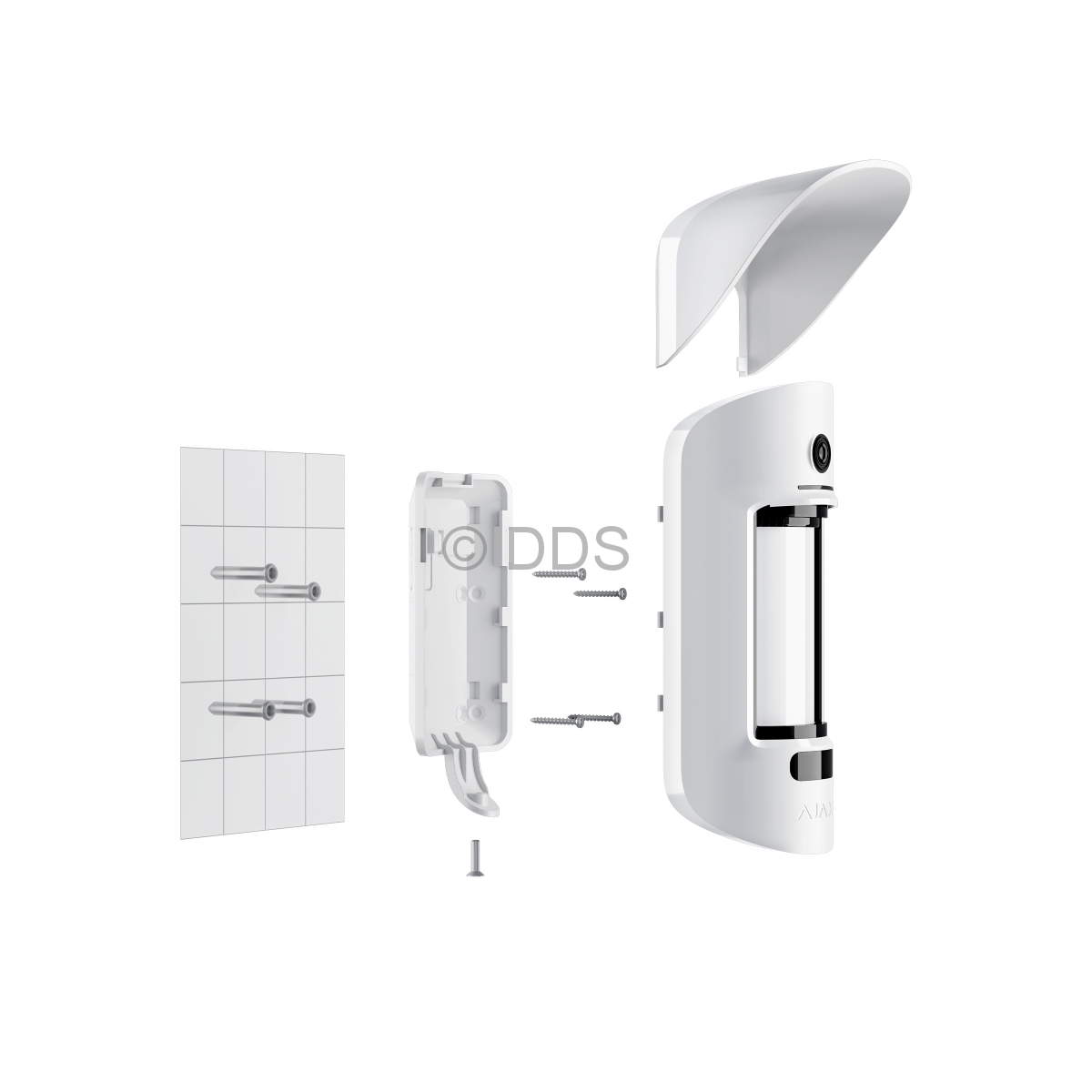

- Hood included




Technical Specifications
Classification Electro-optical radio channel security detector
Installation method Outdoors and Indoors
Compatibility Operates with Hub 2, Hub 2 Plus and ReX 2 only
Sensing element 2 x PIR sensor
Alarm signal delivery time 0.15s
Motion detection distance Adjustable, from 3 to 15 m
Motion detector’s viewing angle Horizontal: 88.5°
Vertical: 80°
Camera view angle Horizontal: 105°
Vertical: 102°
Pet immunity Height: up to 80 cm
Photo verification Time to deliver a photograph with default settings: up to 9 sec
Resolution: 320 x 176 (default), 640 x 352
Pictures in series: 1-5
IR backlight for night mode pictures Available
Jeweller radio technology Communication range with central unit:  up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies: 868.0—868.6 MHz
Self-adjusting RF output power: up to 20 mW
Block encryption based on AES algorithm
Device polling period: 12−300 s
Power supply Battery: CR123A battery (x4)
Power supply voltage: 3 V
Battery life: up to 3 years
Operating humidity Up to 95%
Operating temperature range -25°С to +60°С
Anti-sabotage Anti-masking
Protection against fraud
Jamming detection
Tamper-resistant
Dimensions 206mm х 108mm x 93mm
Weight 470g
Certification Grade 2 EN50131, CE, IP55, PD6662:2017
