MotionCam Detector (PhOD)

Call us for a price

AJX-MCAM-PHOD(36491)

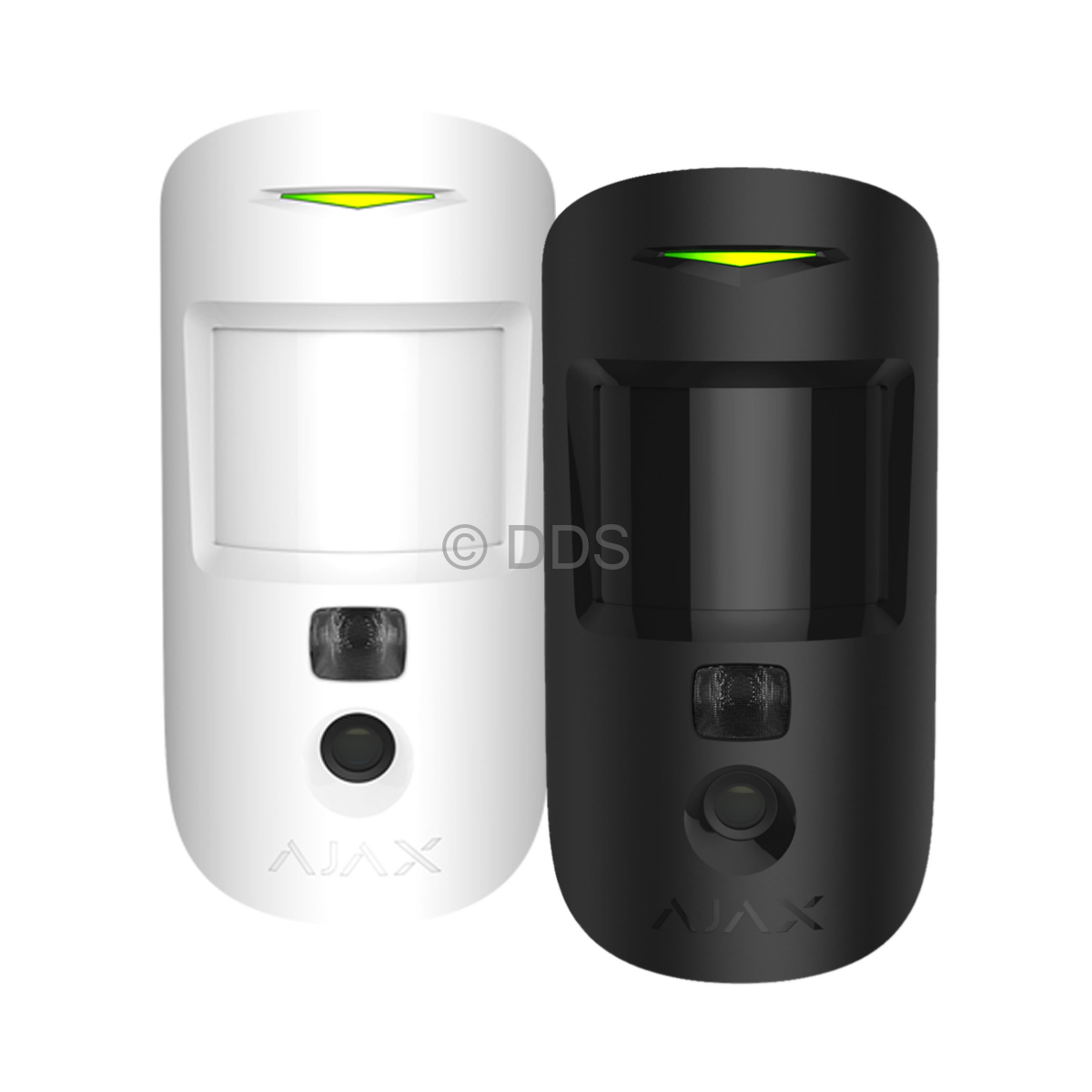

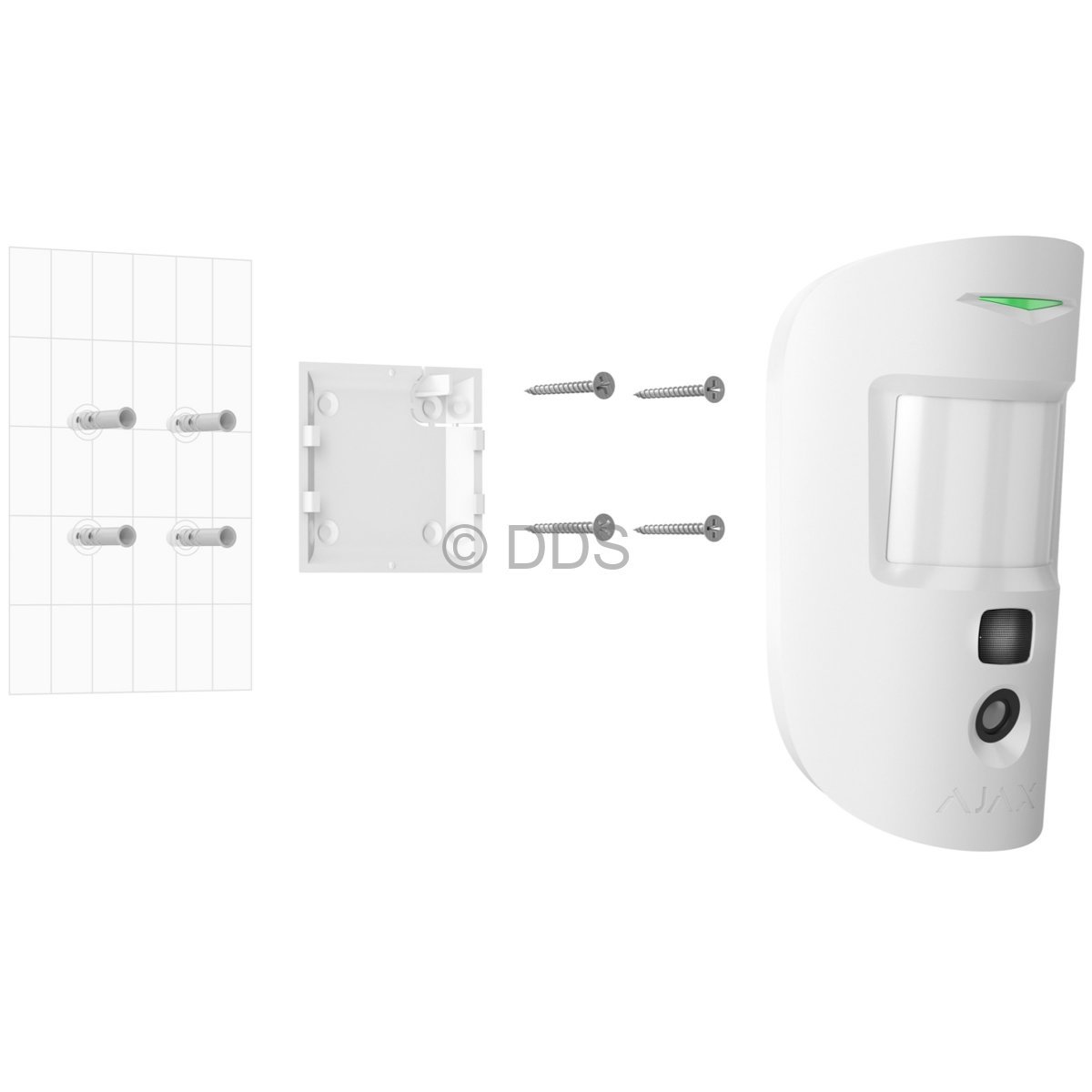

Wireless motion detector with built-in camera, that notifies the owner of the first signs of home or office intrusion. The detector is fastened to the wall in front of the doors and other places likely of intruder entry. It transmits a photograph in under 9 sec, and can see in the dark using it's built-in infrared. Requires Hub 2 for operation

- Ignores cats and dogs with a weight of up to 20 kg and height of up to 50 cm
- Alarm signal delivery time of 0.15 s, photo delivery time of <9 s
- Maximum detection distance of 12m
- Accurately detects motion in heat conditions, even at a temperature of +40°С
- Operates up to 4 years without battery replacement
- Vertical detection: 80°
- Horizontal detection: 88.5°



Technical Specifications
Classification Electro-optical combined radio channel security detector with a photo camera
Installation method Indoors
Compatibility Operates with Hub 2, Hub 2 Plus and ReX 2 only
Sensing element PIR sensor
Alarm signal delivery time 0.15s
Motion detection distance Up to 12m
Detection angles Horizontal: 88.5°
Vertical:  80°
Camera view angle 90°
Pet immunity Weight: up to 20 kg
Height: up to 50 cm
Photo verification Photo by alarm - built-in camera is activated if the detector is armed, and motion is detected
Photo on demand - user takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default.
Photo by scenario - built-in camera takes pictures automatically when a scenario is triggered. The feature is disabled by default.
Time to deliver a photograph with default settings: up to 9 sec
Resolution: 640 x 480px, 320 x 240px (default), 160 x 120 px
Pictures in series: 1-5
IR backlight for night mode pictures Available
Jeweller radio technology Communication range with central unit:  up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies: 868.0—868.6 MHz
Self-adjusting RF output power: up to 20 mW
Block encryption based on AES algorithm
Device polling period: 12−300 s
Power supply Battery: CR123A battery (x2)
Power supply voltage: 3 V
Battery life: up to 4 years
Permissible humidity Up to 75%
Operating temperature range +5°С to +40°С
Anti-sabotage Protection against fraud
Jamming detection
Tamper-resistant
Dimensions 135mm х 70mm × 60mm
Weight 168g
Certification Grade 2, CE, IP50
