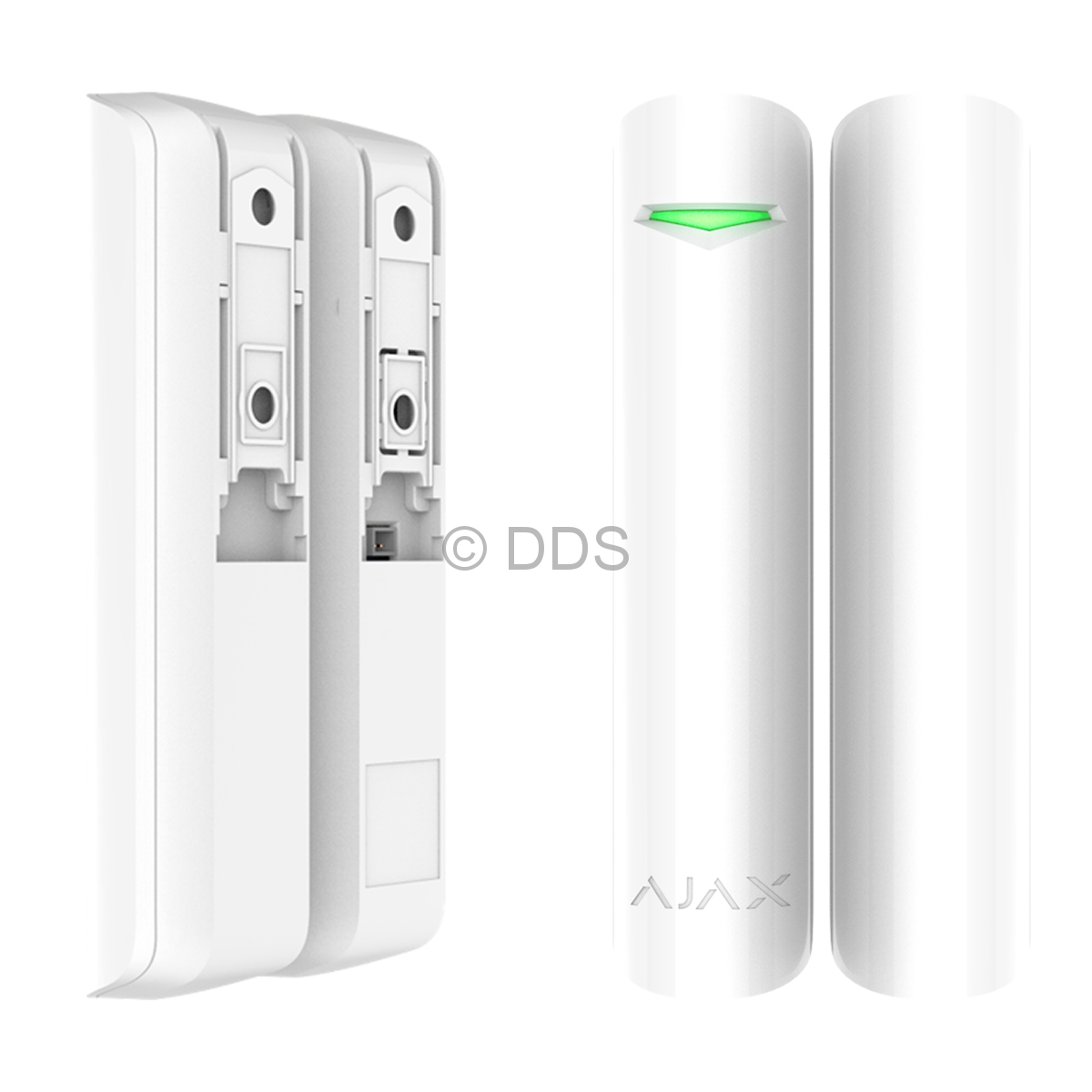

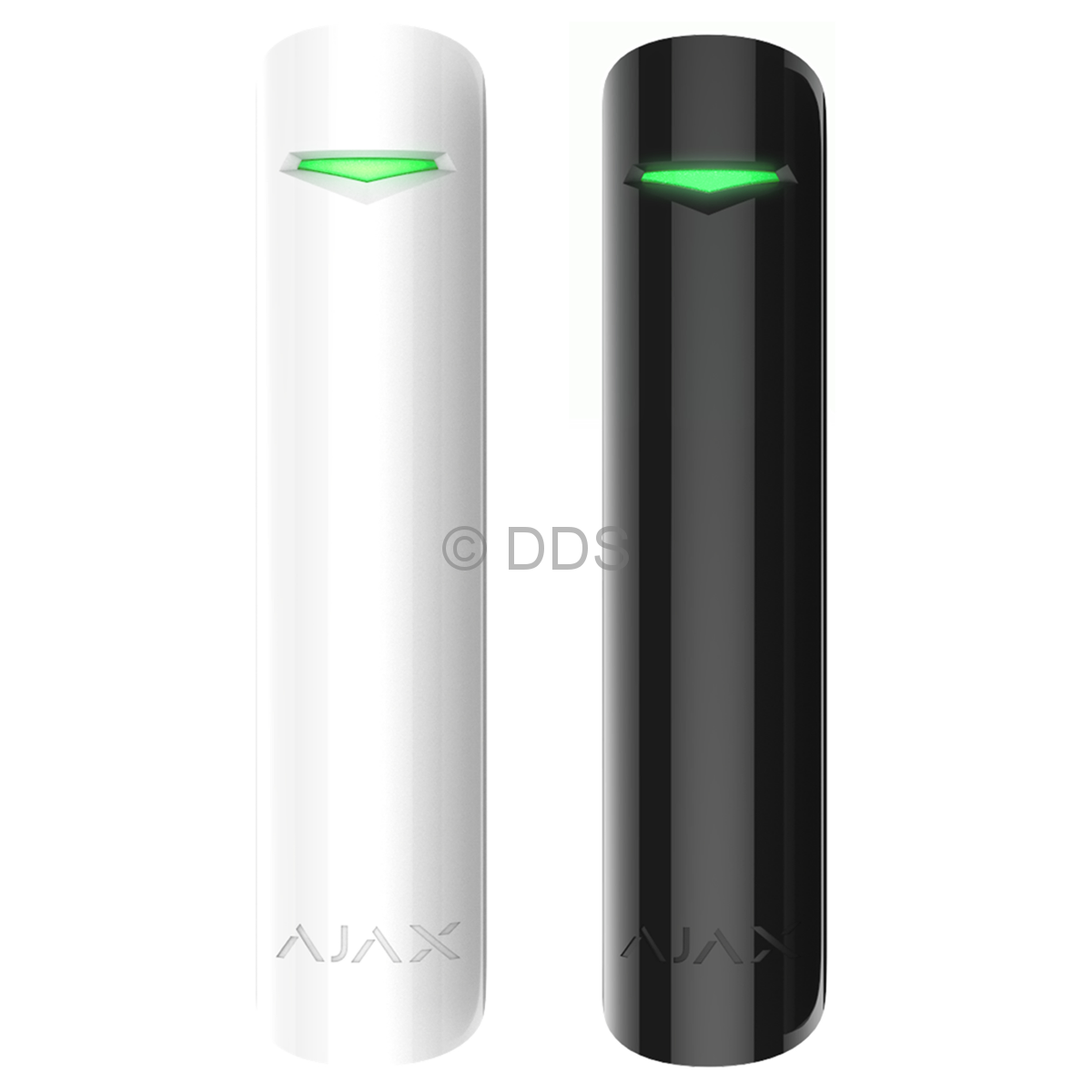

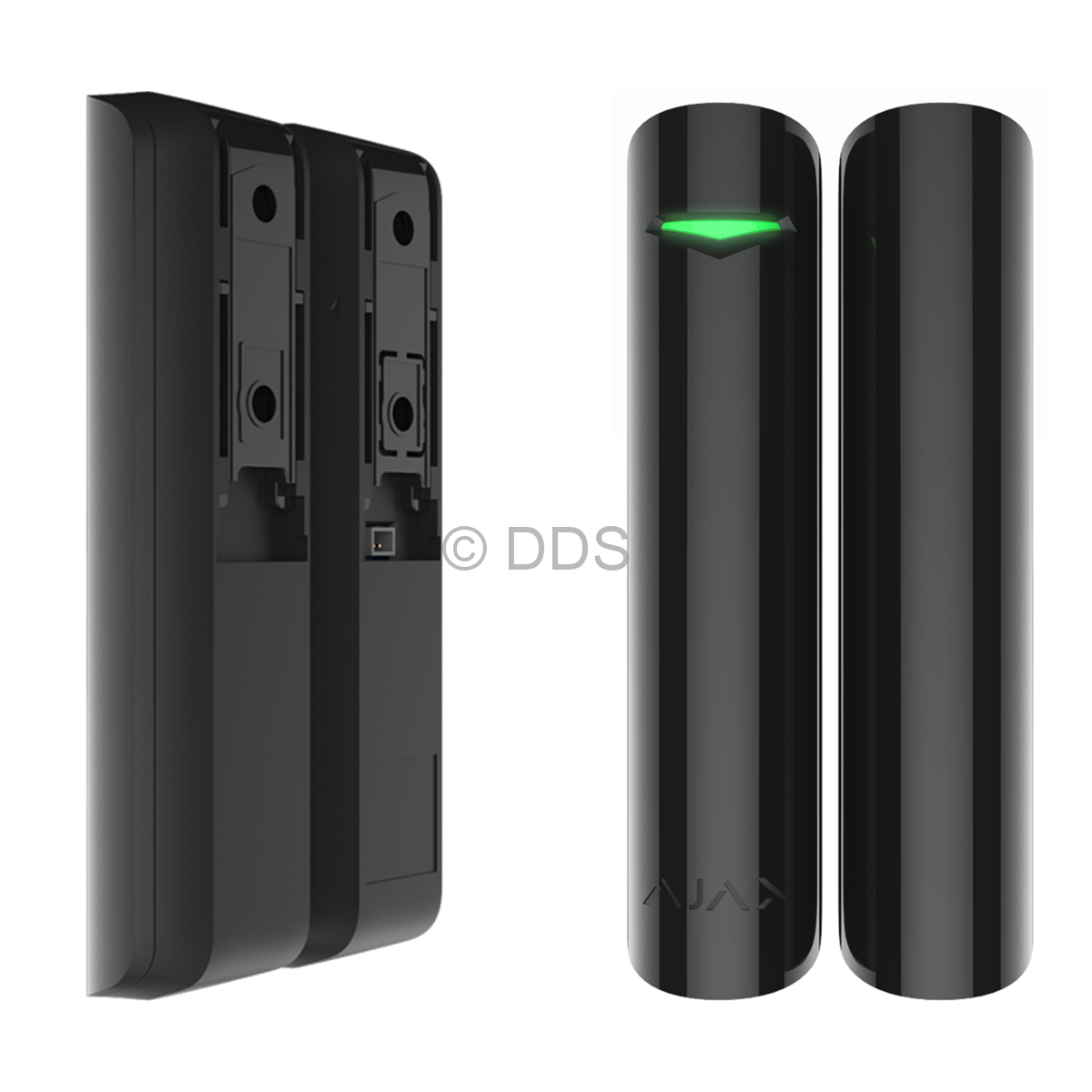

DoorProtect Plus Detector

Call us for a price

AJX-DP+(9999/22978)

Wireless opening detector that notifies of first signs of room intrusion by means of a broken door or window. It can be mounted on all types of doors including a metal base. The device detects the door or window being opened by means of British-made hi-end reed switches on which the magnetic field acts. It can operate in the transmitter mode, sending a signal from the wired sensor to the hub. The device protects even windows left open for ventilation. The accelerometer registers changes in vertical slope angle, bangs or vibration and sends an alarm to the hub.

- Reed switch and accelerometer sensing element
- Alarm signal delivery time of 0.15 s
- Operates up to 5 years without battery replacement




Technical Specifications
Classification Combined point magnetic contact and vibration radio channel security detector
Installation method Indoors
Compatibility Operates with Hub, Hub Plus, Hub 2, and ReX
Sensing element Reed switch, accelerometer
Alarm signal delivery time 0.15s
Activation threshold Small magnet: 1 cm
Big magnet: 2 cm
Jeweller radio technology Communication range with central unit: up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies: 868.0 - 868.6 MHz
Self-adjusting RF output power: up to 20 mW
Block encryption based on AES algorithm
Device polling period: 12−300 s
Power supply Battery: CR123A battery
Power supply voltage: 3 V
Battery life: up to 5 years
Permissible humidity Up to 75%
Operating temperature range +5°С to +40°С
Anti-sabotage Protection against fraud
Jamming detection
Tamper-resistant
Dimensions 90mm х 20mm × 25mm
Weight 29g
Certification Grade 2 (EN 50131), CE
