Dual-Lens PTZ Camera (4x Optical, LightHunter, Smart)

Call us for a price

IPC9312LFW-AF28-2X4

Part of the Uniview LightHunter range, this dual-lens IP camera has a 2.8mm fixed lens for panoramic view AND a PTZ with auto-focusing 4x optical zoom. It has up to 50m IR range and 10m of White Light range; as well as 2 microphones and a high-power speaker for two-way audio. It also features the LightHunter chipset, allowing for full colour at night. Each camera requires a separate channel on the NVR.

- Active Deterrence
- Up to 10m White Light range
- Play pre-recorded messages
- Two-way audio (built-in microphones and speaker
- Resolution 2MP (1920 x 1080), POE
- PTZ - Motorised 2.8-12mm Lens, Angles 106.6° ~ 30.6° (H) | Panoramic - Fixed 2.8mm Lens, Angle 102.4° (H)
- PTZ - 4x Optical Zoom
- PTZ - Smart IR, Up To 50m IR Range and 10m White Light Range | Panoramic - Smart IR, Up To 10m IR Range
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265 or Ultra 265
- MicroSD Card Slot (see Special Features)
- VCA - Line Crossing, Intrusion Detection (see Special Features)
- ONVIF Compliance (Profile S and Profile G)
- Temperature Range -40°C to 65°C
- Wide voltage range of ±25%
- Metal Housing, IP66 Rated
- Built-in Ceiling/Wall Mount
- 2kV surge protection

Camera

Image Sensor:
LightHunter CMOS (1/2.8")
Resolution:
2MP
Effective Pixels (H x V):
1920 x 1080
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1/1~1/100000s
Signal-to-noise Ratio:
>52dB
Iris:
Fixed F1.6
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
PTZ: dWDR | Panoramic: 120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
PTZ: Motorised 2.8-12mm, 4x Optical | Panoramic: Fixed 2.8mm
Field of View:
PTZ: 106.6° ~ 30.6° | Panoramic: 102.4°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB

Pan & Tilt

Pan Range:
0° ~ 345°
Pan Speed:
1°/s ~ 40°/s (Preset speed: 40°/s)
Tilt Range:
-10° ~ 100° (auto reverse)
Tilt Speed:
1° ~ 50°/s (Preset speed: 50°/s)
Number of Presets:
255
Patrol:
Preset patrol

Day/Night

Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.002Lux, 0Lux with IR on
IR Range:
PTZ: 45-50m | Panoramic: 8-10m
IR Control:
CDS Auto
White Light Range:
PTZ: 8-10m

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile S, Profile G)
POE:
Yes (30W POE injector required)
Main Stream:
1920x1080@25fps
Sub Stream:
1280x720@25fps

General

Power:
12V DC (+/- 25%) / PoE+(IEEE 802.3at)
Housing:
Metal
Power Consumption:
Max 16W
Operating Temperature:
-20°C ~ +60°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP66
Approvals:
CE / FCC
Weight:
1.03kg

Interface

Built-in Microphone:
Yes, 2x
Built-in Speaker:
Yes, 1x
Reset Button:
Yes
PTZ Control:
Onvif

All dimensions are in millimetres (mm)

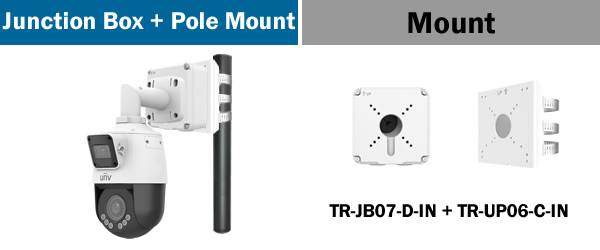

TR-JB07-D-IN

- Outdoor or indoor cable junction box for IPC222x/23xx/252x/26x and IPC74X series (Extra back outlet)
- 125mm x 125mm x 55mm
- Weight: 750g

Call us for a price £17.00 You save: £17.00
TR-UP06-C-IN

- External pole or rail mount for the IPC22xx and IPC232x series, and can be used with the TR-JB07-D-IN or TR-JB06-A-IN
- 127mm x 136mm x 62.5mm
- Weight: 340g

Call us for a price £17.00 You save: £17.00

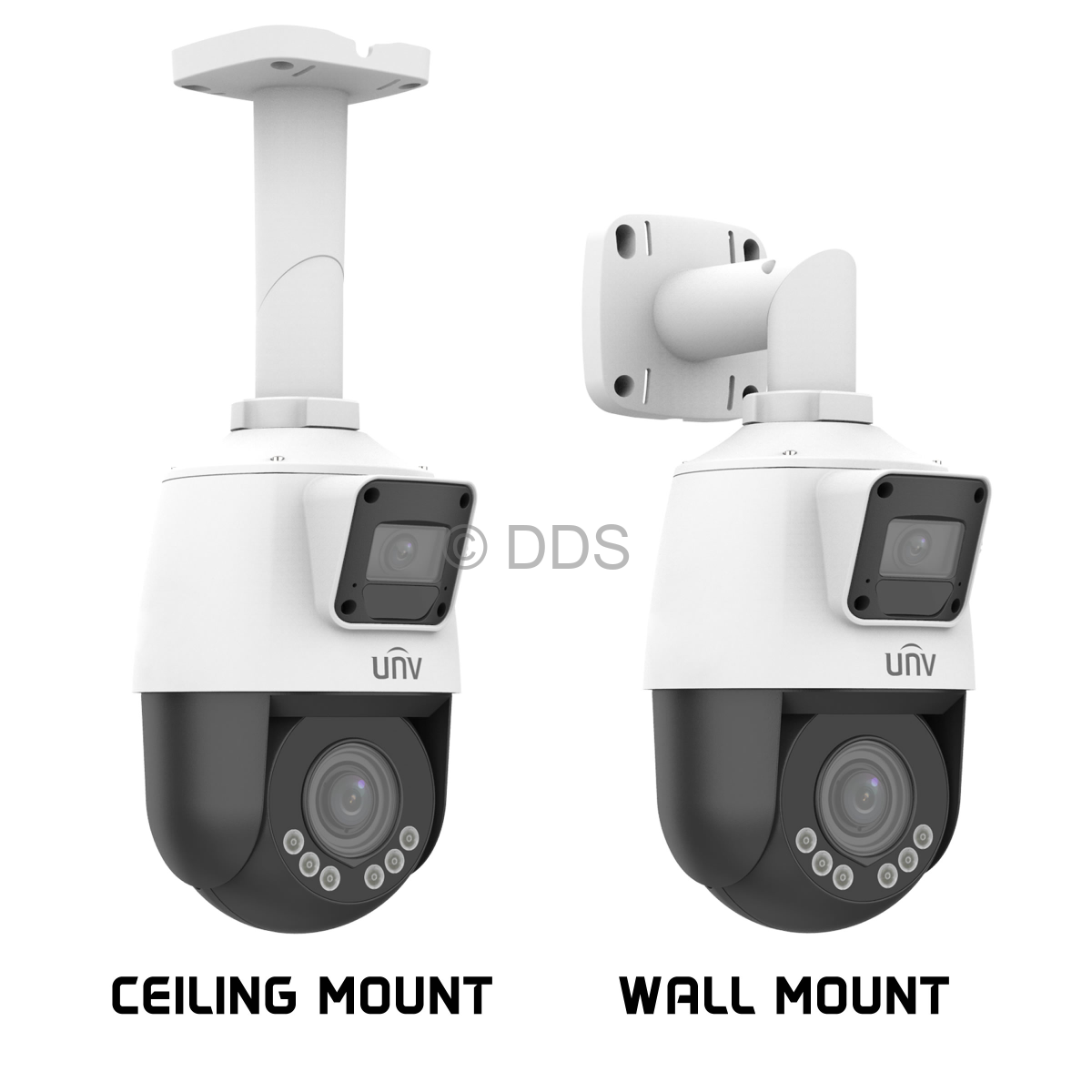

Different ways of mounting this camera:


This camera has the following special features:

Active Deterrence

This camera can prevent intruders using the built-in strobing siren, white light, speaker or a combination of all 3. Using human body detection, it will avoid any false triggers from other moving objects or animals.



ANR (Automatic Network Replenishment)

ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



LightHunter

LightHunter is the technology which allows for an outstanding image at super low illumination during the night for both static and moving scenes. This also means that the camera can display full colour at night. In technical terms, it enhances SN (signal-to-noise) by 17dB at 0.01 lux environment; this, in turn, increases both clarity and image colour at least 25% visually.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Enter Area - Entering into a pre-defined virtual region

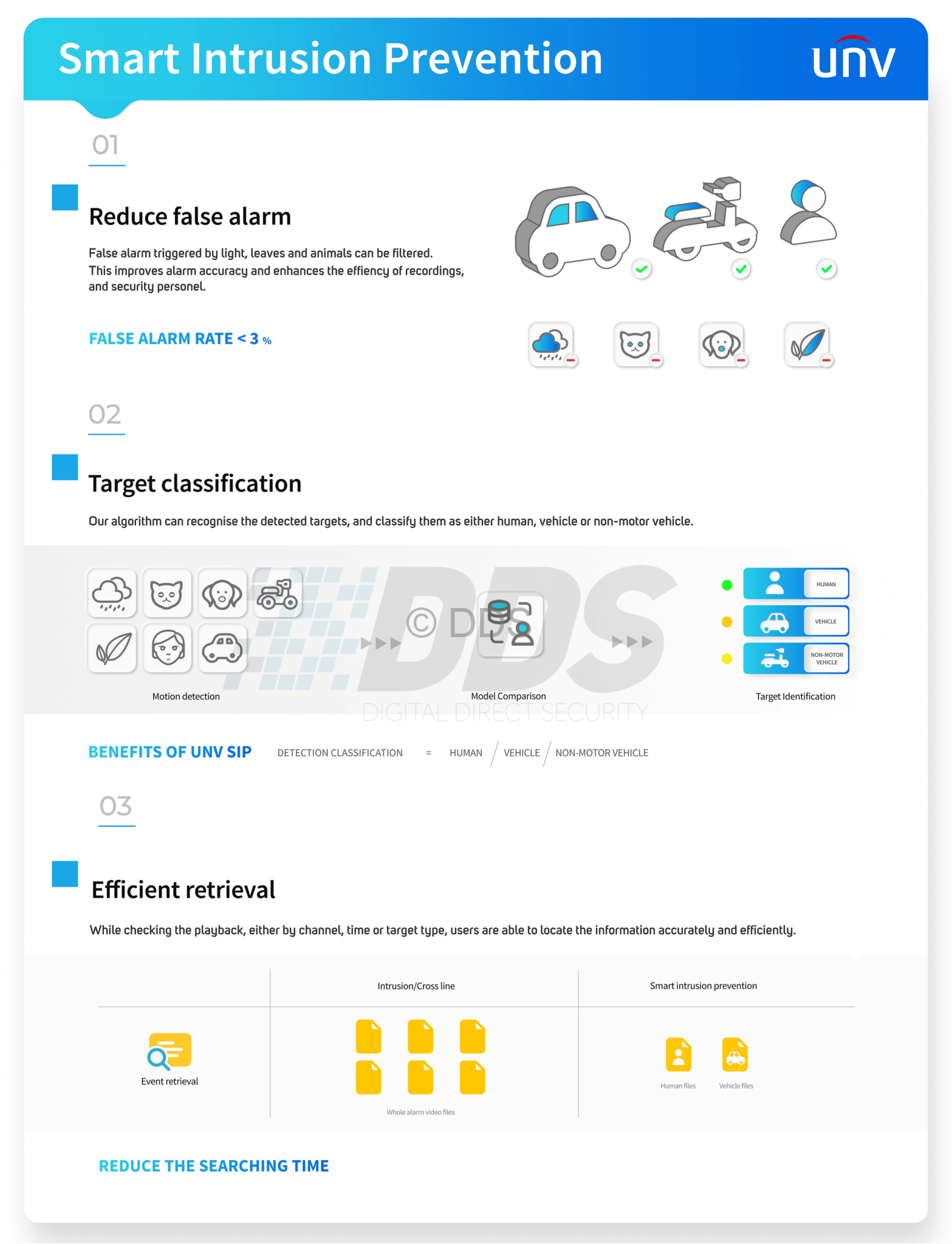

  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Leave Area - Leaving a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Linkage - If the panoramic camera is triggered, the PTZ will then auto-track the target
  • Motion Detection - Movement within a pre-defined virtual region
  • Tamper Identification - Detect when the camera has been physically tampered with
