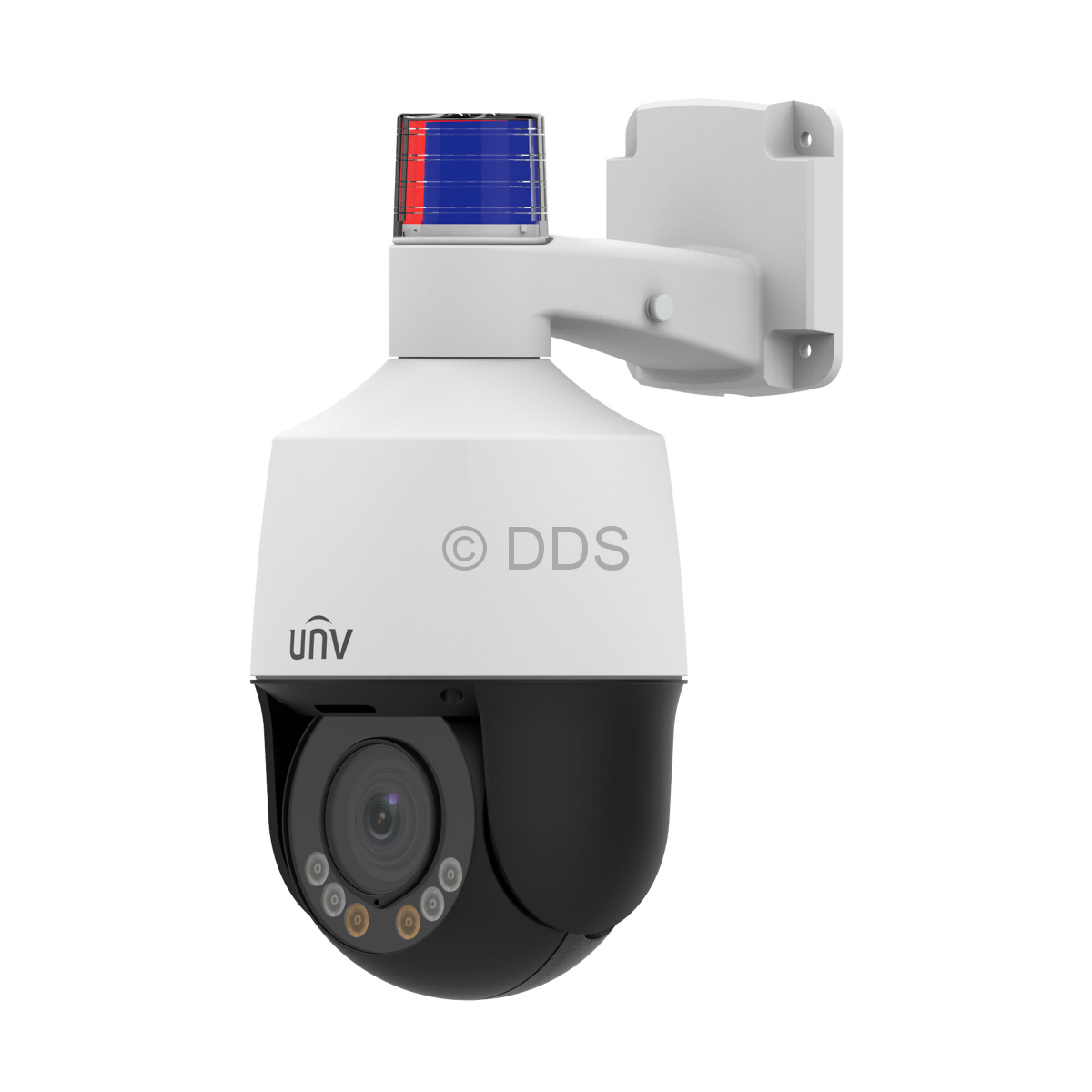

2MP Active Deterrence Mini PTZ (4x Optical, LightHunter, Auto-Tracking)

Call us for a price

IPC672LR-AX4DUPKC

Part of the UNV professional range, this mini IP PTZ camera has 2MP resolution with an auto-focusing 4x optical zoom lens. Supporting Ultra265 compression, up to 50m of IR range and up to 10m of White Light. It features active deterrence by using strobing light, white light and pre-recorded messages. When the white light illuminates the area, the camera will go into colour mode to provide a clearer image, thanks to the LightHunter chipset; after the deterrence event has finished, the camera will return to black and white.

 Alongside this, it also features a built-in speaker and microphone allowing for 2-way audio. It can also auto-track a person; using human body detection (this requires the camera to be in colour & light at night), to reduce false triggers from other moving objects or animals. Click on the Product Video tab to see the PTZ in action.

- Active Deterrence
- Red/blue strobing light
- Up to 10m White Light range
- Play pre-recorded messages
- Two-way audio (built-in microphone and speaker)
- Resolution 2MP (1920 x 1080), POE
- Motorised 2.8-12mm Lens, Angles 32.5° ~ 95.7° (H)
- Smart IR, Up To 50m IR Range
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265 or Ultra265
- Supports MicroSD card
- ONVIF Compliance (Profile G, S and T)
- Temperature Range -20°C to 60°C
- Wide voltage range of ±25%
- IP66 Rated
- 4kV surge protection
- Wall bracket included

Camera

Image Sensor:
LightHunter CMOS (1/2.8")
Resolution:
2MP
Effective Pixels (H x V):
1920 x 1080
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1/1~1/100000s
Signal-to-noise Ratio:
>52dB
Iris:
Auto
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Motorised 2.8-12mm, 4x Optical
Field of View:
95.7°~ 32.5°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 128GB

Pan & Tilt

Pan Range:
345°
Pan Speed:
0.1°/s ~ 50°/s (Preset speed: 50°/s)
Tilt Range:
90°
Tilt Speed:
0.1° ~ 40°/s (Preset speed: 40°/s)
Number of Presets:
256
Patrol:
Preset patrol, Route patrol

DORI

Detect:
43.4-186.2m
Observe:
17.4-74.5m
Recognise:
8.7-37.2m
Identify:
4.3-18.6m

Day/Night

Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.001Lux, 0Lux with IR on
IR Range:
45-50m
IR Control:
CDS Auto
White Light Range:
8-10m

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes (30W POE injector required)
Main Stream:
1920x1080@30fps
Sub Stream:
720x576@30fps

General

Power:
12V DC (+/- 25%)
Housing:
Metal
Power Consumption:
Max 16W
Operating Temperature:
-20°C ~ +65°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP66
Approvals:
CE / FCC / UL
Weight:
1.13kg

Interface

Built-in Microphone:
Yes
Built-in Speaker:
Yes
Reset Button:
Yes
PTZ Control:
Onvif

All dimensions are in millimetres (mm)

Dimensions of IPC672LR-AX4DUPKC

TR-JB06-A-IN

- Junction box for the IPC23xx cameras with square base
- Extra back outlet
- 104mm x 104mm x 55.5mm
- Weight: 420g

Call us for a price £13.00 You save: £13.00
TR-JB07-D-IN

- Junction box for large bullet cameras (such as IPC222x and IPC23xx)
- 125mm x 125mm x 55mm
- Weight: 750g

Call us for a price £17.00 You save: £17.00
TR-UP06-B-IN

- Outdoor, pole or rail installation for the IPC22x, IPC24x and IPC212x (square base) cameras
- 99mm x 90mm x 38mm
- Weight 200g

Call us for a price £12.00 You save: £12.00
TR-UP06-C-IN

- External pole or rail mount for the IPC22xx and IPC232x series, and can be used with the TR-JB07-D-IN or TR-JB06-A-IN
- 127mm x 136mm x 62.5mm
- Weight: 340g

Call us for a price £17.00 You save: £17.00
TR-A01-IN

- Plastic waterproof joint
- Ideal for internal and external use
- Ø37mm x 46mm

Call us for a price £2.50 You save: £2.50

Different ways of mounting this camera:


This camera has the following special features:

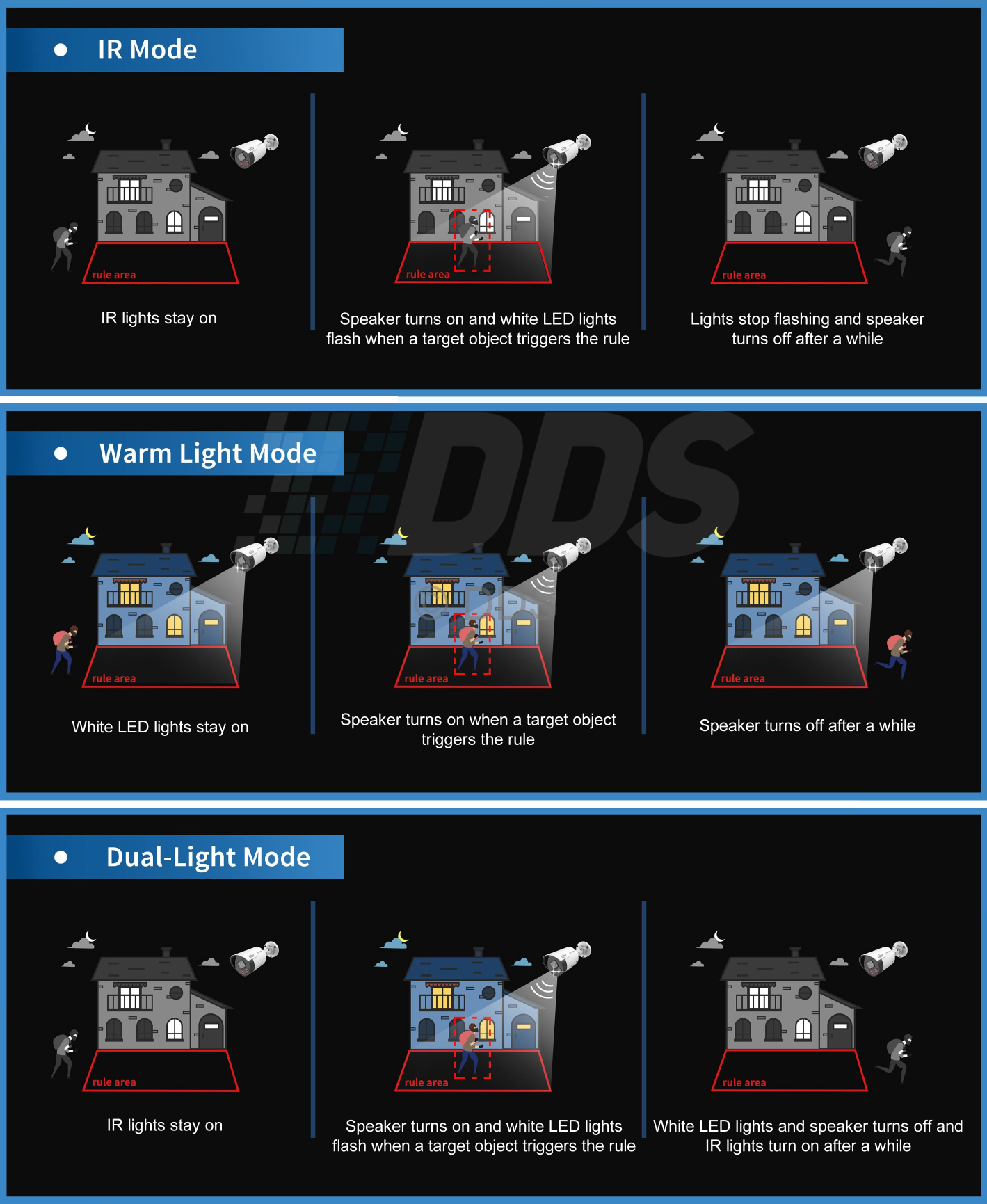

Active Deterrence
This PTZ camera can prevent intruders using the built-in strobing siren, white light, speaker or a combination of all 3. Using human body detection, it will avoid any false triggers from other moving objects or animals.



ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



Starview
Starview is the technology which allows for an outstanding image at super low illumination during the night for both static and moving scenes. This also means that the camera can display full colour at night. In technical terms, it enhances SN (signal-to-noise) by 17dB at 0.01 lux environment; this, in turn, increases both clarity and image colour at least 25% visually.



VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Human Body Detection - Ignoring any moving objects such as vehicles or animals, and only monitoring for humans
  • Motion Detection - Movement within a pre-defined virtual region
  • Auto Tracking - Tracking a specific target until it is out of range
