Auto-Tracking IP PTZ Camera (22x Optical, LightHunter, PRO)

Call us for a price

IPC6252SR-X22U

Part of the UNV professional range, this vandal resistant dome IP PTZ camera boasting an impressive 2 megapixel HD recording resolution and an auto-focusing 22x optical zoom lens. This camera has the LightHunter chipset, allowing for full colour at night with sufficient ambient lighting. Supporting up to Ultra265 compression and up to 200m of IR range.

- Resolution 2MP (1920 x 1080)
- Motorised 6.5-143mm Lens, Angles 57.2° ~ 3.3° (H)
- 22x Optical Zoom, 16x Digital Zoom
- Smart IR, Up To 200m IR Range
- Day/Night, IR Cut Filter, 3D DNR
- True WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265 or Ultra265
- Alarm I/O, 2 Input and 1 Output
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -40°C to 70°C
- Wide voltage range of ±25%
- Metal Housing, IP66 Rated
- 6kV surge protection

Camera

Image Sensor:
LightHunter CMOS (1/1.8")
Resolution:
2MP
Effective Pixels (H x V):
1920 x 1080
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1/1~1/100000s
Signal-to-noise Ratio:
>52dB
Iris:
Auto/Manual; F1.5 ~ F3.4
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Motorised 6.5-143mm, 22x Optical and 16x Digital
Field of View:
57.2°~ 3.3°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB

Pan & Tilt

Pan Range:
360° (endless)
Pan Speed:
0.1°/s ~ 240°/s (Preset speed: 300°/s)
Tilt Range:
-15° ~ +90° (auto reverse)
Tilt Speed:
0.1° ~ 160°/s (Preset speed: 240°/s)
Number of Presets:
1024
Patrol:
Preset patrol, Route patrol, Recorded patrol

DORI

Detect:
78-1716m
Observe:
31.2-686.4m
Recognise:
15.6-343.2m
Identify:
7.8-171.6m

Day/Night

Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.0005Lux, 0Lux with IR on
IR Range:
195-200m
IR Control:
CDS Auto

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
No
Main Stream:
1920x1080@60fps
Sub Stream:
720x576@60fps

General

Power:
AC 24V±25% / DC12V(±25%)
Housing:
Metal
Power Consumption:
Max 47W
Operating Temperature:
-40°C ~ +70°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP66
Approvals:
CE / FCC
Weight:
5.5kg

Interface

Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x2), Alarm output (x1)
PTZ Control:
Onvif / RS-485

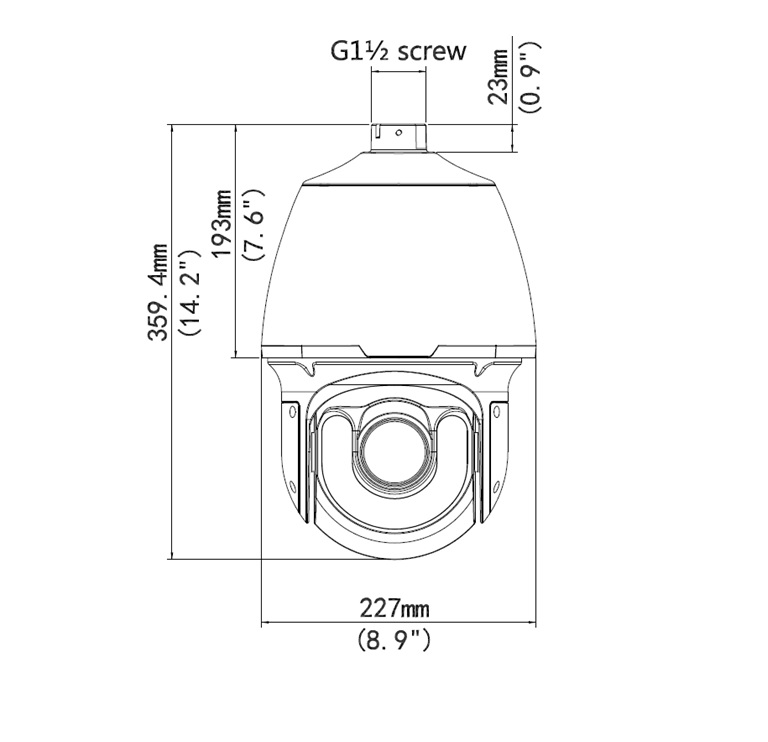

All dimensions are in millimetres (mm)


TR-CE45-IN

Indoor, wall or pendant installation for PTZ and dome cameras
- 116.5mm x 239mm

Call us for a price £15.00 You save: £15.00
TR-UF45-A-IN

Indoor pendant installation for PTZ cameras
- 116mm x 30.5mm

Call us for a price £10.00 You save: £10.00
TR-SE45-A-IN

Extension for the PTZ pendant mounts
- 526mm x 59mm

Call us for a price £12.00 You save: £12.00
TR-SE45-IN

Extension for the PTZ pendant mounts
- 226mm x 59mm

Call us for a price £9.00 You save: £9.00
TR-WE45-IN

Wall mount for IPC62x and IPC63x series PTZ cameras
- 230.3mm x 141mm x 201.5mm

Call us for a price £19.00 You save: £19.00
TR-WE45-A-IN

Wall mount for IPC62x and IPC63x series PTZ cameras
- 314mm x 141mm x 216mm

Call us for a price £23.00 You save: £23.00
TR-WE45-B-IN

Gooseneck mount for IPC62x and IPC63x series PTZ cameras
- 879mm x 831mm

Call us for a price £50.00 You save: £50.00
TR-JB12-IN

- Junction box for Uniview PTZ IPC62x and IPC63x cameras
- 296mm x 244mm x 127mm
- Weight: 2.5kgs

Call us for a price £60.00 You save: £60.00

Different ways of mounting this camera:



This Camera Has The Following Special Features:

ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



Starview
Starview is the technology which allows for outstanding image at super low illumination during the night for both static and moving scenes. This also means that the camera can display full colour at night. In technical terms, it enhances SN (signal-to-noise) by 17dB at 0.01 lux environment; this in turn increase both clarity and image color at least 25% visually.



VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • Recognition - Face and audio detection
  • Tamper Identification - Detect when the camera has been physically tampered with
  • Statistical Analysis - People counting
  • Auto Tracking - Tracking a specific target until it is out of range
