Dual-Lens PTZ Camera (25x Optical, LightHunter, WhiteLight, Smart)
Save
100%
100%
Part of the Uniview MultiView range, this dual-lens IP camera has a 4mm fixed lens for panoramic view AND a PTZ with auto-focusing 25x optical zoom. It has up to 100m IR range, up to 30m of White Light range and a high-power speaker. It also features the LightHunter chipset, allowing for full colour at night with sufficient ambient lighting. Each camera requires a separate channel on the NVR.
- Play pre-recorded messages
- Resolution 4MP (2688 x 1520), POE
- PTZ - Motorised 4.8-120mm Lens, Angles 55.46° ~ 3.09° (H) | Panoramic - Fixed 4mm Lens, Angle 94.9° (H)
- PTZ - 25x Optical Zoom
- PTZ - Smart IR, Up To 100m IR Range | Panoramic - Up To 30m White Light Range
- Day/Night, IR Cut Filter, 2D/3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265 or Ultra 265
- MicroSD Card Slot (see Special Features)
- VCA - Line Crossing, Intrusion Detection (see Special Features)
- ONVIF Compliance (Profile G, S, T)
- Temperature Range -40°C to 65°C
- Wide voltage range of ±25%
- Metal Housing, IP66 Rated
- 6kV surge protection
Camera
Image Sensor:
LightHunter CMOS (1/2.7")
Resolution:
4MP
Effective Pixels (H x V):
2688 x 1520
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1/1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
PTZ: Auto/Manual, F1.5 ~ F3.8 | Panoramic: Fixed F1.0
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
PTZ: 120dB | Panoramic: 120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
PTZ: Motorised 4.8-120mm, 25x Optical | Panoramic: Fixed 4mm
Field of View:
PTZ: 55.46° ~ 3.09° | Panoramic: 94.9°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 256GB
Pan & Tilt
Pan Range:
360°
Pan Speed:
1°/s ~ 80°/s (Preset speed: 80°/s)
Tilt Range:
PTZ: -15° ~ 90° (auto reverse) | Panoramic: 18° ± 5°
Tilt Speed:
0.1° ~ 80°/s (Preset speed: 80°/s)
Number of Presets:
1024
Patrol:
Preset patrol, Route patrol, Recorded patrol
DORI
Detect:
PTZ: 123.8-2475.0m | Panoramic: 62.1m
Observe:
PTZ: 49.5-990.0m | Panoramic: 24.8m
Recognise:
PTZ: 24.8-495.0m | Panoramic: 12.4m
Identify:
PTZ: 12.4-247.5m | Panoramic: 6.2m
Day/Night
Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.003Lux, 0Lux with IR on
IR Range:
PTZ: 95-100m
IR Control:
CDS Auto
White Light Range:
Panoramic: 25-30m
Network
Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes (30W POE injector required)
Main Stream:
2688x1520@30fps
Sub Stream:
1280x720@30fps
General
Power:
DC12V(±25%) / PoE+ (IEEE 802.3at)
Housing:
Metal
Power Consumption:
Max 24W
Operating Temperature:
-40°C ~ +65°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP66
Approvals:
CE / FCC
Weight:
2.27kg
Interface
Built-in Speaker:
Yes
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x2), Alarm output (x1)
PTZ Control:
Onvif

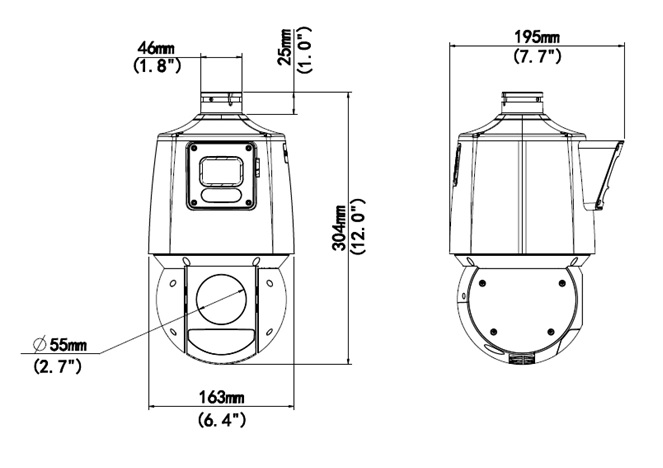

All dimensions are in millimetres (mm)
Different ways of mounting this camera:
This camera has the following special features:
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
LightHunter
LightHunter is the technology which allows for an outstanding image at super low illumination during the night for both static and moving scenes. This also means that the camera can display full colour at night. In technical terms, it enhances SN (signal-to-noise) by 17dB at 0.01 lux environment; this, in turn, increases both clarity and image colour at least 25% visually.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Audio Detection - Detect a sudden increase or decrease in sound
- Auto Tracking - Tracking a specific target until it is out of range
- Enter Area - Entering into a pre-defined virtual region
- Face Capture - Detect and capture faces with attributes e.g. gender, glasses, face mask etc.
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Leave Area - Leaving a pre-defined virtual region
- Line Crossing - Detect when a pre-defined virtual line has been crossed
- Linkage - If the panoramic camera is triggered, the PTZ will then auto-track the target
- Motion Detection - Movement within a pre-defined virtual region
- People Counting - People flow counting and crowd density monitoring
- Tamper Identification - Detect when the camera has been physically tampered with
