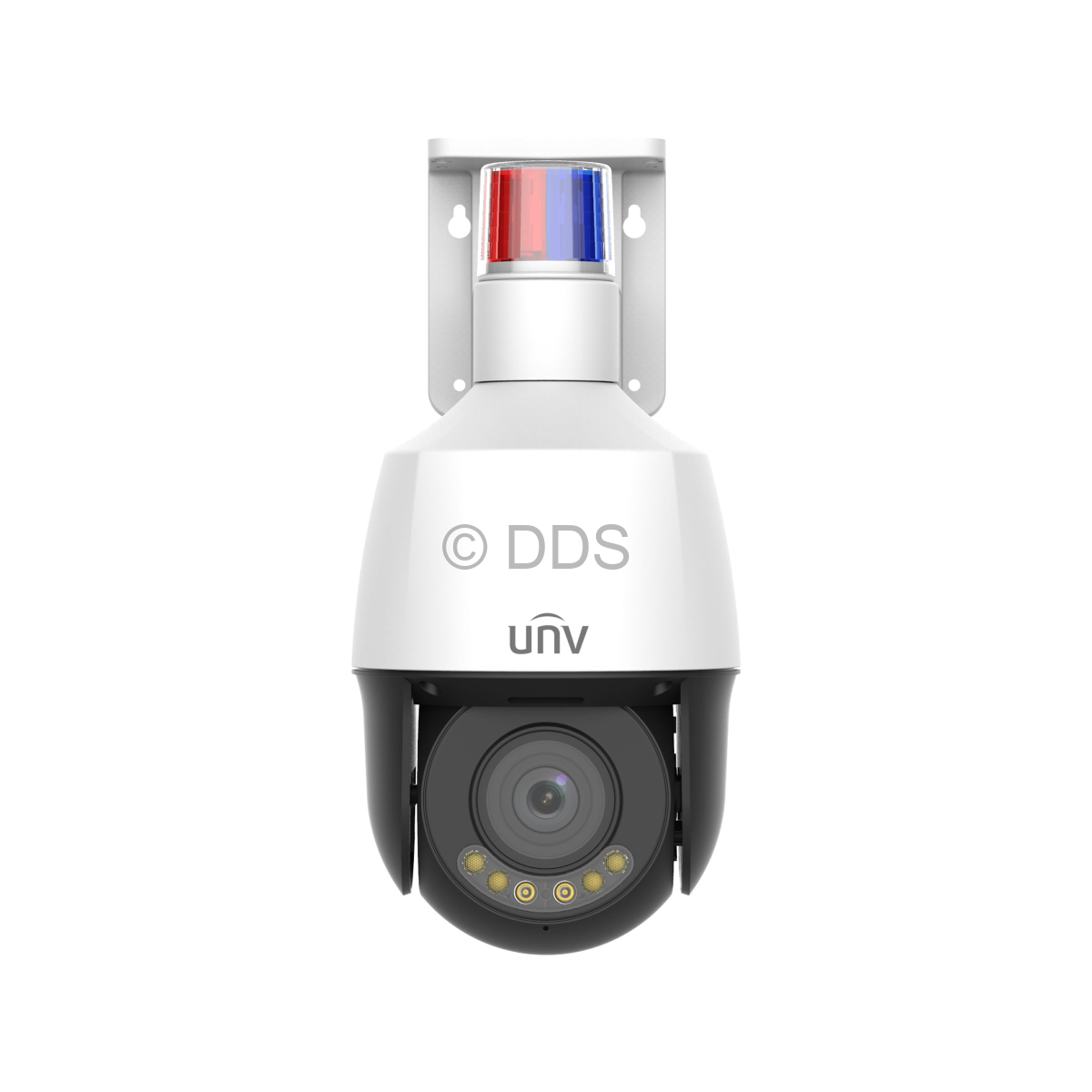

4MP OwlView Mini PTZ (5x Optical, WhiteLight, Auto-Tracking)

Call us for a price

IPC6324LWH-AX5C-VG2

Part of the UNV OwlView range, this Uniview IP  PTZ camera has the latest Wise-ISP algorithm, allowing for 24/7 full colour with better performance than previous full-colour models, even without using the built-in white light. It combines the large 1/1.8" sensor with a F1.0 aperture, and using Uniview's self-developed large model engine allows the image to be brighter yet more true to life, with advanced smear control and dynamic noise reduction. It has 4MP resolution with an auto-focusing 5x optical zoom lens. Supporting Ultra265 compression, and up to 40m of White Light. It features active deterrence by using strobing light, white light and pre-recorded messages.

 Alongside this, it features a built-in speaker and microphone, allowing for 2-way audio. It can also auto-track a person to reduce false triggers from other moving objects or animals. Click on the Product Video tab to see the PTZ in action.

- Active Deterrence
- Red/blue strobing light
- Up to 40m White Light range
- Play pre-recorded messages
- Two-way audio (built-in microphone and speaker)
- Resolution 4MP (2560 x 1440), POE
- Motorised 2.7-13.5mm Lens, Angles 50.29° ~ 113.69° (H)
- Day/Night, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265 or Ultra265
- MicroSD Card Slot (see Special Features)
- VCA - Line Crossing, Intrusion Detection (see Features)
- ONVIF Compliance (Profile G, S and T)
- Temperature Range -30°C to 60°C
- Wide voltage range of ±25%
- IP66 Rated
- 2kV surge protection
- Wall bracket included

Camera

Image Sensor:
ColourHunter CMOS (1/1.8")
Aperture:
F1.0
Resolution:
4MP
Effective Pixels (H x V):
2560 x 1440
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1/1~1/100000s
Signal-to-noise Ratio:
>56dB
Iris:
Auto
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Motorised 2.7-13.5mm, 5x Optical
Field of View:
113.69°~ 50.29°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 512GB

Pan & Tilt

Pan Range:
0°~345°
Pan Speed:
1°/s ~ 50°/s (Preset speed: 50°/s)
Tilt Range:
-10 ~ +100°
Tilt Speed:
1° ~ 40°/s (Preset speed: 40°/s)
Number of Presets:
1024
Patrol:
Preset patrol, Route patrol

DORI

Detect:
98.6-209.9m
Observe:
39.4-84.0m
Recognise:
19.7-42.0m
Identify:
9.9-21.0m

Day/Night

Minimum Illumination:
Colour 0.0005Lux
White Light Range:
35-40m

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S, Profile T)
POE:
Yes (30W POE injector required)
Main Stream:
2560x1440@30fps
Sub Stream:
1280x720@30fps

General

Power:
12V DC (+/- 25%) / PoE (IEEE802.3at)
Housing:
Metal
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP66
Approvals:
CE / FCC / UL
Weight:
1.32kg

Interface

Built-in Microphone:
Yes
Built-in Speaker:
Yes
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x1), Alarm output (x1)
Reset Button:
Yes
PTZ Control:
Onvif

All dimensions are in millimetres (mm)

Dimensions of IPC6325LFW-AX5C-VG

TR-JB07-D-IN(B)

- Outdoor or indoor cable junction box for IPC2XX and IPC74X series (Extra back outlet)
- 125mm x 125mm x 55mm
- Weight: 750g

Call us for a price £20.00 You save: £20.00
TR-UP06-C-IN(B)

- External pole or rail mount for the IPC22xx and IPC232x series, and can be used with the TR-JB07-D-IN or TR-JB06-A-IN
- 127mm x 136mm x 62.5mm
- Weight: 340g

Call us for a price £15.00 You save: £15.00
TR-UC08-C(B)

Suitable for mounting Uniview bullet and dome cameras to a corner
- Dimensions: 137mm x 127mm x 116mm

Call us for a price £19.50 You save: £19.50

Different ways of mounting this camera:


This camera has the following special features:

Active Deterrence

This PTZ camera can prevent intruders using the built-in strobing siren, white light, speaker or a combination of all 3. Using human body detection, it will avoid any false triggers from other moving objects or animals.



AI (Artificial Intelligence)

AI allows the camera to work out if the movement detected was caused by a human, vehicle, or non-motor vehicle. The technology, known as SIP (Smart Intrusion Prevention), allows the camera to filter out 97% of false triggers from light, animals, and nature. This feature requires an AI-compatible NVR.



ANR (Automatic Network Replenishment)

ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



LightHunter

LightHunter is the technology which allows for outstanding image at super low illumination during the night for both static and moving scenes. UNV LightHunter IPCs enhances the brightness of the images in a low-illumination environment by increasing the sensor target surface, sensor photosensitivity, lens aperture and transmittance as well as optimizing the hardware structure. UNV new-generation algorithm (U-ISP) has many advantages, such as reducing blur and noise and increasing sharpness. All of these advantages improve the definition and brightness of images. This also means that the camera can display full colour at night.



VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Auto Tracking - Tracking a specific target until it is out of range
  • Crowd Density Monitoring - Detect the number of people in a pre-defined virtual region
  • Enter Area - Entering into a pre-defined virtual region
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Leave Area - Leaving a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • People Flow Counting - Count the number of people passing over a virtual line, in a specified direction
  • Tamper Identification - Detect when the camera has been physically tampered with
