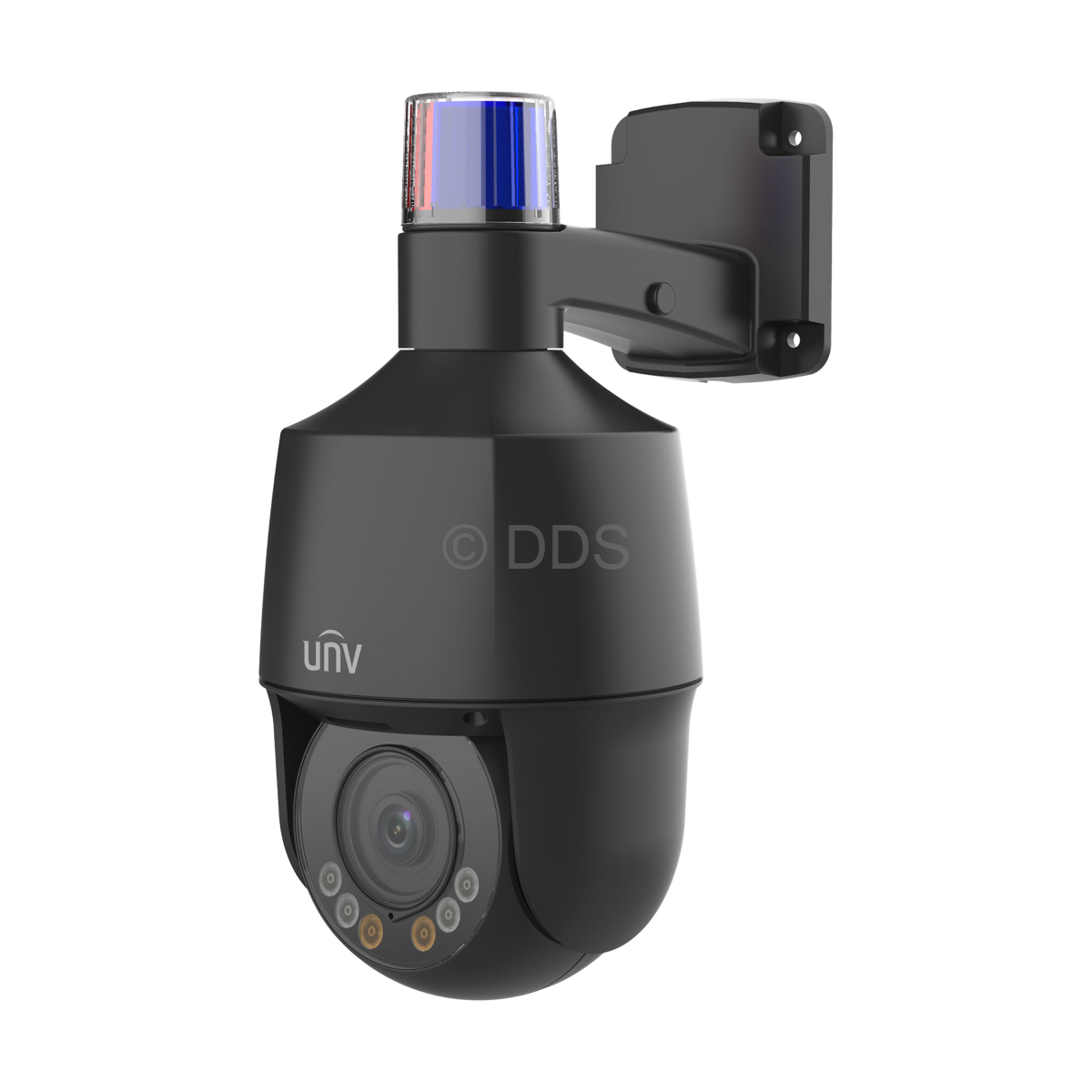

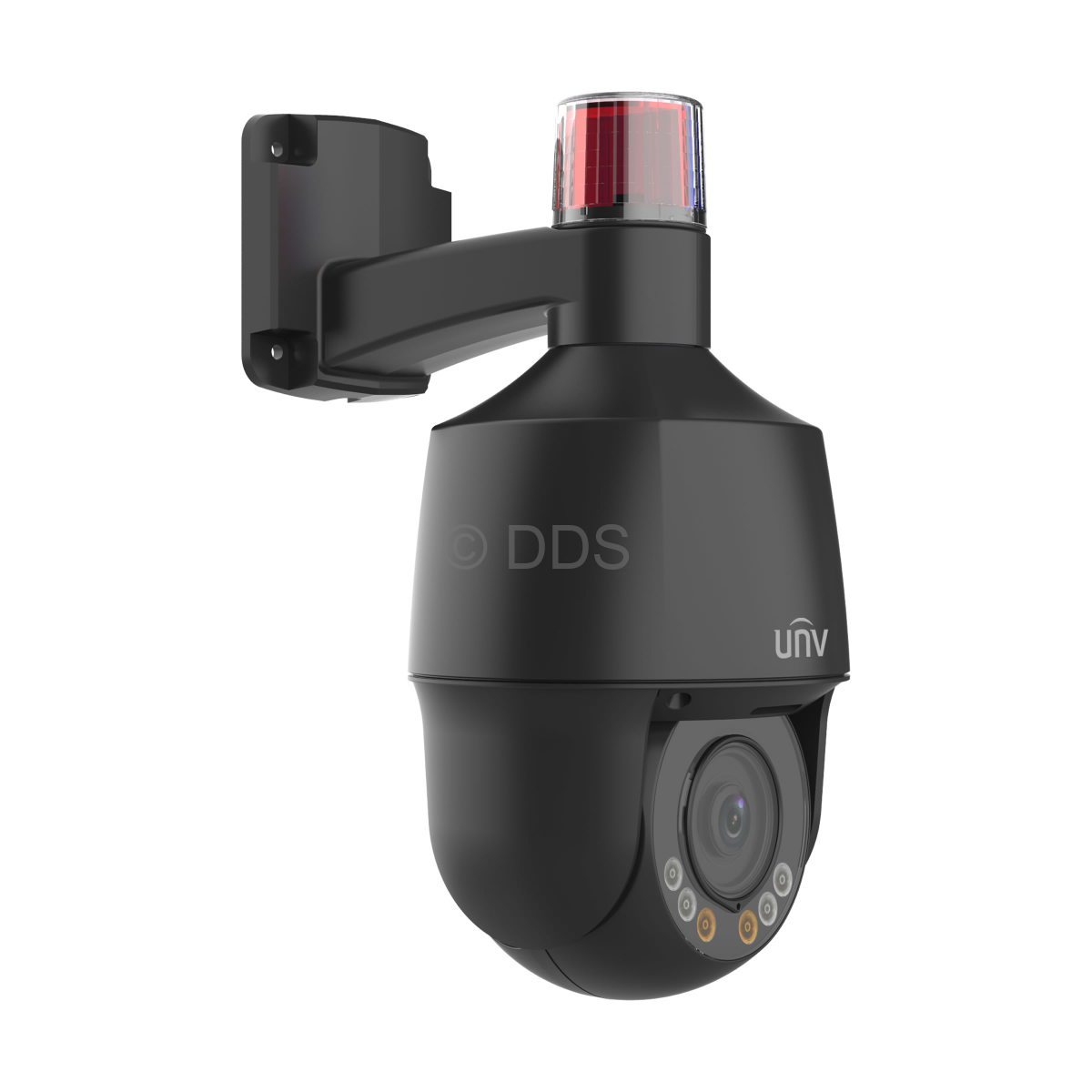

Black 5MP Active Deterrence Mini PTZ (4x Optical, LightHunter, Auto-Tracking)
Part of the UNV LightHunter range, this mini IP PTZ camera has 5MP resolution with an auto-focusing 4x optical zoom lens. Supporting Ultra265 compression, up to 50m of IR range and up to 10m of White Light. It features active deterrence by using strobing light, white light and pre-recorded messages. When the white light illuminates the area, the camera will go into colour mode to provide a clearer image, thanks to the LightHunter chipset; after the deterrence event has finished, the camera will return to black and white.
Alongside this, it also features a built-in speaker and microphone allowing for 2-way audio. It can also auto-track a person; using human body detection (this requires the camera to be in colour & light at night), to reduce false triggers from other moving objects or animals. Click on the Product Video tab to see the PTZ in action.
- Active Deterrence
- Red/blue strobing light
- Up to 10m White Light range
- Play pre-recorded messages
- Two-way audio (built-in microphone and speaker)
- Resolution 5MP (2880 x 1620), POE
- Motorised 2.8-12mm Lens, Angles 30.6° ~ 104.1° (H)
- Smart IR, Up To 50m IR Range
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265 or Ultra265
- Supports MicroSD card
- ONVIF Compliance (Profile G, S and T)
- Temperature Range -20°C to 60°C
- Wide voltage range of ±25%
- IP66 Rated
- 4kV surge protection
- Wall bracket included
Pan & Tilt
All dimensions are in millimetres (mm)
Different ways of mounting this camera:
This camera has the following special features:
This PTZ camera can prevent intruders using the built-in strobing siren, white light, speaker or a combination of all 3. Using human body detection, it will avoid any false triggers from other moving objects or animals.
ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.
Starview is the technology which allows for an outstanding image at super low illumination during the night for both static and moving scenes. This also means that the camera can display full colour at night. In technical terms, it enhances SN (signal-to-noise) by 17dB at 0.01 lux environment; this, in turn, increases both clarity and image colour at least 25% visually.
VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:
- Intrusion Detection - Entering and loitering in a pre-defined virtual region
- Human Body Detection - Ignoring any moving objects such as vehicles or animals, and only monitoring for humans
- Motion Detection - Movement within a pre-defined virtual region
- Auto Tracking - Tracking a specific target until it is out of range
