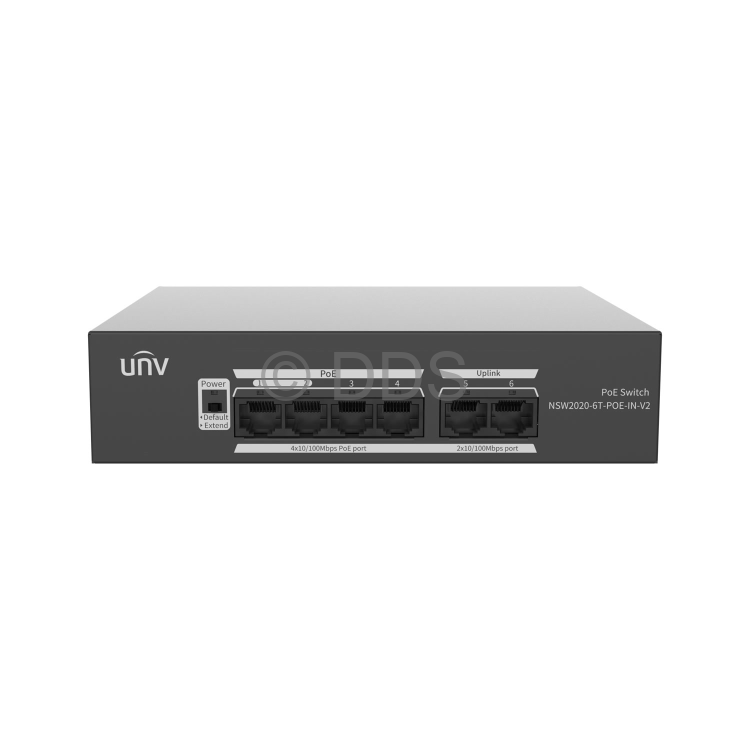

Uniview POE Ethernet Switch (4 Ports, 2 Uplinks)

Home/IP Accessories/POE Accessories/Ethernet/POE Switches/Uniview POE Ethernet Switch (4 Ports, 2 Uplinks)

12 of 13

Save
100%

Uniview POE Ethernet Switch (4 Ports, 2 Uplinks)

Log-in for pricing

Order Code: NSW2020-6T-POE-IN-V2

Description

- 4x 100Mbps POE Ports + 2x 100Mbps Uplink Ports
- Total output power 65 watts
- POE+ (max. 30W per port)
- Can supply POE up to 250 meters (in surveillance mode)
- Switch capacity: 1.2Gbps, Forwarding Performance: 0.90Mbpps, MAC Address Table: 2K
- 48vDC POE Power

Technical Specifications
Ports	4 x 100Mbps POE ports + 2 x 100Mbps Uplinks
Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching Capacity	1.2Gbps
Forwarding Performance	0.90Mpps
Packet Buffer	570Kbit
MAC Address Table	2K
POE	802.3at/af
Max. PoE Power	Max capacity: 65W Max capacity for single port: 30W
Cooling Fans	0
Working Temperature	0°C - 45°C
Indicator	POWER: Off: No AC input Green: Normal power input Yellow: Consumed power is higher than 85% of the total power LINK/ACT: Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data
Working Mode	Default (Normal mode): All ports can communicate with each other. EXTEND (Surveillance mode): Transmission distance up to 250 meters.
Power Supply	AC: 100-240V, 50/60Hz
Weight	<0.65kg
Dimensions (W x D x H)	169mm x 132mm x 40mm
