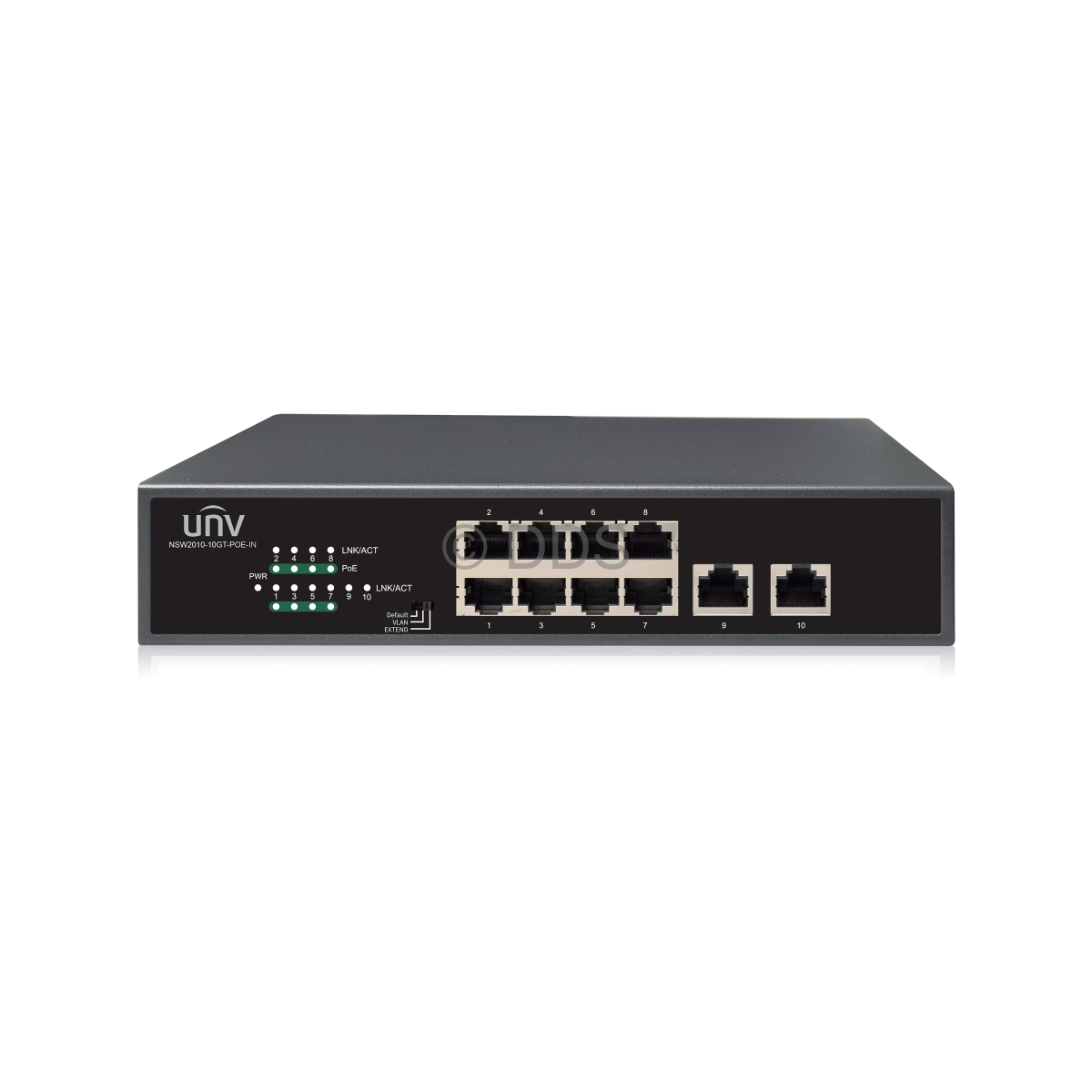

Uniview Gigabit POE Ethernet Switch (8 Ports, 2 Uplinks)

Call us for a price


- 8x 1000Mbps POE Ports + 2x 1000Mbps Uplink Ports
- Total output power 120 watts
- POE+ (max. 30W per port)
- Can supply POE up to 250 meters (in surveillance mode)
- Switch capacity: 20Gbps, Forwarding Performance: 13.4Mbpps, MAC Address Table: 2K
- 48vDC POE Power


Technical Specifications
Ports 8 x 1000Mbps POE ports + 2 x 1000Mbps Uplinks
Standards IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching Capacity 20Gbps
Forwarding Performance 13.4Mpps
Packet Buffer 2Mbit
MAC Address Table 2K
POE 802.3at/af
Max. PoE Power Max capacity: 120W
Max capacity for single port: 30W
Cooling Fans 1
Working Temperature 0°C - 45°C
Indicator PWR:
Steady on: AC input is normal
Off: No AC input

Off: No PoE power supply
Steady on: PoE power supply is normal
Flashing: PoE power supply is abnormal

Off: No link
Steady: Linked at 10/100Mbps
Flashing: Transmitting data

Off: Linked at 10/100Mbps
On: Linked at 1000Mbps (1Gbps)

Working Mode Default (Normal mode): All ports can communicate with each other.
VLAN (Secure mode): Downlink ports can communicate only with uplink ports
EXTEND (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.
Power Supply AC: 100-240V, 50/60Hz
Weight <2kg
Dimensions (W x D x H) 220mm x 150mm x 44mm
