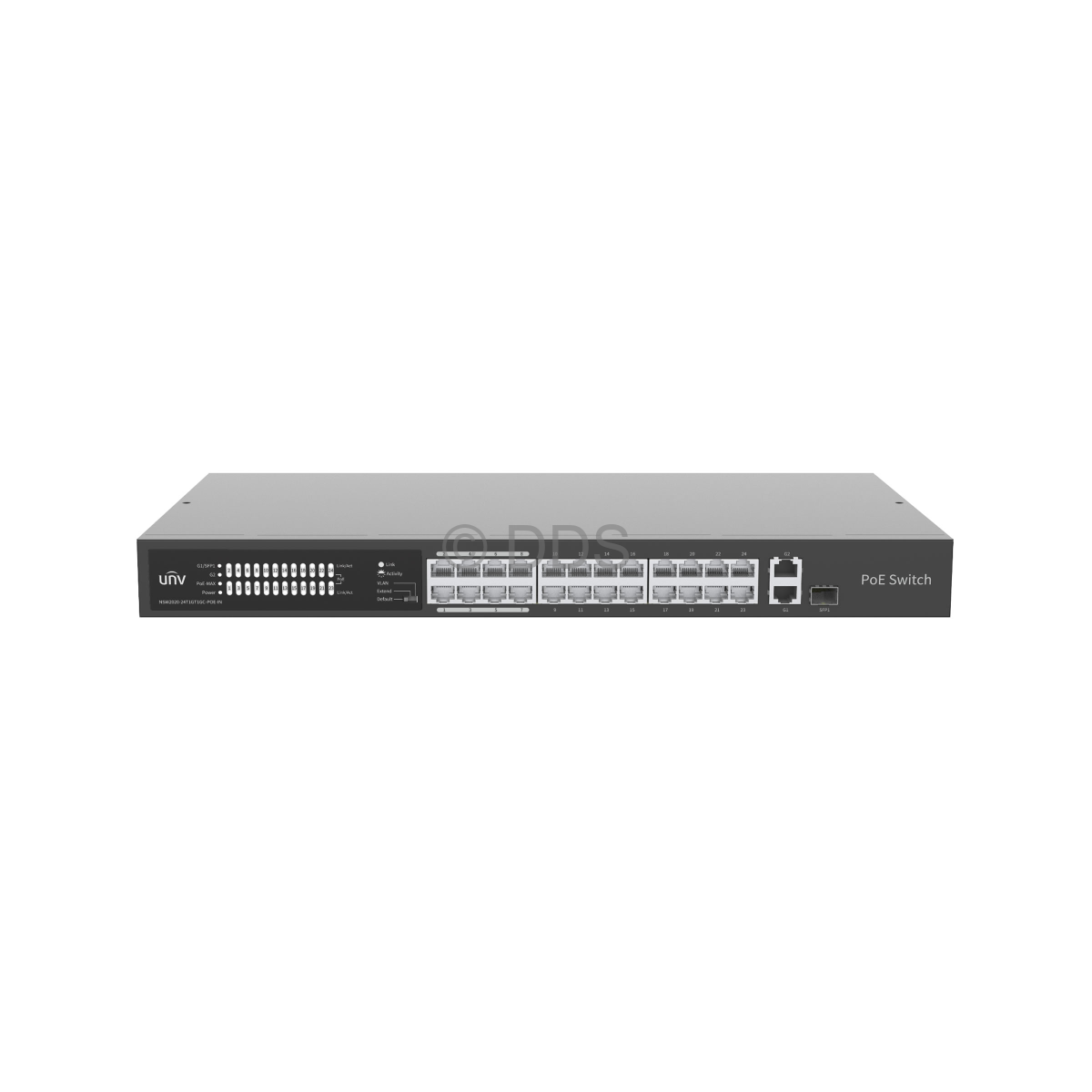

Uniview POE Ethernet Switch (24 Ports, 2 Uplinks)

Call us for a price

NSW2020-24T1GT1GC-POE-IN

- 24x 100Mbps POE Ports + 2x 1000Mbps (gigabit) Combo Uplink Ports
- Total output power 370 watts
- POE+ (max. 30W per port)
- Can supply POE up to 250 meters (in surveillance mode)
- Switch capacity: 8.8Gbps, Forwarding Performance: 6.55Mbpps, MAC Address Table: 16K
- 48vDC POE Power



Technical Specifications
Ports 24 x 100Mbps POE ports + 2 x 1000Mbps (1Gbps) Combo Uplinks
Standards IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3z, IEEE802.3ab
Switching Capacity 8.8Gbps
Forwarding Performance 6.55Mpps
Packet Buffer 4Mbit
MAC Address Table 16K
POE 802.3at/af
Max. PoE Power Max capacity: 370W
Max capacity for single port: 30W
Cooling Fans 1
Working Temperature 0°C - 40°C
Indicator PWR:
Steady on: AC input is normal
Off: No AC input

PoE:
Off: No PoE power supply
Steady on: PoE power supply is normal

PoE-MAX:
Off: The POE power supply power of the whole machine is less than 80% of the specification
Steady: The POE power supply power of the whole machine is greater than 85% of the specification


LINK/ACT:
Off: No link
Steady: Linked at 10/100Mbps
Flashing: Transmitting data

Working Mode Default (Normal mode) : All ports can communicate with each other.
VLAN (Secure mode): Downlink ports can communicate only with uplink ports. Enabling PD keepalive function, the switch will restart the IP cameras via PoE power if the IP cameras sends no message in a period of time.
EXTEND (Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports.
Power Supply AC: 100-240V, 50/60Hz
Weight <3kg
Dimensions (W x D x H) 440mm x 244.8mm x 48mm
