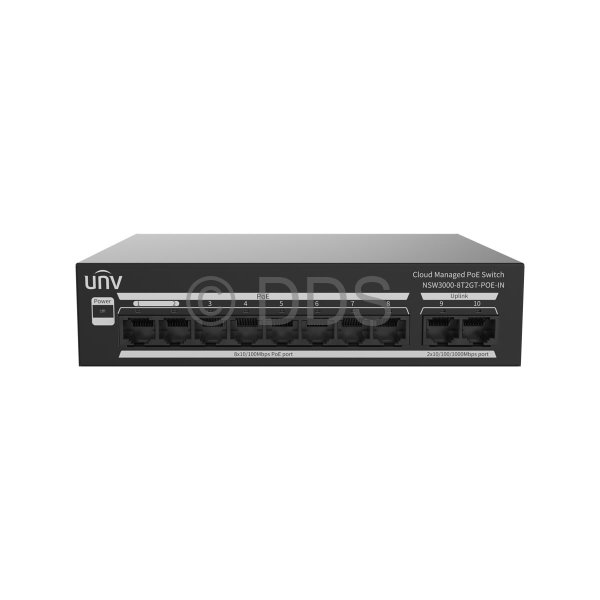

Cloud Managed POE Ethernet Switch (8 Ports, 2 Uplinks)
Save
100%
100%
- Supports web login and configuration, or by cloud using the UNV-Link PRO app
- 8x 100Mbps POE Ports + 2x 1000Mbps (Gigabit) Uplink Ports
- Total output power 120W watts
- POE+ (max. 30W per port)
- Can supply POE up to 250 meters (in surveillance mode)
- Switch capacity: 5.6Gbps, Forwarding Performance: 4.17Mbpps, MAC Address Table: 4K
- 48vDC POE Power
| Technical Specifications | |
| Ports | 8 x 100Mbps POE ports + 2 x 1000Mbps (1Gbps) Uplinks |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Switching Capacity | 5.6Gbps |
| Forwarding Performance | 4.17Mpps |
| Packet Buffer | 2Mbit |
| MAC Address Table | 4K |
| POE | 802.3at/af |
| Max. PoE Power | Max capacity: 120W Max capacity for single port: 30W |
| Cooling Fans | 0 |
| Working Temperature | 0°C - 40°C |
| Indicator | PWR: Steady on: AC input is normal Off: No AC input PoE-MAX: Off: Total PoE power in use is <80% Steady on: Total PoE power in use is >85% LINK/ACT: |
| Software | ETHERNET: Supports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports Supports port auto-negotiation rate Supports port priority flow control. Supports port flow statistics Supports a link aggregation group (consist of two uplink ports) VLAN: Supports both access and trunk modes; allows up to 32 VLANs with IDs from 1 to 4094 MAC: Support static MAC, up to 4000 Supports clearing the dynamic MAC address POE: View PoE status and power Enable/disable PoE power supply LOOP DETECTION: Supported QOS: Supports port rate limitation Supports broadcast storm control SECURITY: Supports port isolation (only for the downlink ports) Supports locking login IP address, up to 64 addresses can be locked MAINTENANCE: Supports N:1 port mirroring. Supports unified software configuration, management, and search. Supports discovering the connected video devices and generating a network topology on the software. Supports device upgrade, factory settings restoration, configuration import, configuration export, logs export, and device restart on the software. SYSTEM: Allows to view the device name, device model, serial number, current version, IP address, MAC address, DNS, operation time, etc. Allows to edit and manage the IP address and device name Supports single-user management, user authentication, and password modification Allows to view other switches information on the same network, up to 32 switches Allows to view the connected video devices information, up to 64 devices |
| Power Supply | AC: 100-240V, 50/60Hz |
| Weight | <0.67kg |
| Dimensions (W x D x H) | 169mm x 132mm x 40mm |
