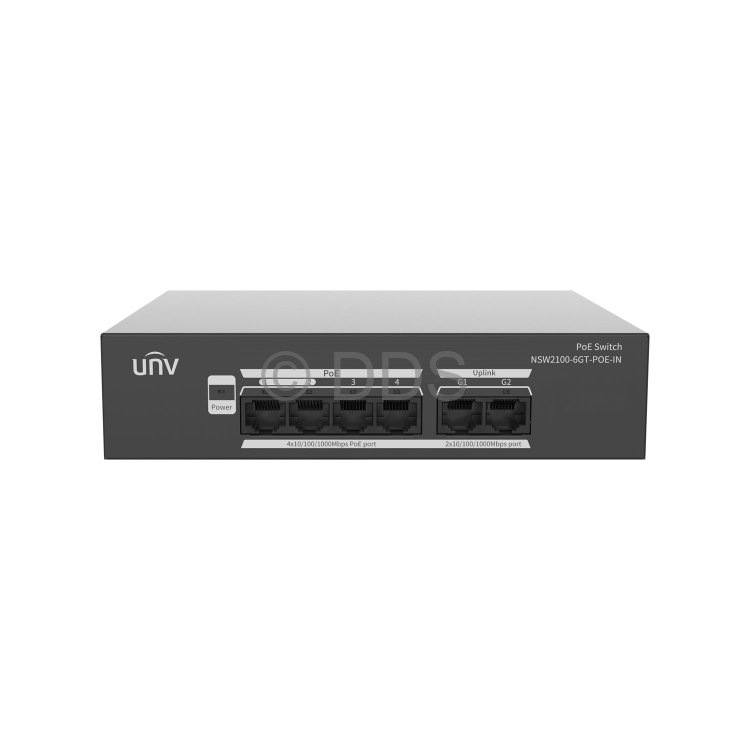

Cloud Managed Gigabit POE Ethernet Switch (4 Ports, 2 Uplinks)
Save
100%
100%
- Supports web login and configuration, or by cloud using the UNV-Link PRO app
- 4x 1000Mbps POE Ports + 2x 1000Mbps Uplink Ports
- Total output power 65 watts
- POE+ (max. 30W per port)
- Switch capacity: 12Gbps, Forwarding Performance: 8.92Mbpps, MAC Address Table: 2K
- 48vDC POE Power
| Technical Specifications | |
| Ports | 4 x 1000Mbps POE ports + 2 x 1000Mbps Uplinks |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3x, IEEE802.3ab, IIEEE802.3af, IEEE802.3at |
| Switching Capacity | 12Gbps |
| Forwarding Performance | 8.92Mpps |
| Packet Buffer | 1Mbit |
| MAC Address Table | 2K |
| POE | 802.3at/af |
| Max. PoE Power | Max capacity: 65W Max capacity for single port: 30W |
| Cooling Fans | 0 |
| Working Temperature | 0°C - 45°C |
| Indicator | POWER: Off: Abnormal power input. Green: Normal power input. Yellow: The total PoE power consumption is higher than 85% of the total power of the device LINK/ACT: |
| Software | ETHERNET: Supports full duplex, half duplex, and auto-negotiation working modes Supports enabling/disabling ports Supports port auto-negotiation rate Supports port flow statistics Supports four link aggregation groups (up to four ports) VLAN: Allows up to 6 VLANs with IDs from 1 to 4094 MAC: Support static MAC, up to 32 POE: Allows to view PoE status and enable/disable PoE power supply in the app LOOP DETECTION: Supported SECURITY: Supports port isolation MAINTENANCE: Supports N:1 port mirroring Supports device upgrade, factory settings restoration, configuration import, configuration export, and device restart on the software SYSTEM: Allows to view the device name, current version, IP address, MAC address, DNS, etc. Allows to edit and manage the IP address and device name |
| Power Supply | AC: 100-240V, 50/60Hz |
| Weight | 0.65kg |
| Dimensions (W x D x H) | 169mm x 132mm x 40mm |
