Ajax EN54 GlandBox
Save
100%
100%

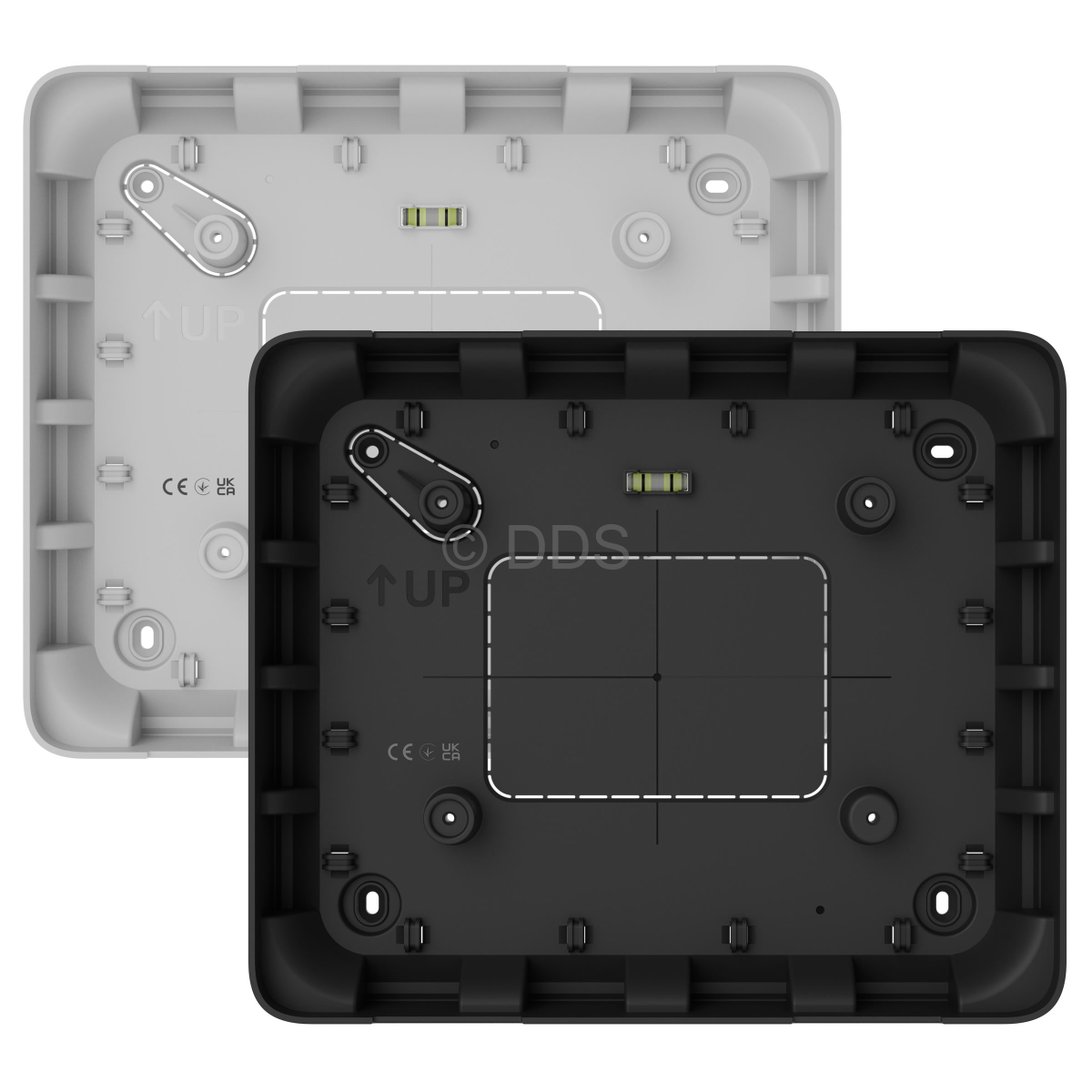

GlandBox is a wiring accessory for neat lateral cable entry into the EN54 Fire Hub Jeweller enclosure. It ensures clean and professional installation when in-wall cable routing isn’t possible - for example, in historical buildings or temporary commercial setups. GlandBox provides secure cable fixation using red glands (not included) and integrates seamlessly with the CIE design, maintaining the sleek and tidy look.
- 16 places to install cable glands
- Supports cable glands up to 20mm (diameter)
| Technical Specifications | |
| Classification | Wiring accessory for control and indicating equipment (CIE) |
| Installation method | Indoors |
| Places to install cable glands | 16 (4 on each side, for routing cables that are not hidden inside the wall) |
| Cable gland diameter | Up to 20mm (not included) |
| Recesses for drilling | The drill bit is fixed in the recess and does not move during drilling. We recommend using a hole saw for plastic with a diameter of up to 20 mm |
| Aids for easy installation | Bubble level UP key CIE center marking |
| Permissible humidity | Up to 80% |
| Operating temperature range | -10°С to +50°С |
| Anti-sabotage | Tamper-resistant |
| Dimensions | 263mm x 223mm x 40mm |
| Weight | 335g |
| Certification | UL 94 V-0 |
