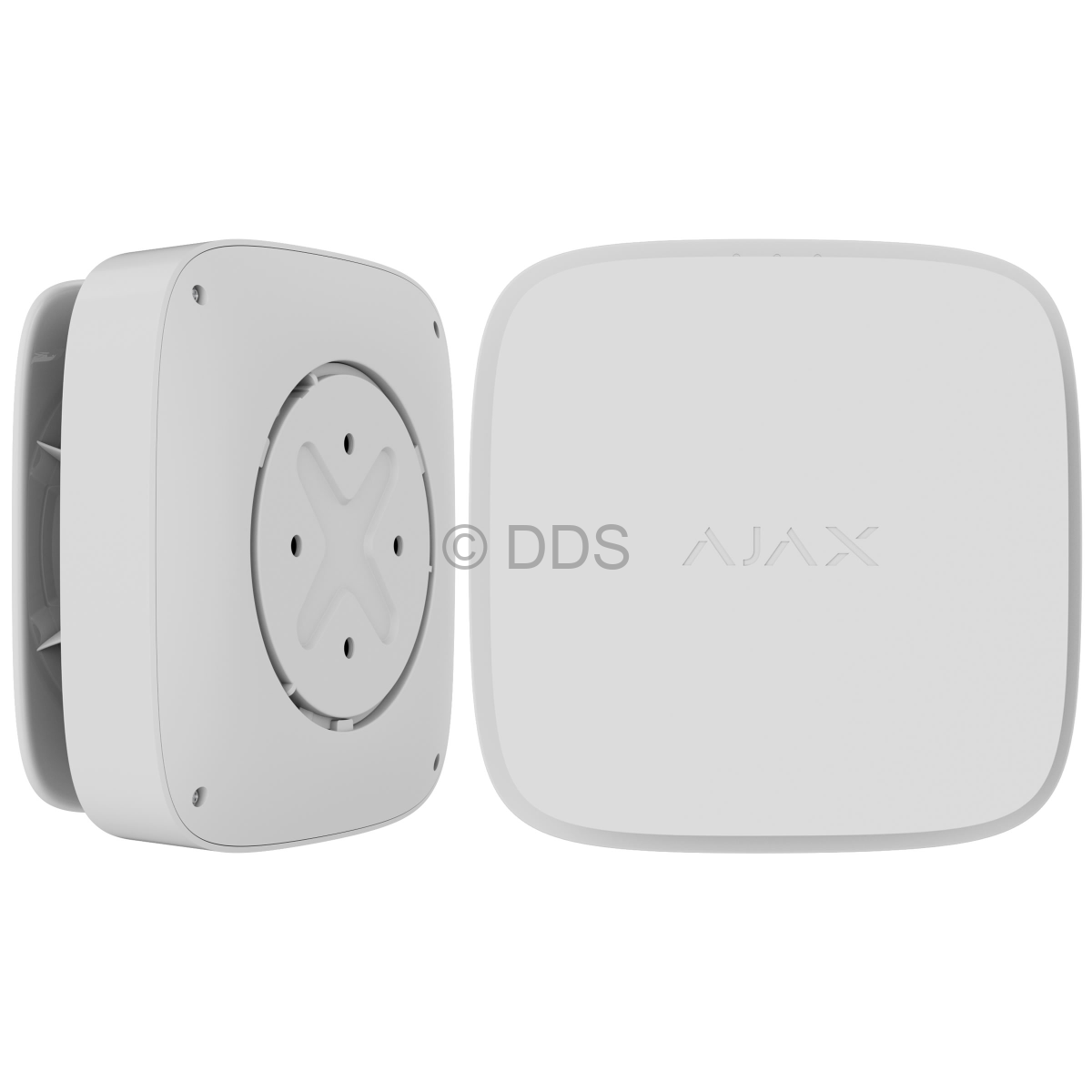

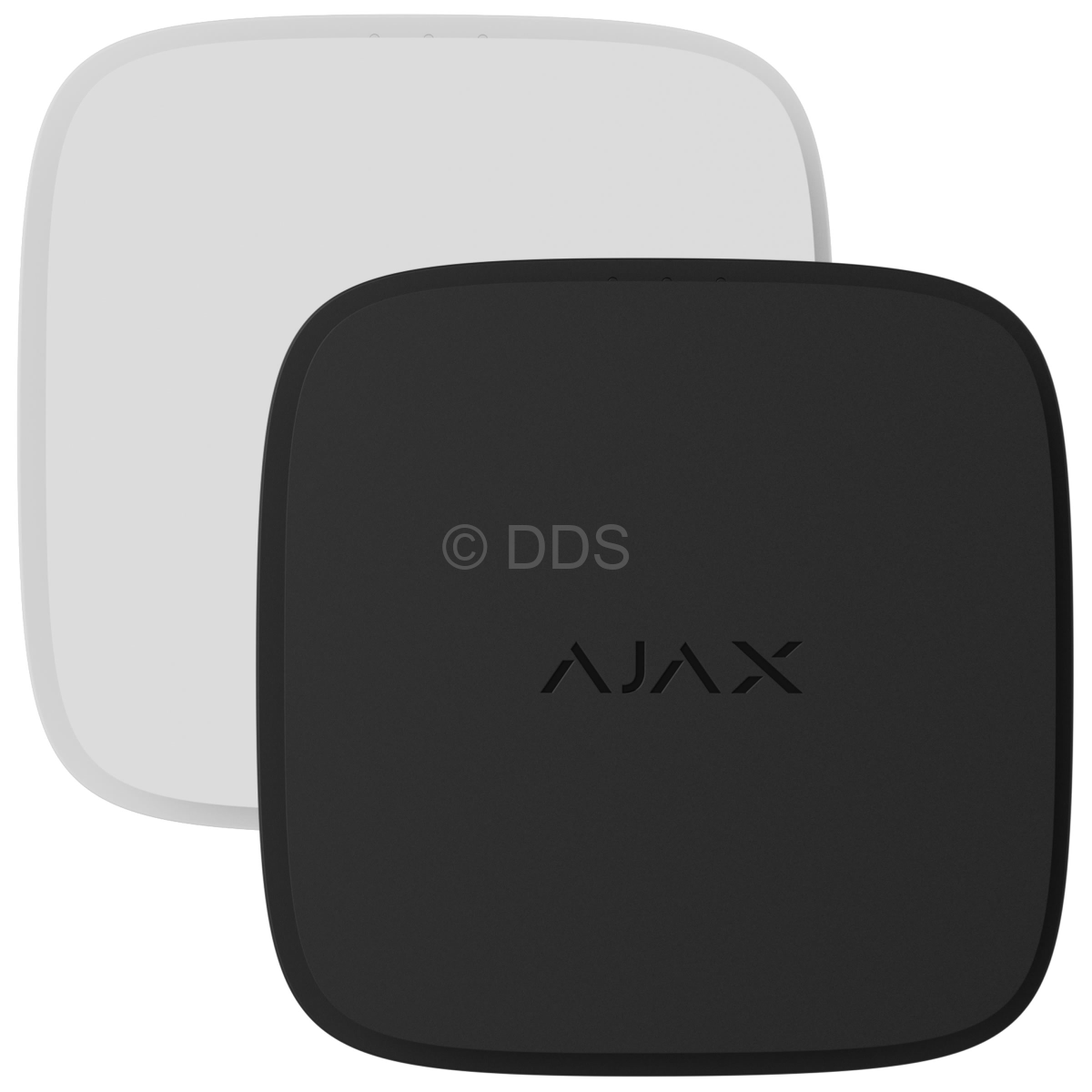

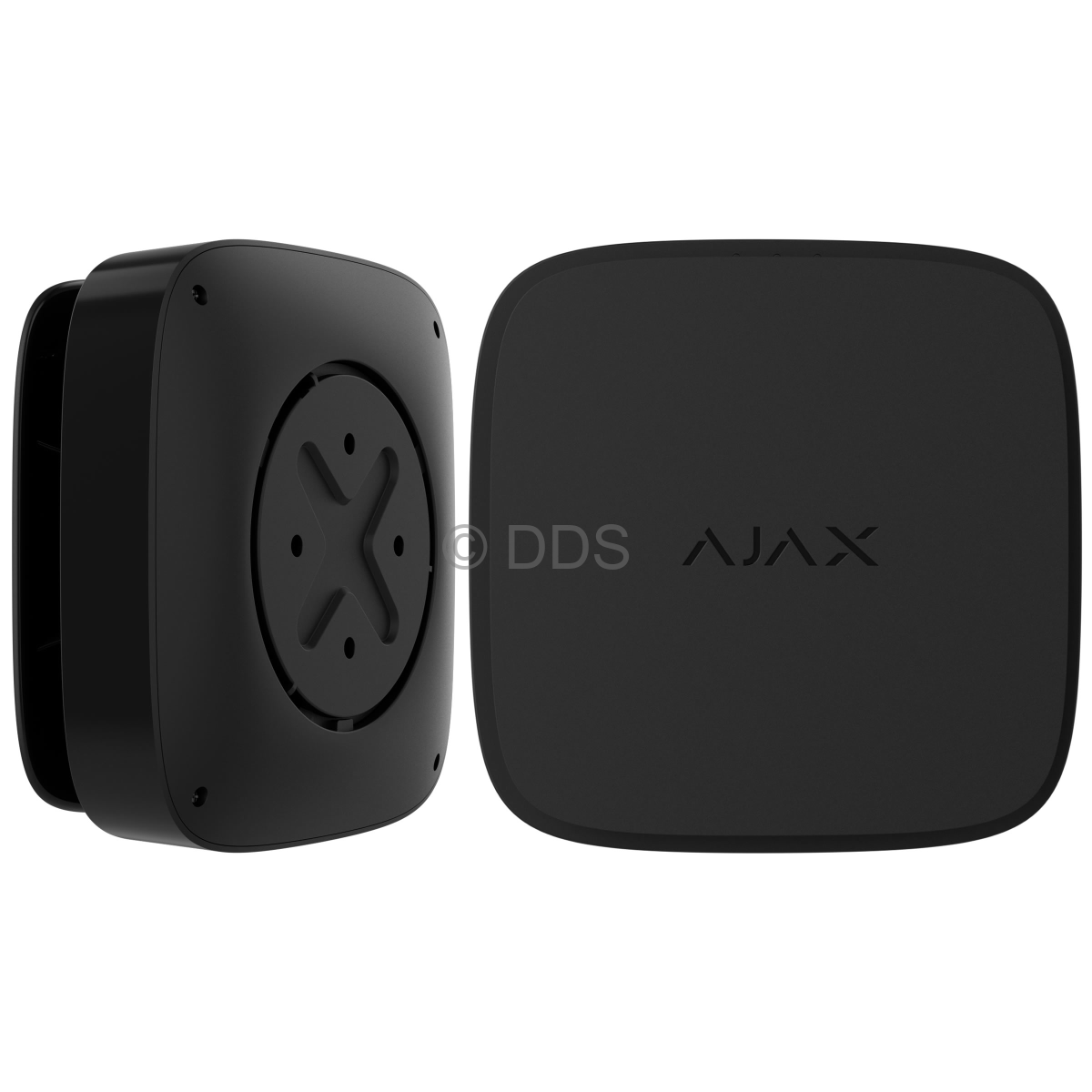

EN54 FireProtect (Smoke)
EN54 FireProtect Jeweller detectors combine certified reliability with effortless installation. This wireless series includes addressable point smoke and heat detectors, some of them combined with built-in fire alarm sounders. Each detector provides best-in-class detection accuracy thanks to Ajax's patented smoke chamber with a dual-spectrum optical sensor and two accurate thermistors. With built-in communicators, long battery life, and stable radio communication, the devices are ready for different-scale projects. No need to open the enclosure or run cables — installation and configuration take just minutes via Ajax apps. Early service notifications and automated maintenance reports via Ajax PRO Desktop ensure the system stays easy to support for years.
- Proprietary HazeFlow 2 software algorithm defines smoke from vapour or steam
- Patented smoke chamber protects the smoke sensor from dust, dirt, and insects
- Operates up to 6 years without battery replacement
Technical Specifications | |
Classification | Radio channel detector with dual-spectrum optical sensors |
Installation method | Indoors |
Compatibility | Operates with EN54 Fire Hub or Fire ReX |
Sensing elements | Dual-spectrum optical sensor |
Smoke detection | Sensitive element - detects smoke based on the size of particles in the air False alarm protection - the device does not respond to water vapour Patented smoke chamber - protects the smoke sensor from dust, dirt, and insects |
LED indication | Red/Yellow/Green |
Jeweller radio technology | Communication range with central unit: up to 1,700 m in an open space Two-way communication between devices Operating frequencies: 868.0 - 868.6 MHz Self-adjusting RF output power: up to 20 mW Block encryption based on AES algorithm Device polling period: 12−300 s |
Power supply | Battery: 2x CR123A batteries Power supply voltage: 3V Battery life: up to 6 years |
Permissible humidity | Up to 80% |
Operating temperature range | 0°С to +50°С |
Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant Lock for SmartBracket |
Dimensions | 124mm x 124mm x 48mm |
Weight | 281g |
Certification | CE, IP20, UL 94 V-0, EN54-7 |
