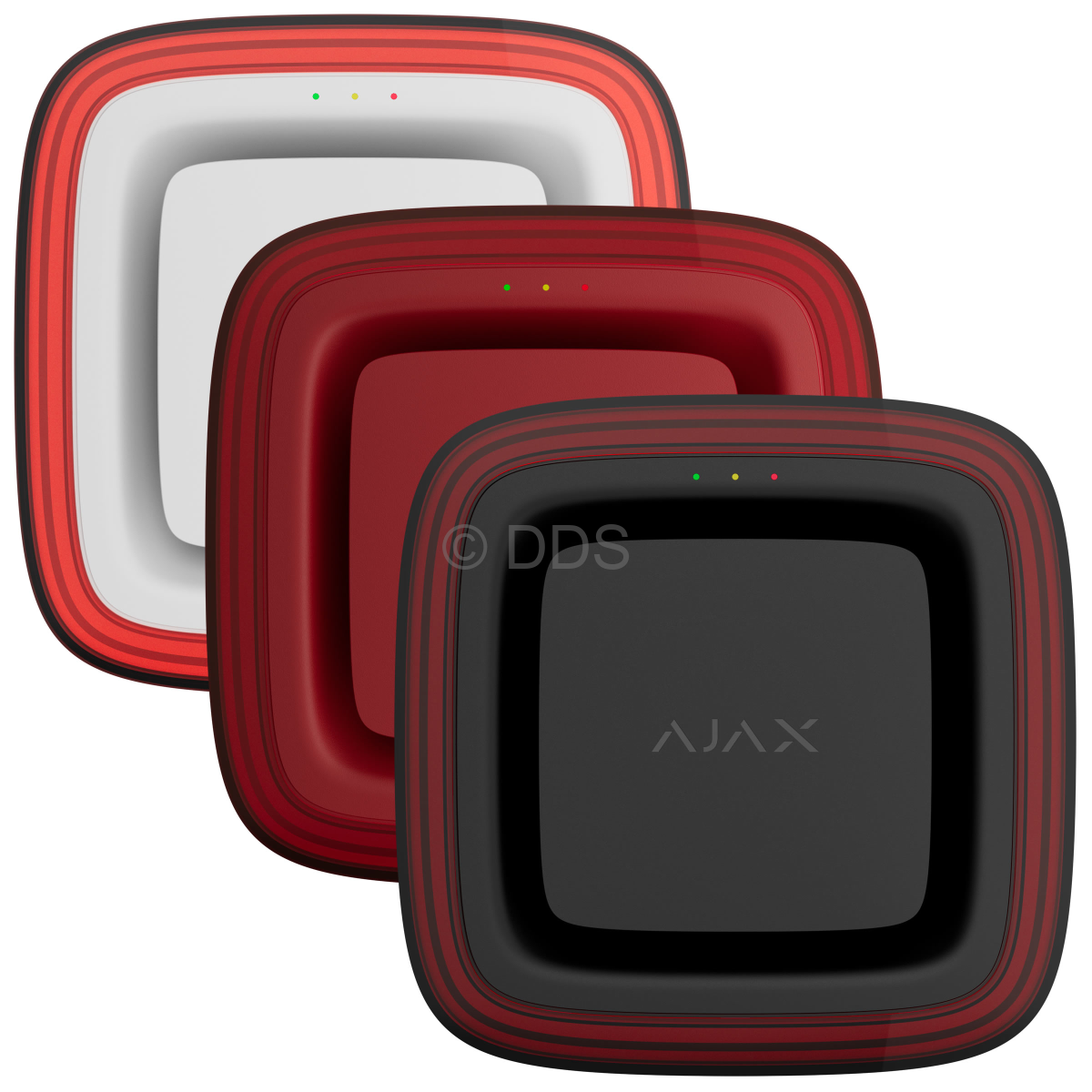

EN54 FireProtect (Sounder/VAD)
EN54 FireProtect Jeweller sounders and VADs are a fusion of signature Ajax user experience and EN 54-certified reliability. Within three seconds of a fire alarm, they deliver audible, visual, or combined alerts. Regardless of the version, the devices are equally suited for wall or ceiling mounting. Installation itself takes just minutes — no disassembly required, with built-in communicators already in place. Maintenance is just as effortless, thanks to real-time monitoring, early low-battery warnings in Ajax apps, and swift battery swap.
- Versatile installation: wall or ceiling
- Able to interconnect fire detectors (all fire detectors in the system turn on built-in sirens if at least one of the detectors registers an alarm)
- 100dB siren built-in
- Operates up to 5 years without battery replacement
Technical Specifications | |
Classification | Radio channel addressable fire alarm sounder combined with a visual alarm device (VAD) |
Installation method | Indoors and outdoors |
Compatibility | Operates with EN54 Fire Hub or Fire ReX |
LED indication | Red/Yellow/Green |
Alarm type | Sounder and LED frame |
Sound volume | Up to 100dB at a distance of 1m (adjusted in the App) |
Sound volume | 32 tones |
Sound synchronisation | An audible alarm is automatically synchronised on all devices with a sounder connected to the same CIE |
Flash frequency | 90 ms ON / 1,910 ms OFF (cycle duration: 2,000 ms; frequency: 0.5 Hz) |
Alarm annunciation test | To check the sound and visual alarm signals to ensure fire alarm signals are clearly audible and visible in the premises |
Installation recommendations | Ceiling: Up to 3m Wall: Up to 2.4m |
Jeweller radio technology | Communication range with central unit: up to 1,700 m in an open space Two-way communication between devices Operating frequencies: 868.0 - 868.6 MHz Self-adjusting RF output power: up to 20 mW Block encryption based on AES algorithm Device polling period: 12−300 s |
Power supply | Battery: 4x CR123A batteries Power supply voltage: 3V Battery life: up to 5 years |
Permissible humidity | Up to 80% |
Operating temperature range | -10°С to +50°С |
Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant Lock for SmartBracket |
Dimensions | 145mm x 145mm x 51mm |
Weight | 561g |
Certification | CE, IP54, UL 94 V-0, EN54-3, EN54-23, EN54-25 |
