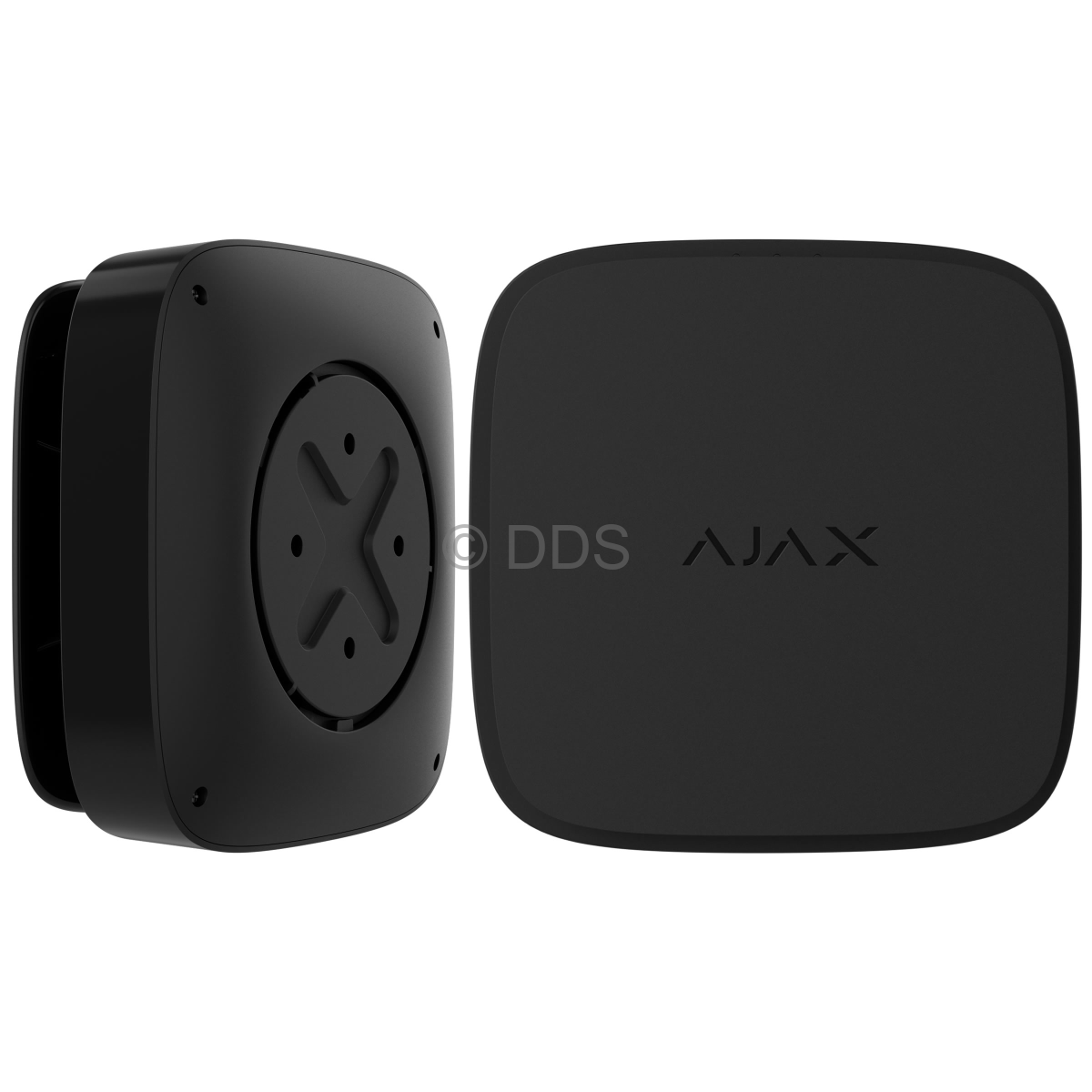

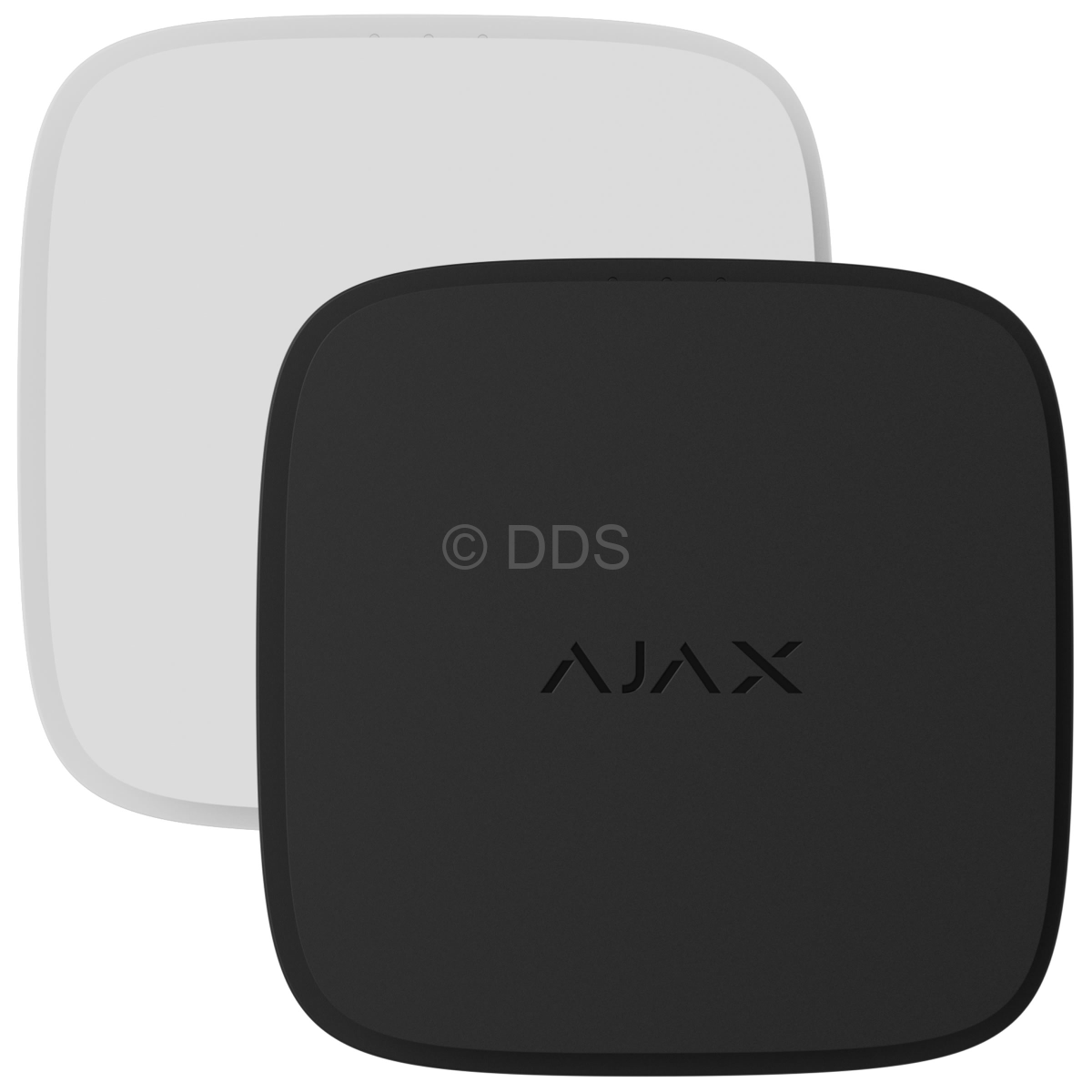

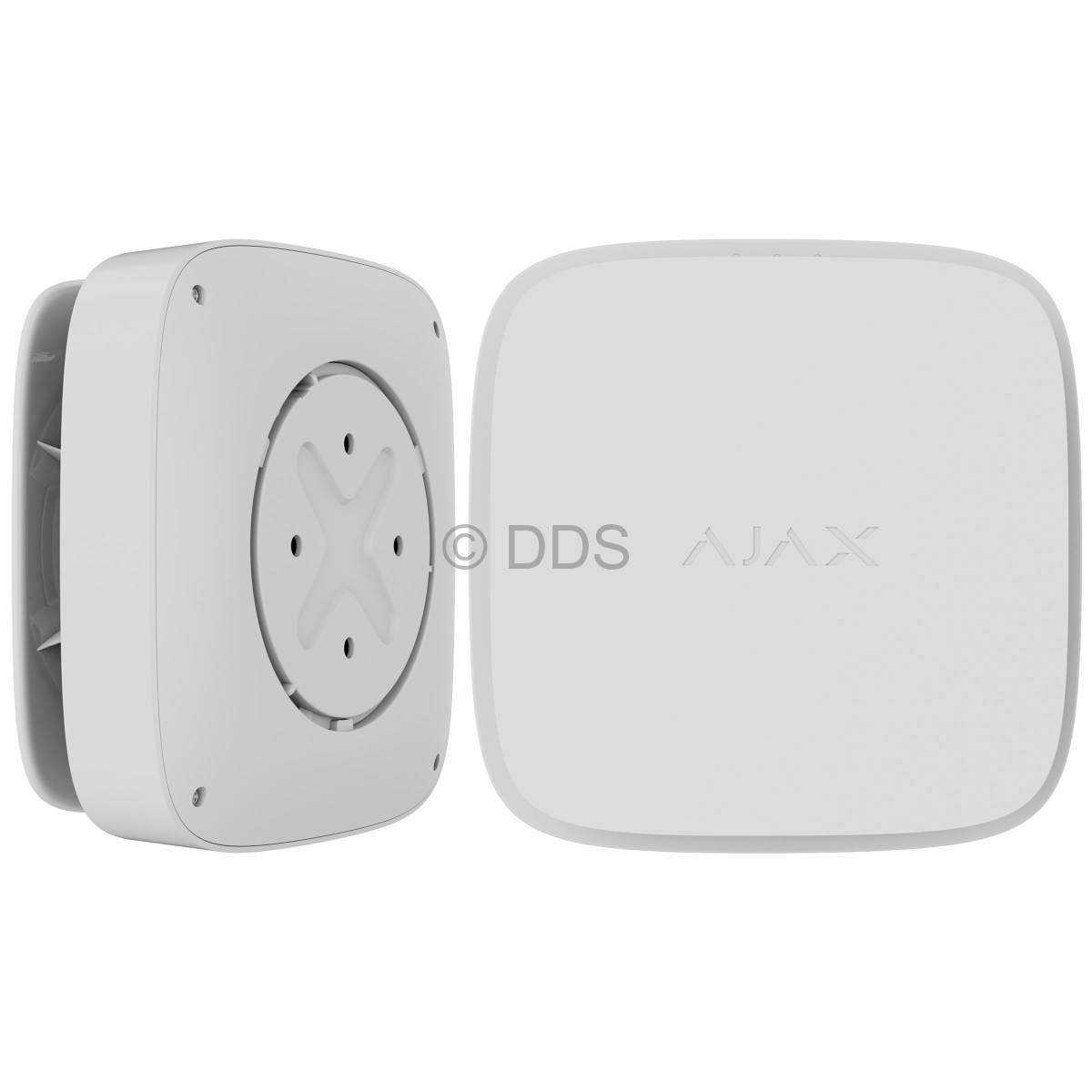

EN54 FireProtect (Heat/Sounder)
Save
100%
100%
EN54 FireProtect Jeweller detectors combine certified reliability with effortless installation. This wireless series includes addressable point smoke and heat detectors, some of them combined with built-in fire alarm sounders. Each detector provides best-in-class detection accuracy thanks to Ajax's patented smoke chamber with a dual-spectrum optical sensor and two accurate thermistors. With built-in communicators, long battery life, and stable radio communication, the devices are ready for different-scale projects. No need to open the enclosure or run cables — installation and configuration take just minutes via Ajax apps. Early service notifications and automated maintenance reports via Ajax PRO Desktop ensure the system stays easy to support for years.
- Supports multiple heat sensor modes
- Sound synchronisation (audible alarm is automatically synchronised on all devices with a sounder connected to the same CIE)
- 95dB siren built-in
- Operates up to 5 years without battery replacement
| Technical Specifications | |
| Classification | Radio channel detector with dual thermistor sensors and built-in siren |
| Installation method | Indoors |
| Compatibility | Operates with EN54 Fire Hub or Fire ReX |
| Sensing elements | 2x thermistor |
| Heat sensor modes | A1, A1R, A1S B, BR, BS C, CR, CS Fixed temperature |
| LED indication | Red/Yellow/Green |
| Sound volume | Up to 95dB at a distance of 1m (adjusted in the App) |
| Sound pattern | 32 tones |
| Sound synchronisation | An audible alarm is automatically synchronised on all devices with a sounder connected to the same CIE |
| Alarm annunciation test | An audible alarm check to ensure the fire alarm is clearly audible on the premises |
| Jeweller radio technology | Communication range with central unit: up to 1,700 m in an open space Two-way communication between devices Operating frequencies: 868.0 - 868.6 MHz Self-adjusting RF output power: up to 20 mW Block encryption based on AES algorithm Device polling period: 12−300 s |
| Power supply | Battery: 2x CR123A batteries Power supply voltage: 3V Battery life: up to 6 years |
| Permissible humidity | Up to 80% |
| Operating temperature range | 0°С to +50°С |
| Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant Lock for SmartBracket |
| Dimensions | 124mm x 124mm x 48mm |
| Weight | 278g |
| Certification | CE, IP21C, UL 94 V-0, EN54-3, EN54-5, EN54-25 |
