Ajax EN54 Fire Hub

Call us for a price



PRE-ORDERS ONLY

AJX-EN54-HUB(125732)

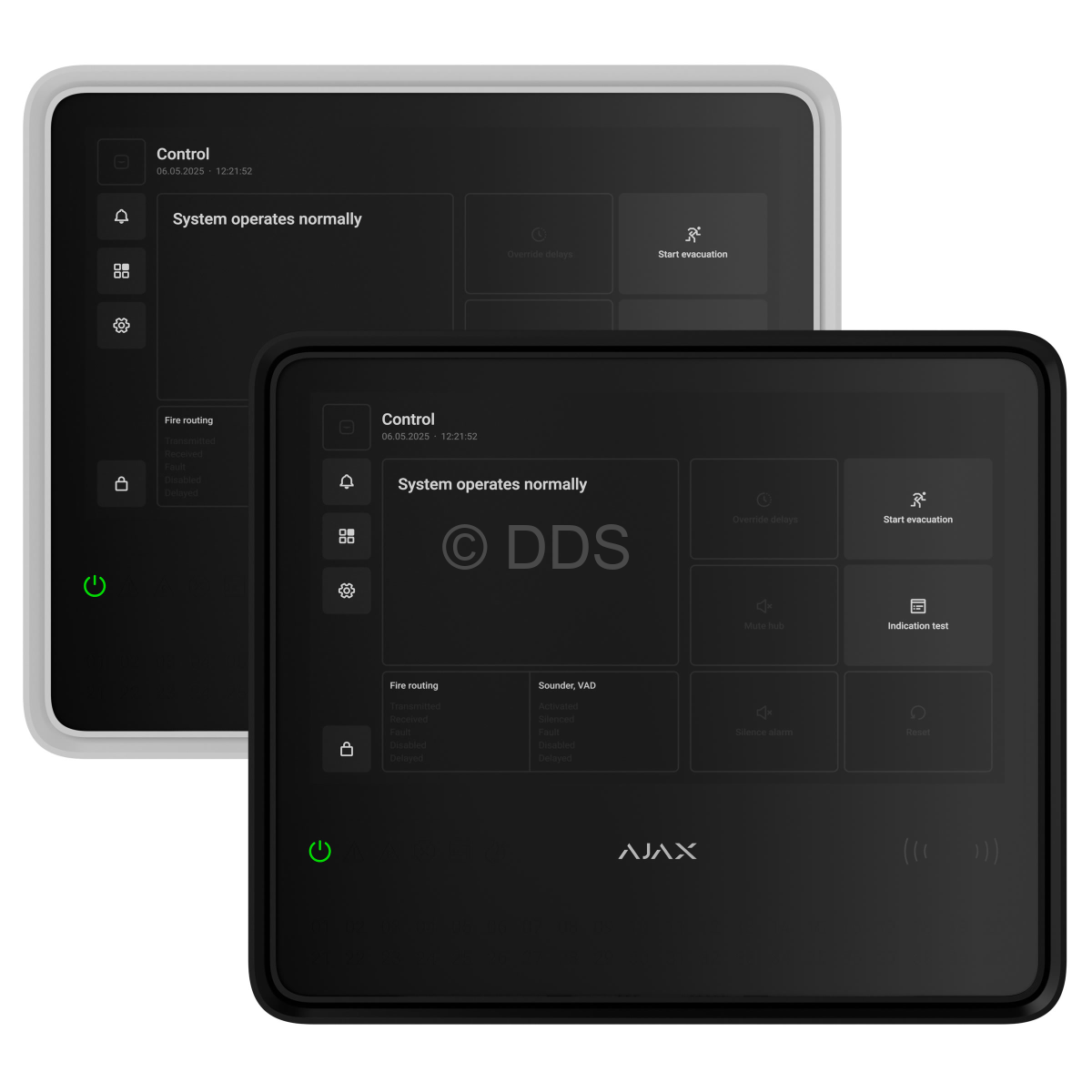

Introducing EN54 Fire Hub Jeweller, Ajax's touchscreen CIE designed for all-around management of a fire safety system. It's easy to install, simple to use, and requires minimal upkeep. Built-in communicators and a fully wireless device connection allow the system to be quickly deployed and connected to monitoring stations through Ajax apps. With its large touch screen and intuitive interface, the CIE provides detailed system status and alarm notifications, ensuring that staff are immediately aware of any situation.

The CIE also supports EN 50131 (Grade 2) intrusion protection, video surveillance, and automation devices, making it a unified solution for commercial and municipal sites. Each alarm can be supported by visual verification, helping guide the facility staff on responding to the emergency.

- Connect up to 200 devices to the hub
- Up to 40 fire zones
- 10.1" touchscreen
- Connects using Ethernet, Wi-Fi or 2G/4G
- Built-in 60dB buzzer
- Supports internal battery (24hr or 72hr)
- Compatible with iOS and Android



Technical Specifications
Classification CIE (Control and Indicating Equipment) with a 10.1" touchscreen
Maximum number of devices connected to the hub 200
Maximum number of fire zones 40
Maximum number of users 200
Maximum number of rooms 80
Maximum number of groups 25
Number of REX connected 5
Scenarios supported 64
Event Log Up to 5,000 events
Video surveillance Up to 36 Ajax NVRs
Up to 224 Ajax cameras via Ajax NVRs
Up to 492 standalone cameras
Display 10.1" IPS capacitive touchscreen
Resolution 1024 x 600
Backlight lifetime 50,000 hours (guaranteed lifetime when brightness is set to 80%)
Contactless access Ajax Pass cards or Tag fobs (up to 200)
Access codes Up to 200
Communication channels Ethernet (Up to 100Mbps)
Wi-Fi (Up to 72Mbps)
2G/4G
Alarm signal Delivery time: 0.15 s
Types of notifications: SMS message, call, push
Communication with Central Monitoring Station SurGard (Contact ID), SIA (DC-09)
Relay outputs Output 1: NC
Output 2: NO
For sending fault events to the monitoring software
SIM card support 2 x Micro-SIM 2G
Operating temperature range -5°С to +40°С
Anti-sabotage Protection against fraud
Jamming detection
Tamper-resistant
Power supply Mains supply: 110-240V
Battery backup: Li-ion 7.4V battery with 5 or 10Ah capacity (sold seperately)
Dimensions 263mm x 223mm x 54mm
Weight 1,526g
Certification EN 54-2, EN 54-4, EN 54-13, EN54-21, EN54-25, Grade 2 (EN 50131), PD6662:2017, CE, IP20, UL 94 V-0
