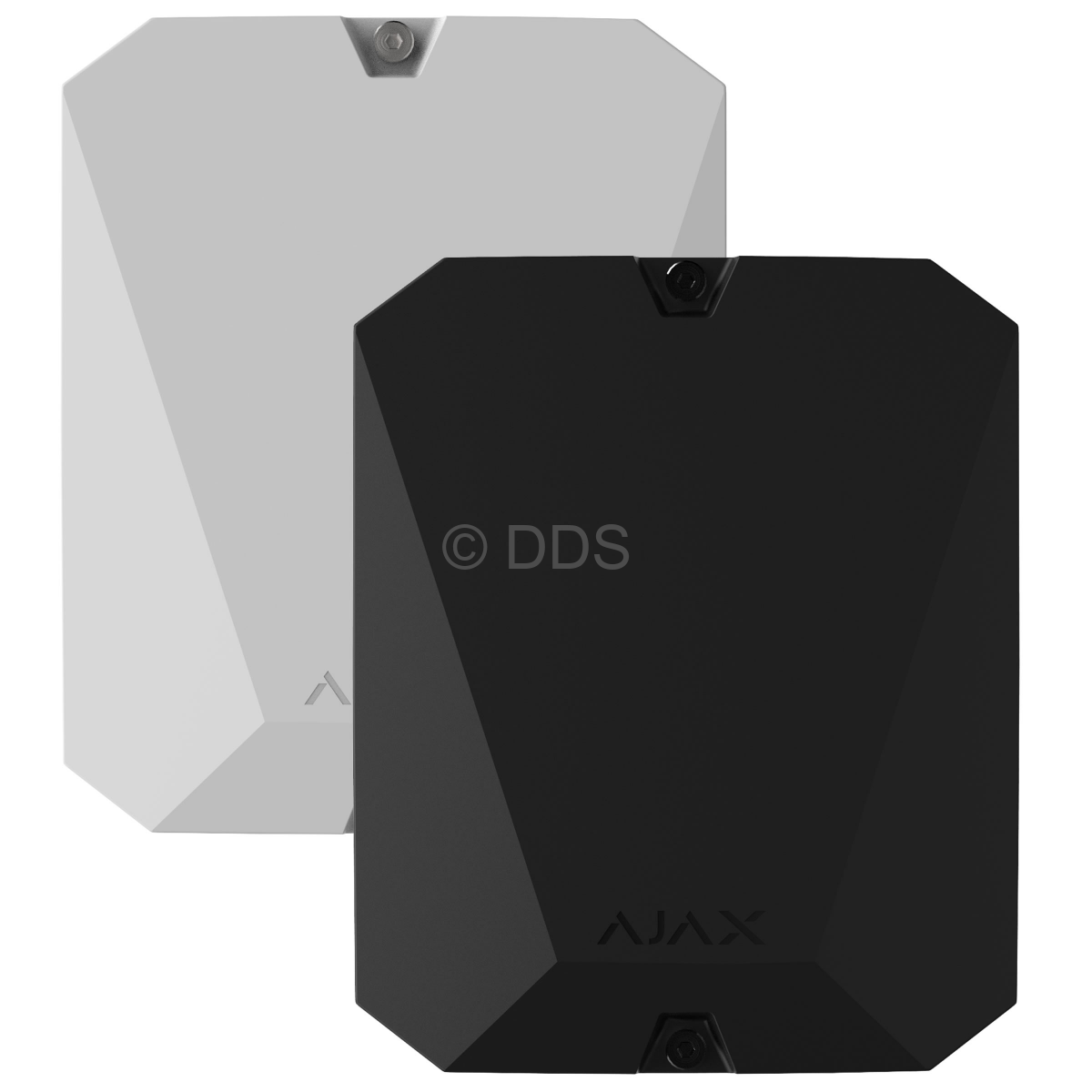

MultiTransmitter for 3rd Party Detectors (3EOL)
Save
100%
100%
Wireless module for connecting multiple wired outdoor motion detectors, IR barriers, liquid level detectors, and gas detectors, thermal relays and any third-party devices to the Ajax security system. It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened.
- Converts third-party detectors to the Ajax full-featured devices
- Up to 18 detectors
- Supports 2EOL and 3EOL connections
- Output of 12V DC for all detectors
- Supports a backup battery (see here)
| Technical Specifications | |
| Classification | Module for third-party detector integration |
| Installation method | Indoors |
| Compatibility | Operates with Hub, Hub Plus, Hub 2, Hub 2 Plus and ReX |
| Number of alarm/tamper zones | 18 |
| Supported detector contact types | NO, NC (without R), EOL (NC with R), EOL (NO with R) |
| Resistance of the EOL resistor | 1 kΩ to 7.5 kΩ |
| Alarm signals processing mode | Pulsed or bistable |
| Protection against dismantling | Tamper |
| Alarm signal delivery time | 0.15s |
| Radio signal frequency band | 868.0–868.6 MHz |
| Mains Power supply | 110–255 V, 50/60 Hz |
| Backup Power | 12V DC |
| Supported battery type | Battery with 4 or 7 A⋅h capacity (not included) |
| Detector power supply | 12V DC, up to 1 A for all detector power supply outputs |
| Maximum radio signal power | Up to 7.29 mW (25 mW limit) |
| Operating temperature range | -10°С to +40°С |
| Operating humidity | Up to 75% |
| Dimensions | 196mm х 238mm x 100mm |
| Weight | 805g |
