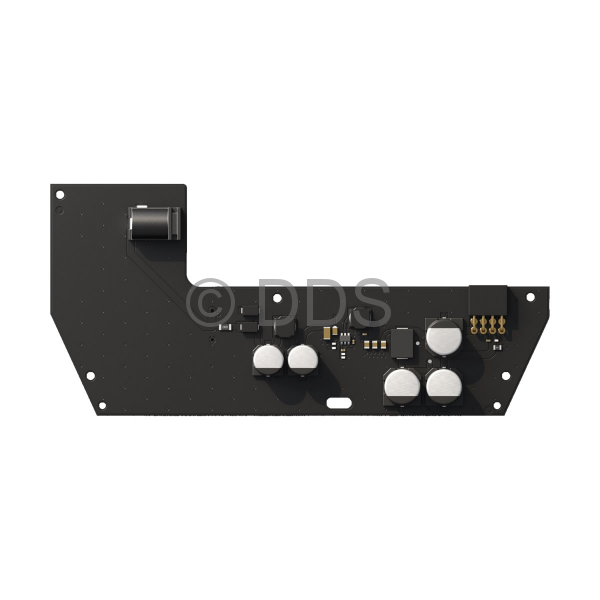

12V PSU for Hub/Hub Plus/ReX

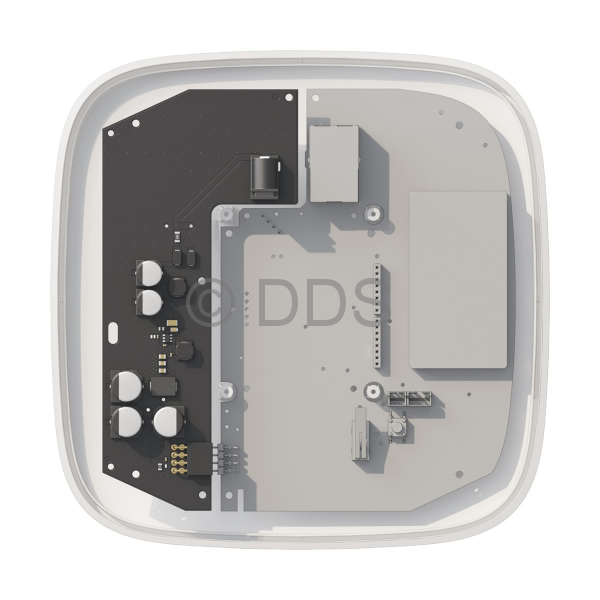

A power supply unit, connecting Hub/Hub Plus control panels and ReX radio signal range extender to low-voltage power sources. This allows you to use Ajax in premises lacking electricity or having an unstable power supply. A 12V power supply unit allows connecting hubs and radio signal extenders to low-voltage networks or use a portable battery. The 12V PSU is installed into the device body, replacing the pre-installed 110/230 V power supply unit.
- Allows Ajax control panels to be used with 12V DC
- Can be used with a portable battery for caravans, trailers or yachts
- Features a standard socket for connecting the power jack plug and has a bundled terminal adapter.
|Classification||12V Power Supply Unit|
|Compatibility||Operates with Hub, Hub Plus, and ReX|
|Input voltage||8-20V DC|
|Output voltage||4.65 V ± 3%|
|Switch-on voltage||8 V ± 2.5%|
|Switch-off voltage||6.9-7.5 V (depending on load)|
|Input current||<1 А|
|Connection||Socket: 6.5 × 2 mm
Plug: 5.5 × 2,1 mm (power jack)
|Dimensions||138mm x 64mm x 13mm|
