Transmitter for 3rd Party Detectors

Save 100%
Transmitter for 3rd Party Detectors
Call us for a price

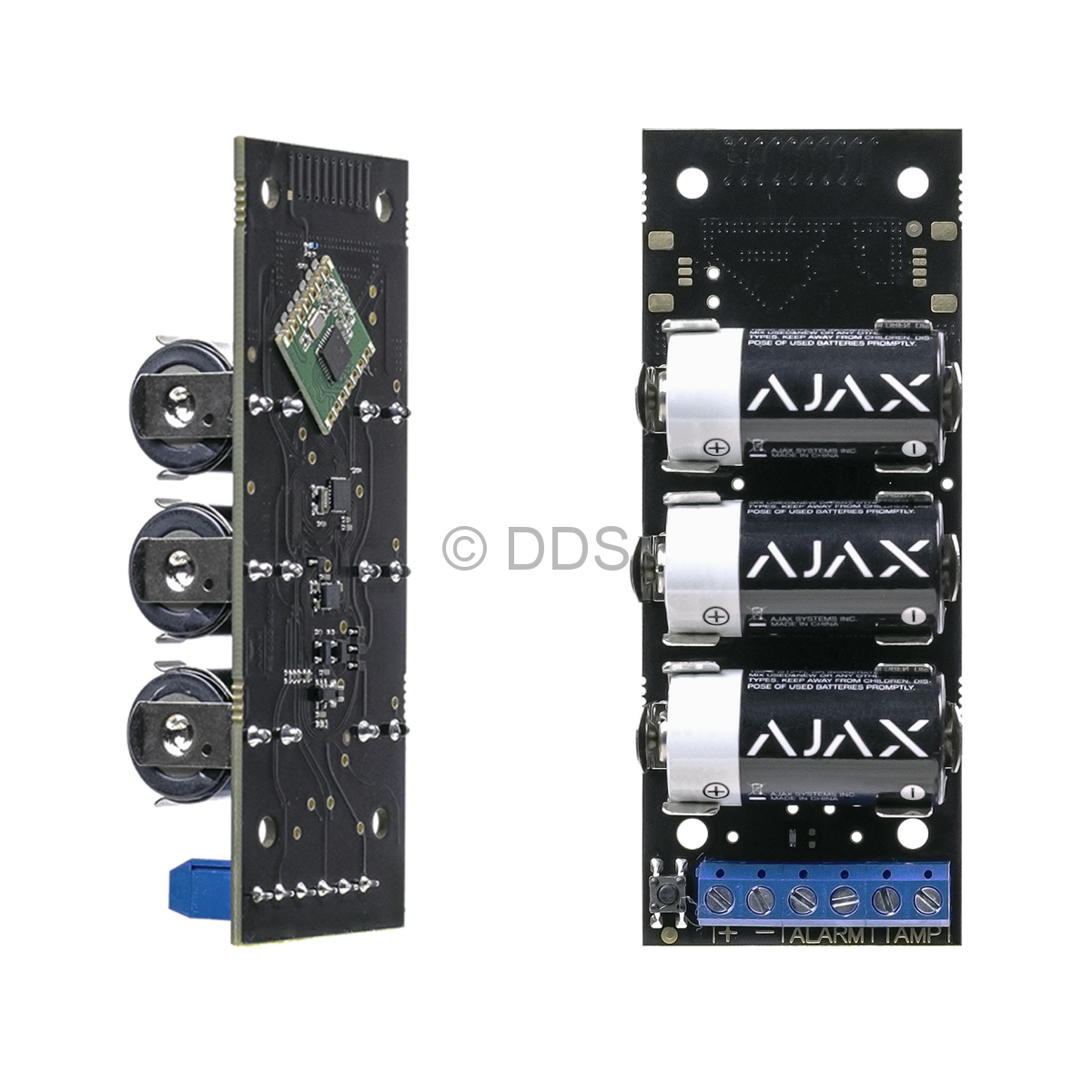

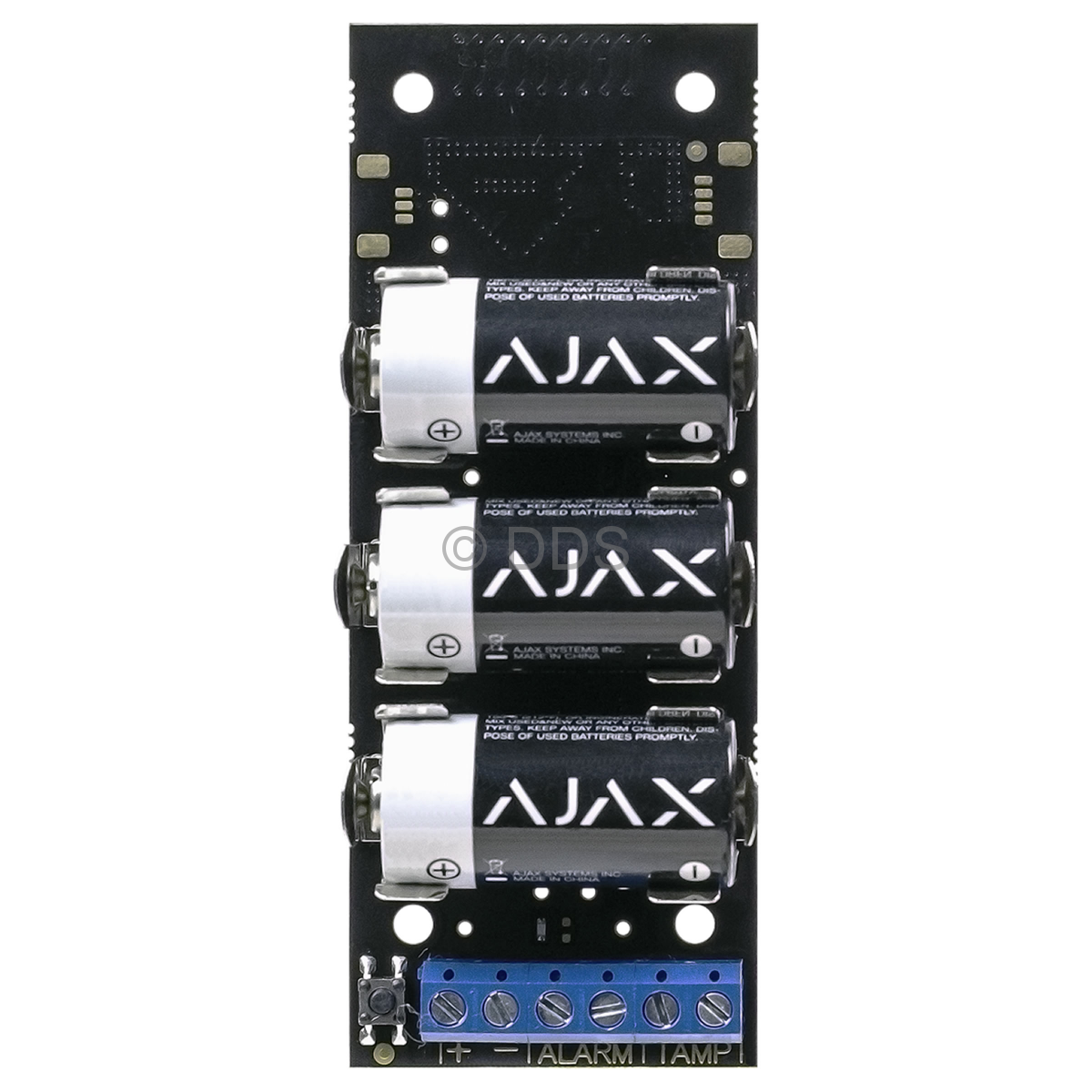

AJX-TX(10306)

Wireless module for connecting wired outdoor motion detectors, IR barriers, liquid level detectors, and gas detectors, thermal relays and any third-party devices to the Ajax security system. It is protected by an accelerometer to detect removal and raises the alarm if the detector connected to the module is opened.

- Converts third-party detectors to the Ajax full-featured devices
- Can be used as a power supply for third-party devices, for up to 5 years
- Output of 3.3V
- Grade II (EN 50131)
- Operates up to 3 years without battery replacement



Technical Specifications
Classification Module for third-party detector integration
Installation method Indoors/outdoors
Compatibility Operates with Hub, Hub Plus, Hub 2, and ReX
Alarm input 1
Tamper input 1
Power supply current Terminals +/−
Power supply output

3.3V

Battery charge indication Yes
Alarm signal delivery time 0.15s
Jeweller radio technology Communication range with central unit: up to 1,600 m in an open space
Two-way communication between devices
Operating frequencies: 868.0 - 868.6 MHz
Self-adjusting RF output power: up to 20mW
Block encryption based on AES algorithm
Device polling period: 12−300 s
Power supply Battery: Three CR123A batteries
Power supply voltage: 3V
Battery life: up to 5 years
Permissible humidity Up to 75%
Operating temperature range -25°С to +50°С
Anti-sabotage Protection against fraud
Jamming detection
Accelerometer to detect removal
Dimensions 100mm х 39mm × 22mm
Weight 74g
Certification Grade 2 (EN 50131), CE
