12V PSU for Ajax NVR

Home/Ajax Alarms/Ajax Accessories/12V PSU for Ajax NVR

2 of 18

Save
100%

Call us for a price

Order Code: AJX-12VPSU-NVR(112255)

Description

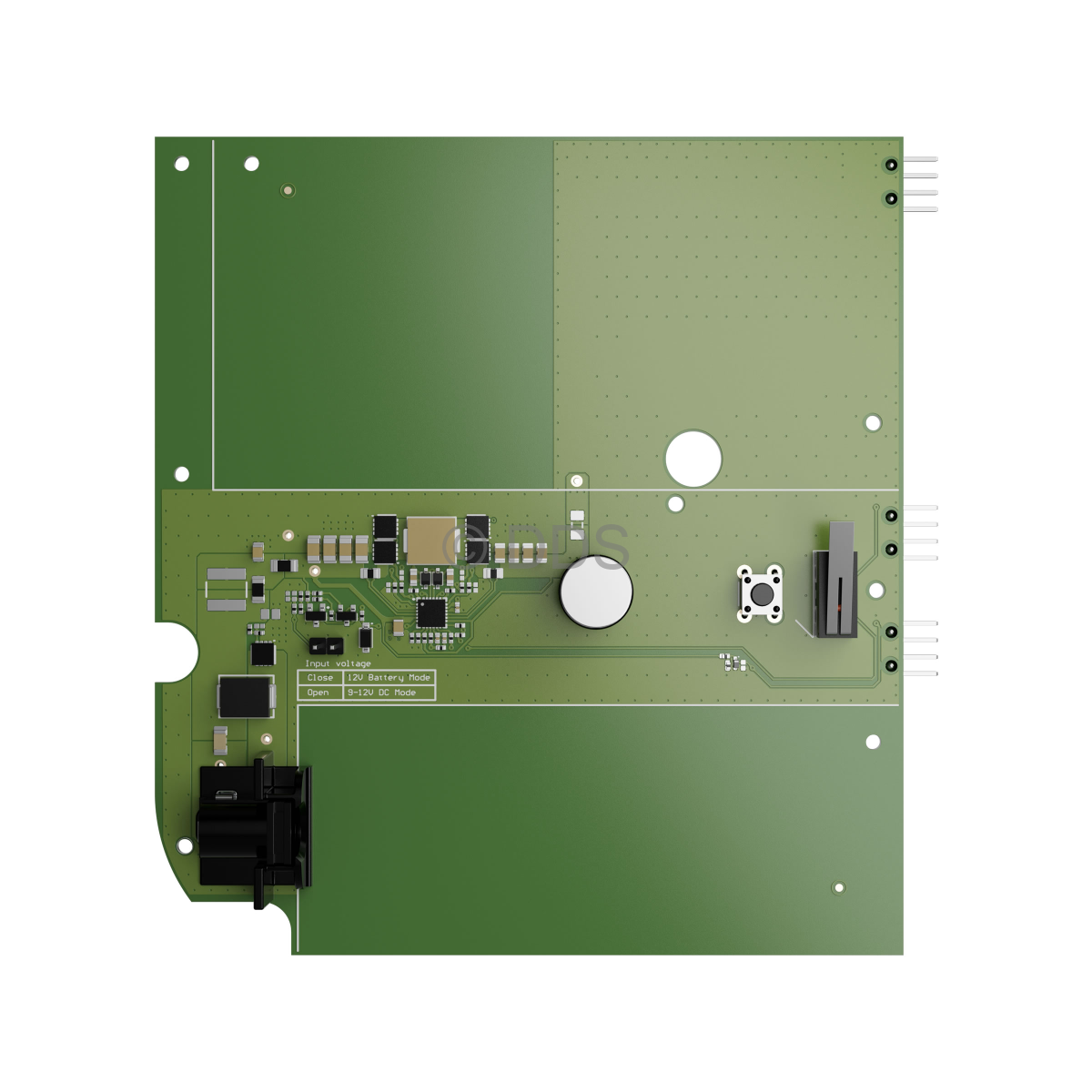

12V PSU for NVR is an electronic board that is installed into the video recorder enclosure, replacing the standard 110/230 V~ power supply unit. With the alternative power supply unit, an Ajax NVR can operate on a low-voltage power source instead of the facility’s power grid. This setup ensures continuous video recording, making it ideal for protecting property with unstable or no power supply.

- Allows Ajax control panels to be used with 8-16V DC
- Can be used with a portable battery for caravans, trailers or yachts
- Features a standard socket for connecting the power jack plug and has a bundled terminal adapter

Technical Specifications
Classification	12V Power Supply Unit
Compatibility	Operates with NVR
Operating voltage	Without jumper: 8-16 V With jumper: 12.1-16 V
Maximum current consumption	Up to 4A
Switch-on voltage	Without jumper: 8.1 V With jumper: 12.1 V
Switch-off voltage	Without jumper: 8.0 V With jumper: 10.35 V
Connection	Socket: 6.5 mm x 2mm Plug: 5.5mm x 2.1mm (power jack)
Dimensions	118mm x 123mm x 17mm
Weight	51g
