6V PSU for Hub2/Hub2 Plus/ReX2

Home/Ajax Alarms/Ajax Accessories/6V PSU for Hub2/Hub2 Plus/ReX2

3 of 16

Save
100%

Call us for a price

Order Code: AJX-6VPSU(20763/38213)

Description

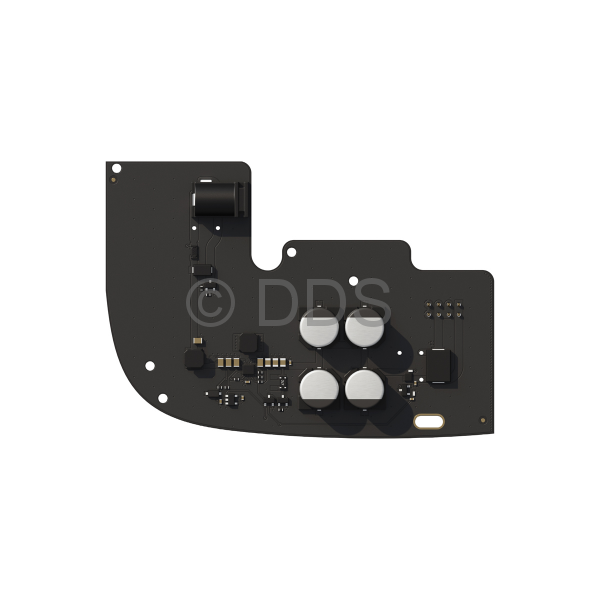

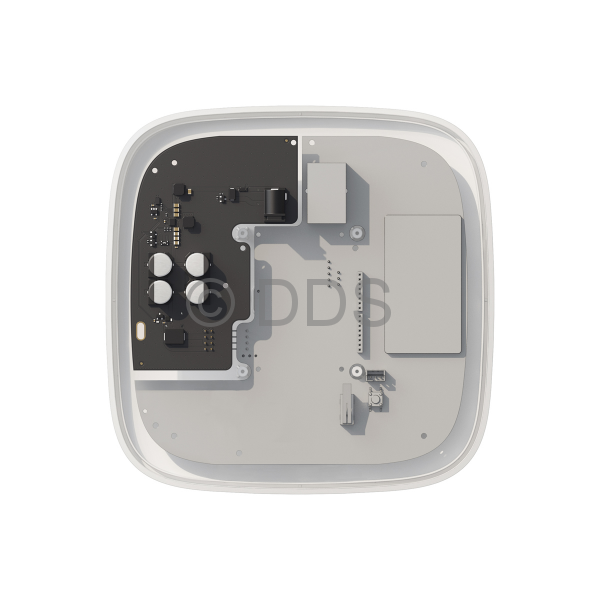

A power supply unit for connecting Hub2 or Hub2 Plus to low-voltage power sources. This allows you to use Ajax in premises lacking electricity or having an unstable power supply. A 6V power supply unit allows connecting hubs to low-voltage networks or a portable battery. The 6V PSU is installed into the device body, replacing the pre-installed 110/230V power supply unit.

- Allows Ajax control panels to be used with 6V DC
- Can be used with a portable battery for caravans, construction sites, or abandoned properties
- Features a standard socket for connecting the power jack plug and has a bundled terminal adapter.

Technical Specifications
Classification	6V Power Supply Unit
Compatibility	Operates with Hub 2, Hub 2 Plus and ReX 2
Input voltage	4.2-10V
Output voltage	4.8 V ± 5%
Switch-on voltage	4.2 V ± 2.5%
Switch-off voltage	3-3.4 V (depending on load)
Input current	Up to 1A
Output current	Up to 1.5A
Connection	Socket: 6.5 × 2 mm Plug: 5.5 × 2.1 mm (power jack)
Dimensions	98mm x 70mm x 17mm
Weight	26g
