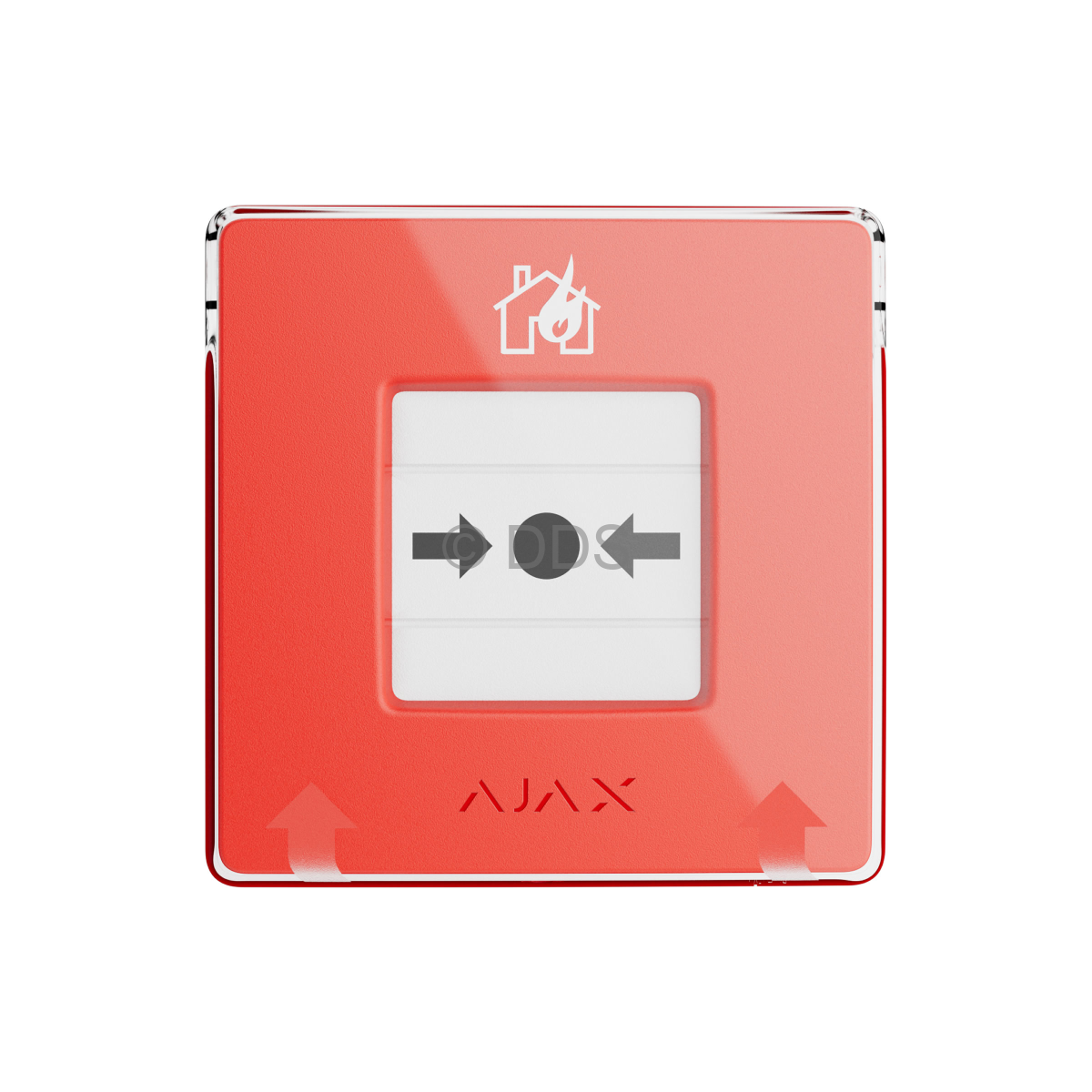

ManualCallPoint (Red)

Call us for a price

AJX-CALLP-RED(60815)

ManualCallPoint is a fast and straightforward way for anyone to activate the fire alarm. Pressing the button triggers the built-in sirens of all fire detectors in the system and informs the users. Meanwhile, the central monitoring station (CMS) receives the alarm and calls emergency services. All the data is instantly available in Ajax apps: which device was triggered, when, and where. In a life-endangering situation, Ajax innovative features follow an alarm in seconds: automation scenarios de-energize the facility, turn the emergency lights, and unlock the exits. The button can also activate intrusion sirens and automation scenarios.

- Transparent front lid to prevent accidental alarm activation
- Simplified button mechanism to reduce the risk of failure
- LED indication of the alarm state
- Operates up to 7 years without battery replacement

Technical Specifications
Classification Manual fire call point
Installation method Indoors
Compatibility Operates with Hub Plus, Hub 2, Hub 2 Plus, Hub Hybrid, ReX, and ReX 2
Sensing element Resettable frangible element
Alarm signal delivery time 0.15s
Operating modes Fire alarm
Scenario trigger
LED status indication Fire alarm
Malfunctions
Interconnected fire detectors alarms By pressing the button
Jeweller radio technology Communication range with central unit: up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies: 868.0 - 868.6 MHz
Self-adjusting RF output power: up to 25 mW
Block encryption based on AES algorithm
Device polling period: 12−300 s
Power supply Battery: Two CR123A batteries
Power supply voltage: 3 V
Battery life: up to 7 years
Permissible humidity Up to 80%
Operating temperature range 0°С to +50°С
Anti-sabotage Protection against fraud
Jamming detection
Tamper-resistant
Dimensions 102mm х 104mm x 39mm
Weight 214g
Certification EN 54-11:2001/A1:2005
