Licence Plate IP Camera (ANPR, Alarms)

Save 100%
Supports StarView (colour at night) ANPR (License Plate Recognition) Number Plate Recognition IP Camera | ANPR
Call us for a price
HC121@TCR-08S-Z

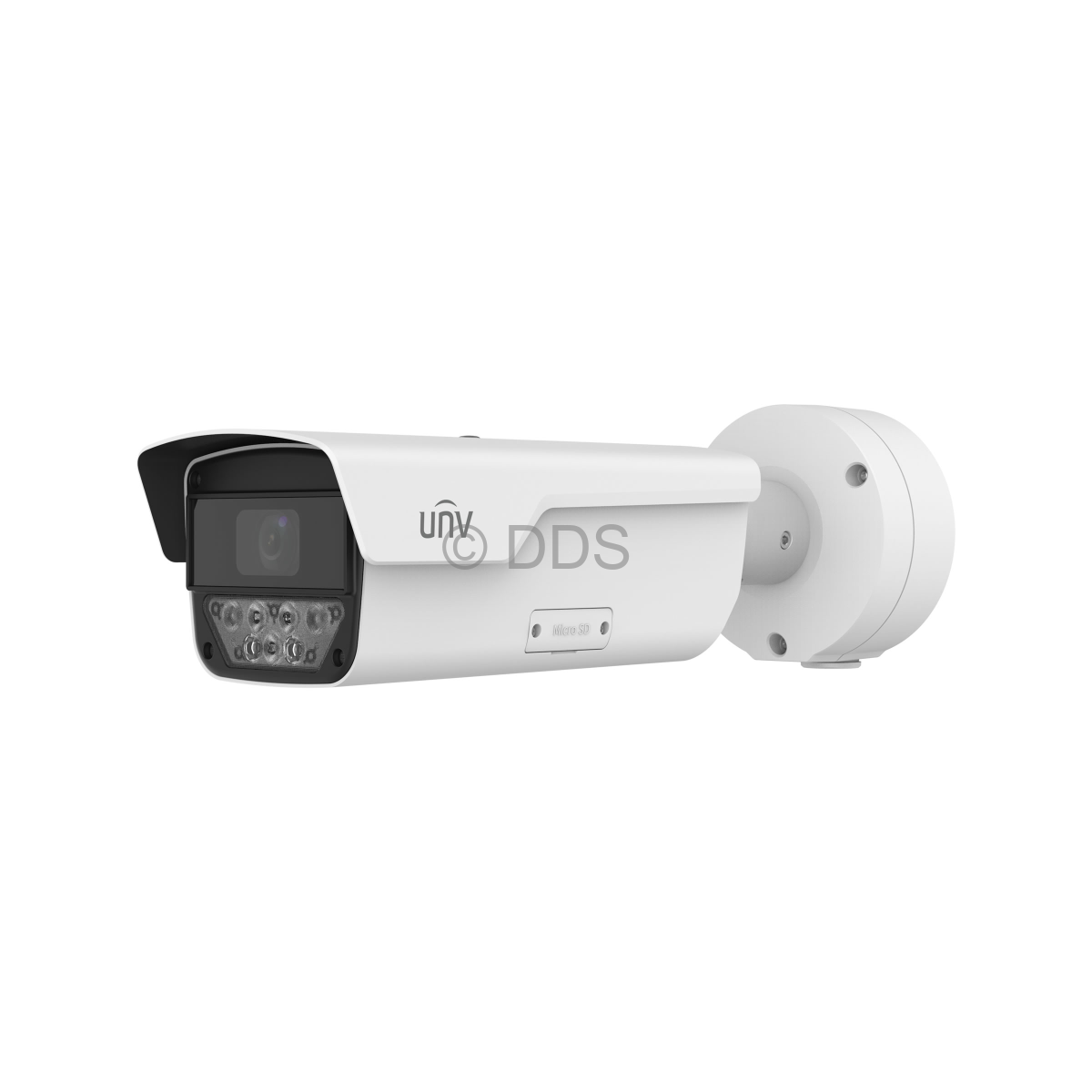

Part of the UNV professional range, this ANPR (Automatic Number Plate Recognition) IP camera boasting an impressive 2 megapixel HD recording resolution and a motorised 4.7-47mm auto-focusing lens. This camera has the Starlight chipset, allowing for full colour at night. Supporting H.265 compression and 50m of IR range.

- Vehicle Detection & Number Plate Recognition (see Special Features)
- Resolution 2MP (1920 x 1080), POE
- Motorised 4.7-47mm Lens
- Smart IR, Up To 50m IR Range
- Anti-Reflection Design To Improve IR Effectiveness
- Boolean 2 In/1 Out, RS-485
- MicroSD Card Slot (see Special Features)
- WDR, OSD, Triple Streams, ONVIF
- Supports H.264, H.265
- Temperature Range -40°C to 60°C
- Wide voltage range of ±25%
- IP67

Camera

Image Sensor:
Sony Starlight CMOS (1/2.8")
Resolution:
2MP
Effective Pixels (H x V):
1920 x 1080
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1/25~1/100000s
Signal-to-noise Ratio:
≥52dB
Iris:
Electronic
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Motorised 4.7-47mm Lens
Scanning:
Progressive Scan
Onboard Recording:
8GB built-in / MicroSD card up to 256GB

Day/Night

Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.001Lux, 0Lux with IR on
IR Range:
45-50m
IR Control:
CDS Auto

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile S)
POE:
Yes
Main Stream:
1920x1080@60fps
Sub Stream:
1280x720@60fps

General

Power:
12V DC (+/- 25%) / 24V AC (+/- 25%) / PoE (IEEE802.3at)
Housing:
Metal
Power Consumption:
Max ≤20W
Operating Temperature:
-40°C ~ +60°C
Operating Humidity:
0% - 90% RH
Ingress Protection:
IP67
Approvals:
CE / FCC
Weight:
1.65kg

Interface

Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Boolean input (x2), Boolean output (x1)

All dimensions are in millimetres (mm)

TR-JB07-D-IN

- Outdoor or indoor cable junction box for IPC222x/23xx/252x/26x and IPC74X series (Extra back outlet)
- 125mm x 125mm x 55mm
- Weight: 750g

Call us for a price
TR-UP06-B-IN

- Outdoor, pole or rail installation for the IPC22x, IPC24x and IPC212x (square base) cameras
- 99mm x 90mm x 38mm
- Weight 200g

Call us for a price
TR-A01-IN

- Plastic waterproof joint
- Ideal for internal and external use
- Ø37mm x 46mm

Call us for a price

This camera has the following special features:

ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR (requires a PRO B-Series NVR).



LPR (License Plate Recognition)

LPR is the ability to automatically analyse video to detect vehicles and number plates. This camera has the capability to do the following:

  • Vehicle detection and recognition
  • Trigger mode: Video detection, Inductive loop detection, video-loop detection
  • Support for number plate cutout, overview picture snapshot and video recording
  • Built-in database to whitelist/blacklist vehicles, and to control barriers



Starview
Starview is the technology which allows for outstanding image at super low illumination during the night for both static and moving scenes. This also means that the camera can display full colour at night. In technical terms, it enhances SN (signal-to-noise) by 17dB at 0.01 lux environment; this in turn increase both clarity and image color at least 25% visually.

Tip: Watch in full screen mode
