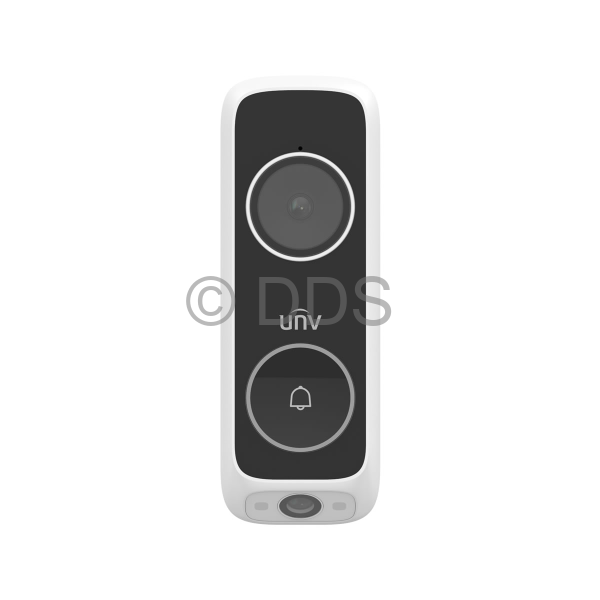

Uniview Dual Lens Doorbell (WiFi, Mic, Speaker)

Call us for a price



*Estimated arrival: End of May*

ED-525-WB

Part of the UNV range, this doorbell camera has a 3MP front-facing camera for observing visitors and a 2MP downward-facing camera to monitor the ground for parcels. Supporting Ultra265 compression, up to 5m of IR range and up to 2m of White Light.  This doorbell has a built-in speaker and microphone, allowing for 2-way communication. It has built-in 8GB of eMMC storage, which records events, and can also be connected to a Uniview NVR.

- Main Camera, 3MP with Viewing Angle 116° (H)
- Sub Camera, 2MP with Viewing Angle 96.8° (H)
- Smart IR, Up To 5m IR Range
- Up to 2m of White Light
- Built-in Microphone and Speaker
- Human body and parcel detection

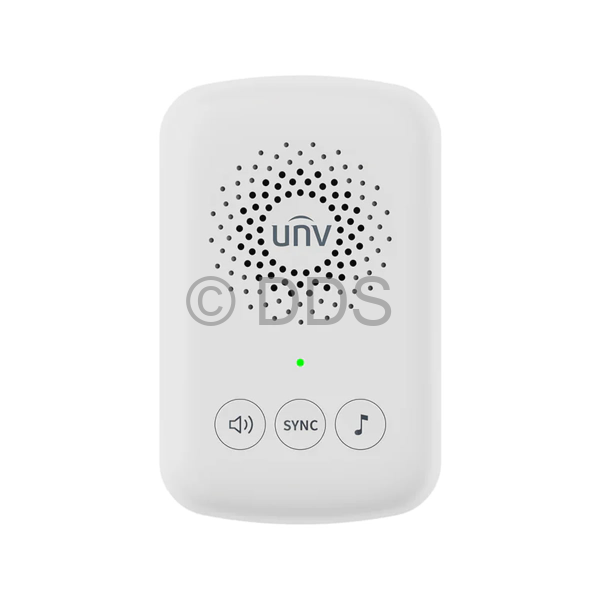

- Supports Sub-1GHz chime (1 supplied)
- Anti-Reflection Design To Improve IR Effectiveness
- Day/Night or Full Colour, IR Cut Filter, 3D DNR
- WDR, OSD, Dual Streams
- Supports H.264 and H.265
- ONVIF Compliance (Profile S)
- Temperature Range -30°C to 60°C
- Wide voltage range of ±25%
- Metal Housing, IP65 Rated

Camera

Effective Pixels (H x V):
Top: 2048 x 1536 | Bottom: 1920 x 1080
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual
Signal-to-noise Ratio:
≥52dB
Iris:
Electronic
Wide Dynamic Range:
120dB
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Fixed 2.4mm Lens
Field of View:
Top: 116° | Bottom: 96.8°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to built-in 8GB eMMC

Day/Night

Day & Night:
IR Cut Filter (Smart IR)
IR Range:
5m
IR Control:
CDS Auto
White Light Range:
2m

Network

Wi-Fi:
IEEE 802.11b/g/n/ax
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile S)
POE:
N/A
Main Stream:
Top: 2048 x 1536@15fps Bottom: 1920x1080@25fps
Sub Stream:
704x576@25fps
Antenna :
2.4GHz / 5GHz

General

Power:
AC 16-24V / DC 12V
Housing:
Metal
Power Consumption:
Max 10W
Operating Temperature:
-30°C ~ +60°C
Operating Humidity:
0% - 95% RH
Ingress Protection:
IP65
Weight:
142g

Interface

Built-in Microphone:
Yes
Built-in Speaker:
Yes
Reset Button:
Yes
Control:
Call Button

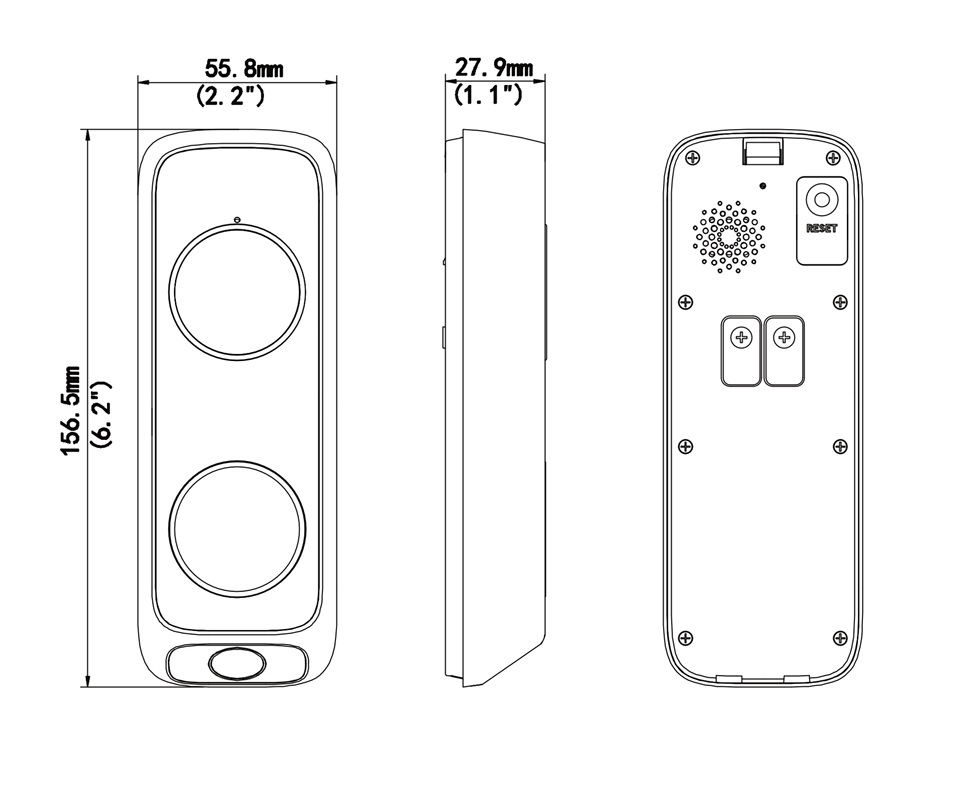

All dimensions are in millimetres (mm)

Dimensions of Uniview Doorbell (ED-525B-WB)
