Established in 2005 (UK)

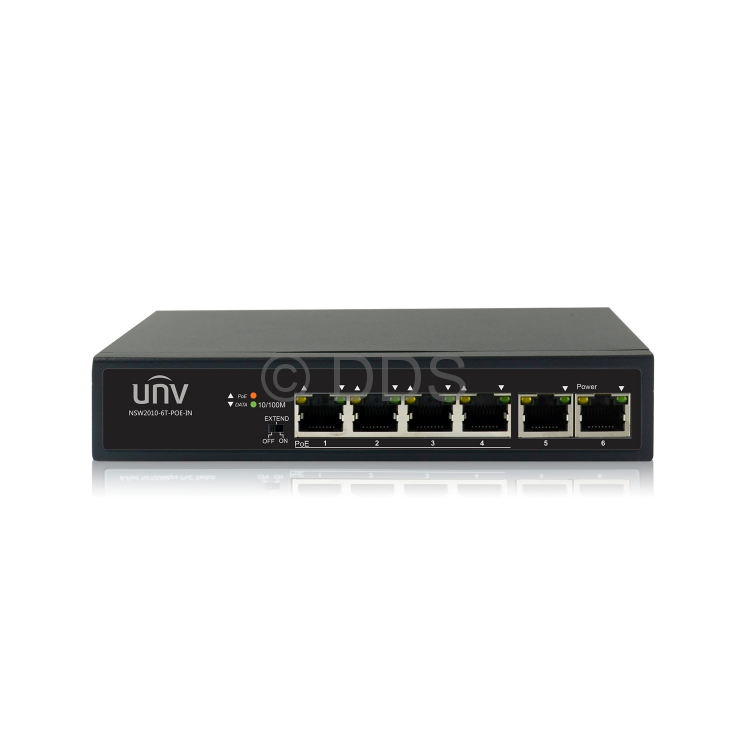

Uniview POE Ethernet Switch (4 Ports, 2 Uplinks)

Home/Uniview IP/Uniview POE Switches/UNV 100Mbps POE Switches/Uniview POE Ethernet Switch (4 Ports, 2 Uplinks)

4 of 7

Save
100%

Call us for a price

Order Code: NSW2010-6T-POE-IN

Description

- 4x 100Mbps POE Ports + 2x 100Mbps Uplink Ports
- Total output power 65 watts
- POE+ (max. 30W per port)
- Can supply POE up to 250 meters (in surveillance mode)
- Switch capacity: 1.2Gbps, Forwarding Performance: 0.90Mbpps, MAC Address Table: 2K
- 48vDC POE Power

Technical Specifications
Ports	4 x 100Mbps POE ports + 2 x 100Mbps Uplinks
Standards	IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at
Switching Capacity	1.2Gbps
Forwarding Performance	0.90Mpps
Packet Buffer	768Kbit
MAC Address Table	2K
POE	802.3at/af
Max. PoE Power	Max capacity: 65W Max capacity for single port: 30W
Cooling Fans	0
Working Temperature	0°C - 45°C
Indicator	PWR: Steady on: AC input is normal Off: No AC input PoE: Off: No PoE power supply Steady on: PoE power supply is normal Flashing: PoE power supply is abnormal LINK/ACT: Off: No link Steady: Linked at 10/100Mbps Flashing: Transmitting data Speed: Off: Linked at 10/100Mbps On: Linked at 1000Mbps (1Gbps)
Working Mode	Default (Normal mode): All ports can communicate with each other. EXTEND (Surveillance mode): Transmission distance up to 250 meters.
Power Supply	AC: 100-240V, 50/60Hz
Weight	<0.6kg
Dimensions (W x D x H)	160mm x 93mm x 32mm
