12MP IP PTZ Camera (22x Optical, PRO)

Call us for a price

*Special Order*

IPC6858SR-X22

Part of the UNV professional range, this vandal resistant dome IP PTZ camera boasting an amazing 12 megapixel UHD recording resolution and an auto-focusing 22x optical zoom lens. Supporting up to Ultra H.265 compression and up to 250m of IR range.

- Vandal Resistant (IK10 Rating)
- Resolution 12MP (4000 x 3000)
- Motorised 6.5-148.5mm Lens, Angles 56.69° ~ 3.19° (H)
- 22x Optical Zoom, 16x Digital Zoom
- Smart IR, Up To 250m IR Range
- Day/Night, IR Cut Filter, 3D DNR
- WDR, OSD, Triple Streams
- Privacy Mask, Motion Mask, ROI
- Supports H.264, H.265 or Ultra 265
- Alarm I/O, 1 Input and 1 Output
- ONVIF Compliance (Profile G, S)
- Temperature Range -40°C to 70°C
- Wide voltage range of ±25%
- Metal Housing, IP66 Rated
- 6kV surge protection

Camera

Image Sensor:
Aptina CMOS (1/1.7")
Resolution:
12MP
Effective Pixels (H x V):
4000 x 3000
TV System:
PAL / NTSC
Shutter Speed:
Auto/Manual, 1/1~1/100000s
Signal-to-noise Ratio:
>55dB
Iris:
Auto/Manual, F1.5 ~ F3.4
Back Light Compensation:
Via OSD Menu
Wide Dynamic Range:
dWDR
Digital Noise Reduction:
2D/3D
Gain Control:
Auto
Sync Mode:
Internal
White Balance:
Auto/Manual
Lens:
Motorised 4.5-143mm, 22x Optical and 16x Digital
Field of View:
56.69°~ 3.13°
Scanning:
Progressive Scan
Onboard Recording:
Yes, to MicroSD card up to 128GB

Pan & Tilt

Pan Range:
360° (endless)
Pan Speed:
0.1°/s ~ 240°/s (Preset speed: 300°/s)
Tilt Range:
-15° ~ +90° (auto reverse)
Tilt Speed:
0.1° ~ 160°/s (Preset speed: 240°/s)
Number of Presets:
1024
Patrol:
Preset patrol, Route patrol, Recorded patrol

DORI

Detect:
158.1-3478m
Observe:
63.2-1391.4
Recognise:
31.6-695.7m
Identify:
15.8-347.8m

Day/Night

Day & Night:
IR Cut Filter (Smart IR)
Minimum Illumination:
Colour 0.01Lux, 0Lux with IR on
IR Range:
245-250m
IR Control:
CDS Auto

Network

Ethernet:
RJ45 10/100
Supported Protocols:
IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP, RTP,RTSP,RTCP,DNS,DDNS,NTP,FTP,UPnP,HTTP,HTTPS,SMTP,SSL
ONVIF:
Supports ONVIF (Profile G, Profile S)
POE:
N/A
Main Stream:
4000x3000@20fps
Sub Stream:
1920x1080@30fps

General

Power:
24V AC (+/- 25%) / 24V DC (+/- 25%)
Housing:
Metal
Power Consumption:
Max 56W
Operating Temperature:
-40°C ~ +70°C
Operating Humidity:
10% - 95% RH
Ingress Protection:
IP66
Approvals:
CE / FCC
Weight:
9.69kg

Interface

Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x2), Alarm output (x1)

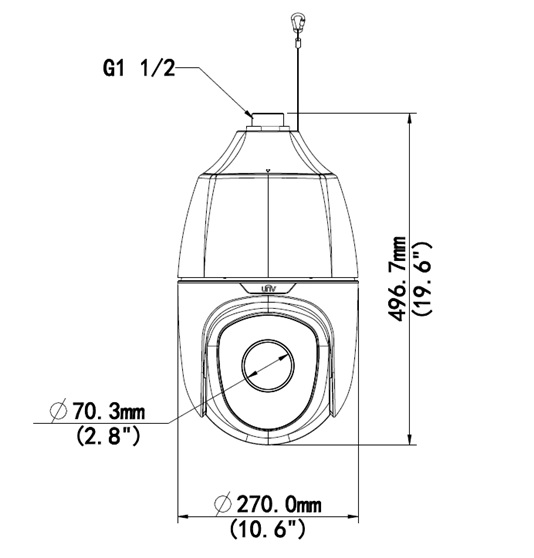

All dimensions are in millimetres (mm)

TR-CE45-IN

Indoor, wall or pendant installation for PTZ and dome cameras
- 116.5mm x 239mm

Call us for a price £15.00 You save: £15.00
TR-UF45-A-IN

Indoor pendant installation for PTZ cameras
- 116mm x 30.5mm

Call us for a price £10.00 You save: £10.00
TR-SE45-A-IN

Extension for the PTZ pendant mounts
- 526mm x 59mm

Call us for a price £12.00 You save: £12.00
TR-SE45-IN

Extension for the PTZ pendant mounts
- 226mm x 59mm

Call us for a price £9.00 You save: £9.00
TR-WE45-A-IN

Wall mount for IPC62x and IPC63x series PTZ cameras
- 314mm x 141mm x 216mm

Call us for a price £23.00 You save: £23.00
TR-WE45-B-IN

Gooseneck mount for IPC62x and IPC63x series PTZ cameras
- 879mm x 831mm

Call us for a price £50.00 You save: £50.00
TR-JB12-IN

- Junction box for Uniview PTZ IPC62x and IPC63x cameras
- 296mm x 244mm x 127mm
- Weight: 2.5kgs

Call us for a price £60.00 You save: £60.00

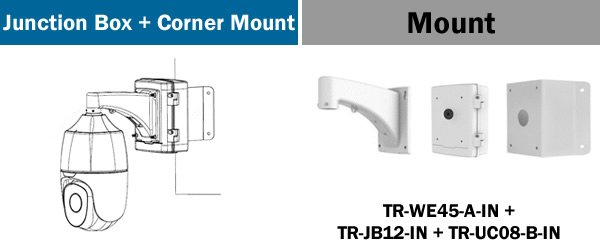

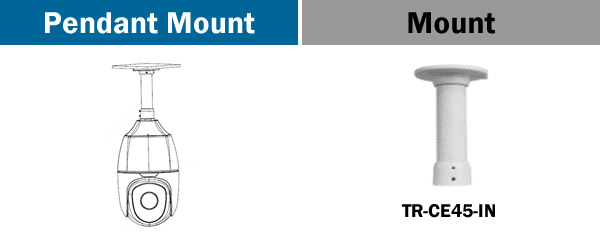

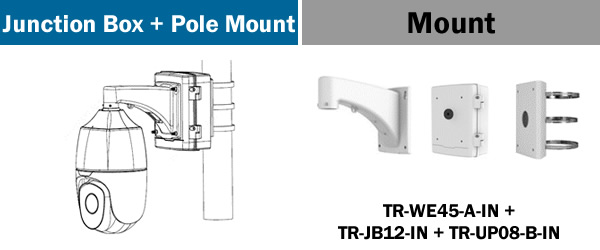

Different ways of mounting this camera:



This camera has the following special features:

ANR (Automatic Network Replenishment)
ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.



IK10 Rating
An IK rating refers to how much mechanical impact a product can resist and is defined in IEC 62262. An IK10 rating means the product is protected against 20 joules impact; this is equivalent to an impact from a 5 kg mass dropped from 400 mm above the impacted surface.



VCA (Video Content Analysis)
VCA is the ability to automatically analyse video to detect temporal and spatial events. This camera has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Face Detection - Detect human faces
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • People Counting - People flow counting and crowd density monitoring
  • Tamper Identification - Detect when the camera has been physically tampered with
