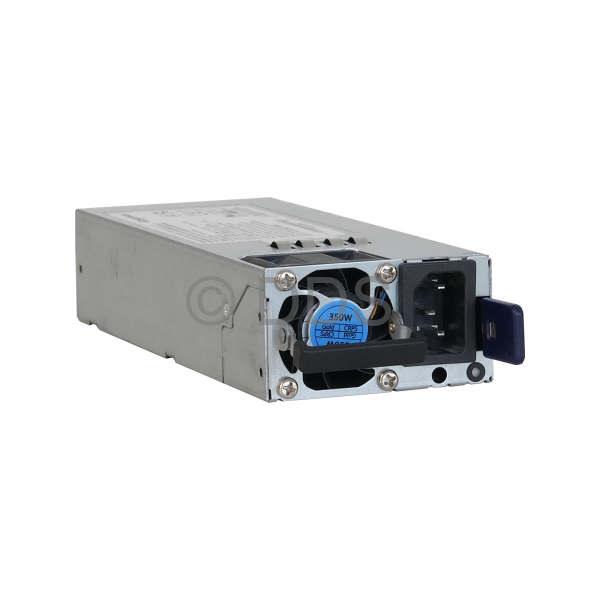

Uniview 350W Redundant PSU
Save
100%
100%
Redundant Power Supply for recorders with large quantities of hard disk drives, such as NVR516-64E-R and NVR516-128E-R
- Protection against short circuit, overload & overvoltage
- Front panel indicator lights alert to normal and abnormal conditions
- Meets regulatory standards: UL, TUV, CE
| Specifications | |
| AC Input | |
| Voltage | 90 ~ 264V AC |
| Frequency | 47 ~ 63Hz |
| Power Factor | ≥ 0.95 |
| Input Current | ≤6.3A@100-240VAC |
| Input Protection | Input under-voltage or over-voltage |
| DC Output | |
| Voltage / Electricity | +12VDC/29A，+12VStandby/2.1A |
| Source Regulation | ±1% |
| Load Regulation | ±5% |
| Stabilized Voltage Precision | ±5% |
| Output Power | 350W max |
| Output Protection | Short Circuit Protection, Overload Protection, Overvoltage Protection, Hot Plug Protection, Over Temperature Protection |
| General | |
| Indicator Light | Normal: Green ; Abnormal: Yellow |
| Working Temperature | 0 ~ 50°C |
| Storage Temperature | -40°C ~ 70°C |
| Heat Dissipation | Ventilating fan design, heat emission at back |
| Dimensions | 185mm x 40mm x 73.5mm |
| Conformity Standards | |
| EMC | EN55032, EN 61000-3-2, EN55035 |
| NEBS | SR-332 ISSUE 2 |
| Approvals | CB, FCC, UL |
