UNV Professional NVR (64 Channel)

Call us for a price


Part of the UNV professional range, this IP NVR (Network Video Recorder) has HD recording and playback of all channels. It includes a user-friendly mouse-driven interface with full remote network and mobile phone access. The NVR can auto-detect ONVIF compatible IP cameras; it can support up to 8MP (4K) IP and 16MP cameras.

- 64 Channel Video & Audio
- Plug & Play for UNV Cameras
- Supports up to 16MP IP Cameras
- Bandwidth IN: 320Mbps, OUT: 160Mbps
- HDMI & VGA Output
- VCA with Compatible Cameras (see Special Features)
- ONVIF Compliance (Profiles S, G, T)
- Supports H.264, H.265 or Ultra H.265
- ANR Technology to Enhance Storage (see Special Features)
- Fisheye dewarping
- Support N+1 Hot spare
- Support for 12V Power output
- Alarm 16 In, 4 Out, Two-way Audio
- Mac Compatible
- Supplied with Rack Mounts
- Compatible with Sentinel and Immix Remote Monitoring


Click here to select Hard Drive options

Video/Audio Input

Video Input:
64ch H.264/H.265/Ultra265
Incoming Bandwidth:
Outgoing Bandwidth:
Audio Input:
1ch, G711_A/G711_U
Supported Technologies:

Video/Audio Output

Live View/ Playback/ Recording Resolution:
Frame Rate:
16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P@30fps
Playback Capacity:
64ch D1/36ch 720P/32ch 960P/16 1080P/8ch 4MP/4ch 8MP/2ch 12MP/2ch 16MP
HDMI Output:
3840x2160, 1920x1080, 1280x720, 1024x768
VGA Output:
1920x1080, 1280x720, 1024x768
Audio Output:
1ch, Line out

Hard Disk

Drive quantity:
Up to 8 SATA drives
Drive capacity:
Up to 12TB each


Network Interface:
2 RJ45 10M/100M/1000M
POE Interface:
POE Max Power:

Storage and Backup

Recording Mode:
Manual, Continuous, Schedule, Motion, Sensor, Pre/Post
Search by Time, Calendar, Events
Backup Devices:
Via USB Memory Stick, HDD or over the network
Live View:
1, 4, 9, 16, 32 or 64 screens, Digital Zoom


Power Supply:
AC 100~220V
Power Consumption:
Max 32W (without HDD, USB)
Operating Temperature:
-10°C ~ 55°C
Operating Humidity:
0% - 90% RH
Product Dimensions:
442mm(W) x 426mm(D) x 89mm(H)


Supported OS:
Windows 7+, MacOS X 10.11+

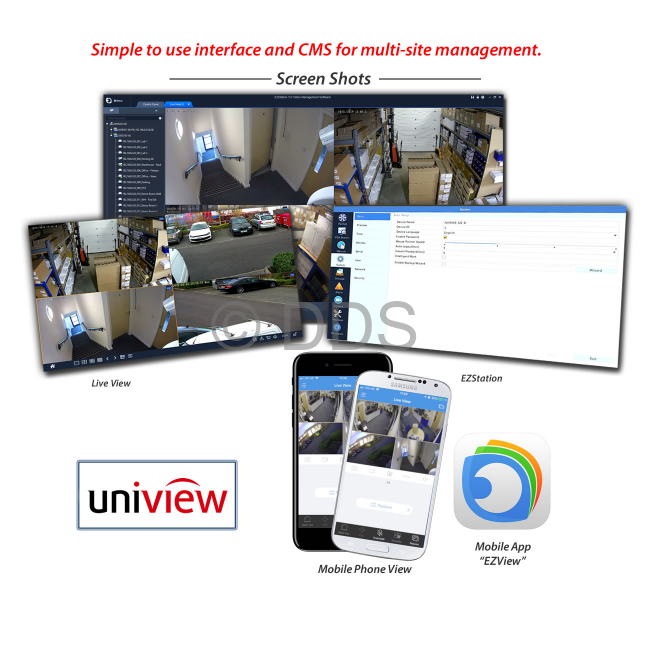

Remote Software:
Internet Explorer 9+, EZStation VMS
Supported Devices:
iOS, Android
Mobile App:
Email or Push


Video Outputs:
HDMI (x1), VGA (x1)
USB 2.0 (x2), USB 3.0 (x1)
Audio I/O:
Microphone in (x1), Audio line out (x1)
Alarm I/O:
Alarm input (x16), Alarm output (x4)
PTZ Control:
Onvif / RS-485
Mouse control

This recorder has the following special features:

AI (Artificial Intelligence)

AI allows the NVR to work out if the movement detected was caused by a human, vehicle, or nature. This requires an AI compatible camera (order code ending in -I0).


ANR (Automatic Network Replenishment)

ANR is a feature which allows a camera to record to an onboard MicroSD card, if it loses connection with the NVR. Once the connection has been re-established, the footage is transferred to the NVR. This feature requires ANR support from the camera and NVR.


Fisheye Dewarping

Dewarping is a feature which allows an NVR to dewarp the 360° image from a fisheye camera. This makes the image much more usable as the image is flattened and not warped.


LPR (License Plate Recognition)

LPR is the ability to automatically analyse video to detect vehicles and number plates. This allows the NVR to record footage as normal, but also record and store license plates. This is done using the Uniview LPR camera (HC121@TCR-08S-Z).


N+1 Hot Spare

To use the Hot Spare feature, you must have 1 additional NVR to your total quantity of NVR's. If a live NVR loses network connection or fails for any reason, the hot spare NVR will take over to ensure data integrity and reliability. When the failed NVR comes back online, the hot spare NVR will send the recorded data back to the original NVR, and then will revert back to Hot Spare mode.


VCA (Video Content Analysis)

VCA is the ability to automatically analyse video to detect temporal and spatial events. The feature requires VCA support from the camera and NVR. This NVR has the capability to do the following:

  • Audio Detection - Detect a sudden increase or decrease in sound
  • Enter Area - Entering into a pre-defined virtual region
  • Fire Detection - Detects fire (requires a thermal camera)
  • Intrusion Detection - Entering and loitering in a pre-defined virtual region
  • Leave Area - Leaving a pre-defined virtual region
  • Line Crossing - Detect when a pre-defined virtual line has been crossed
  • Motion Detection - Movement within a pre-defined virtual region
  • Object Left Behind - Detect when an object has been left inside a region, which wasn't there before
  • Object Removed - Detect when an object has been removed from a region, which was there before
  • Scene Change - Detect when the scene changed
  • Smoking Detection - Detects smoking (requires a thermal camera)
