Wireless KeyPad TouchScreen

Call us for a price

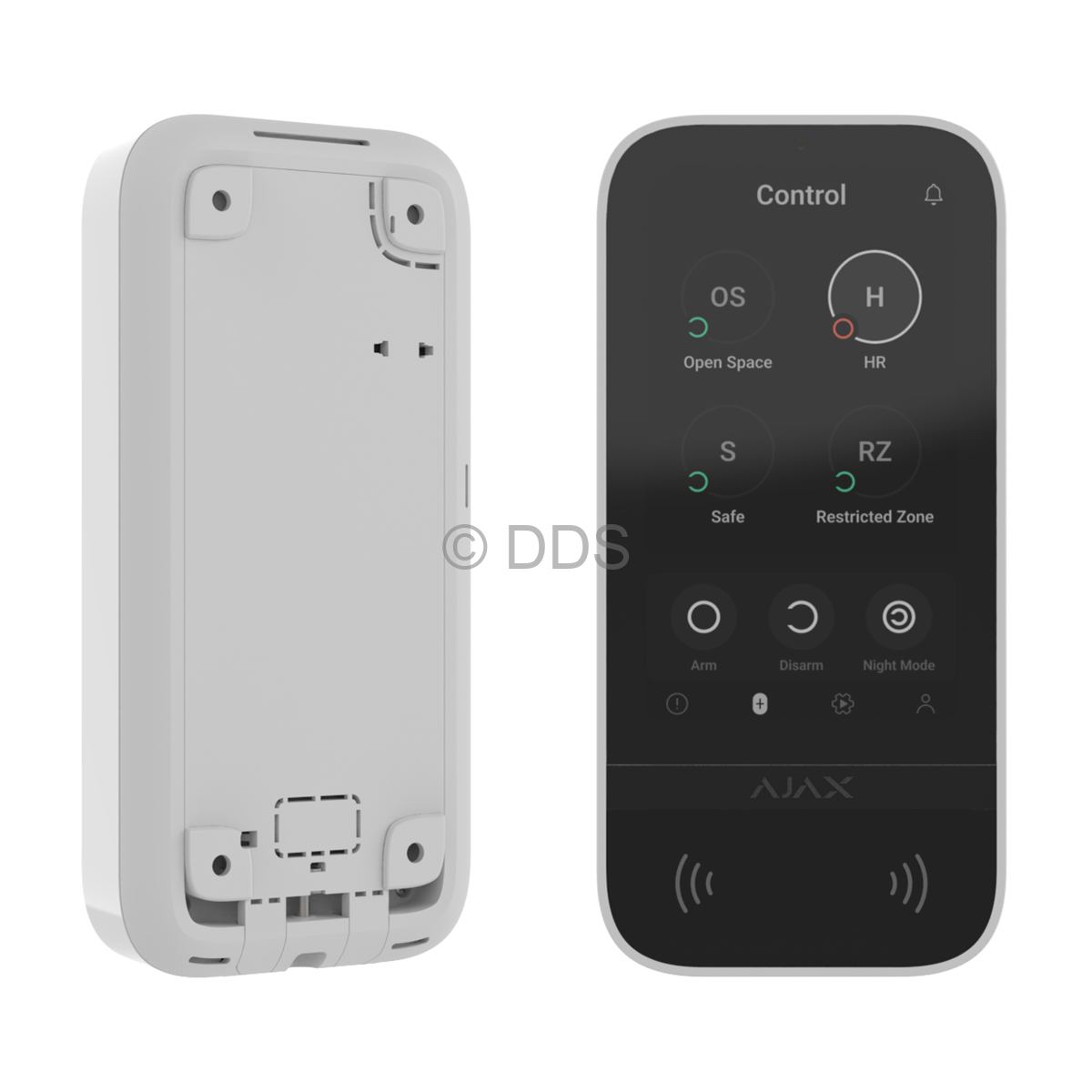

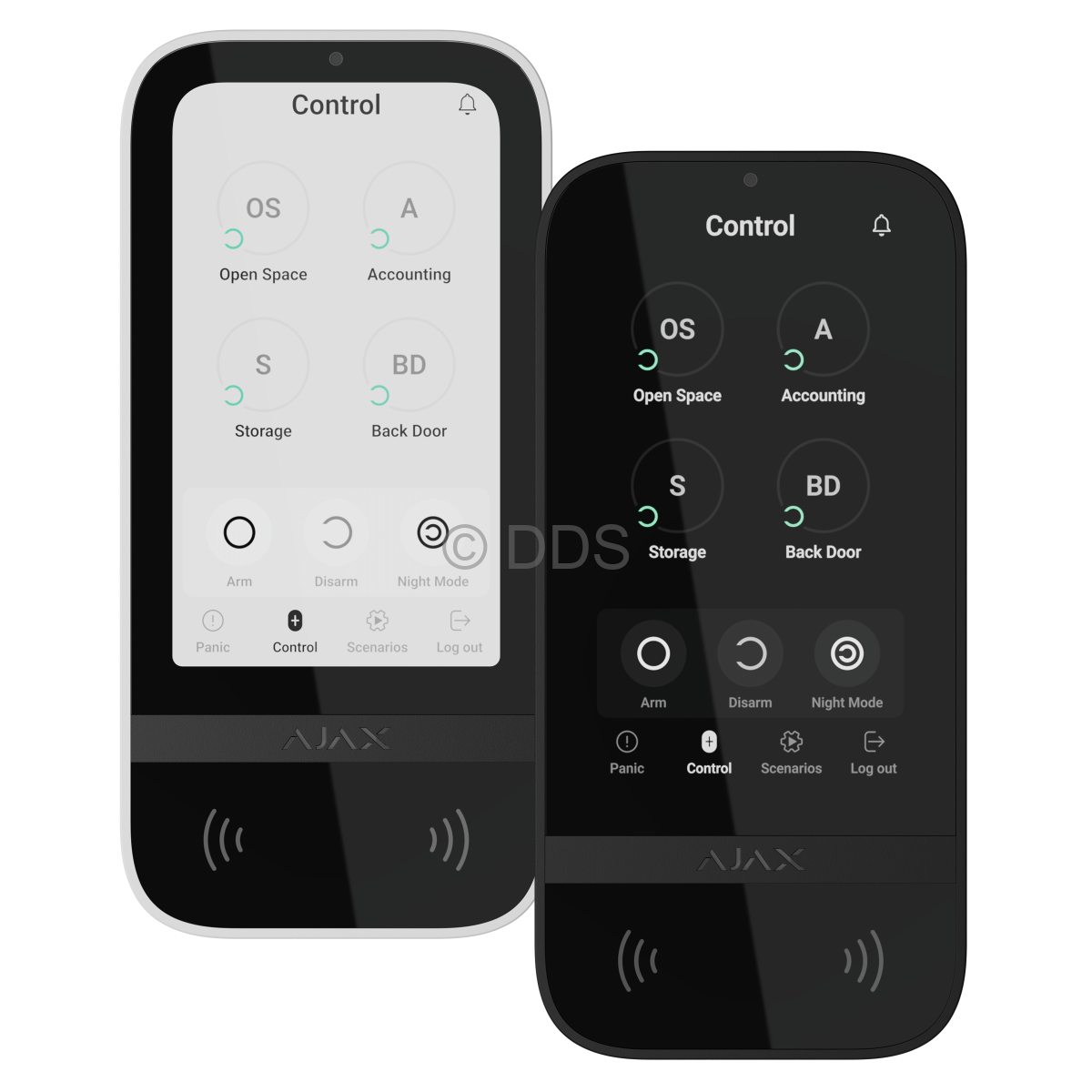

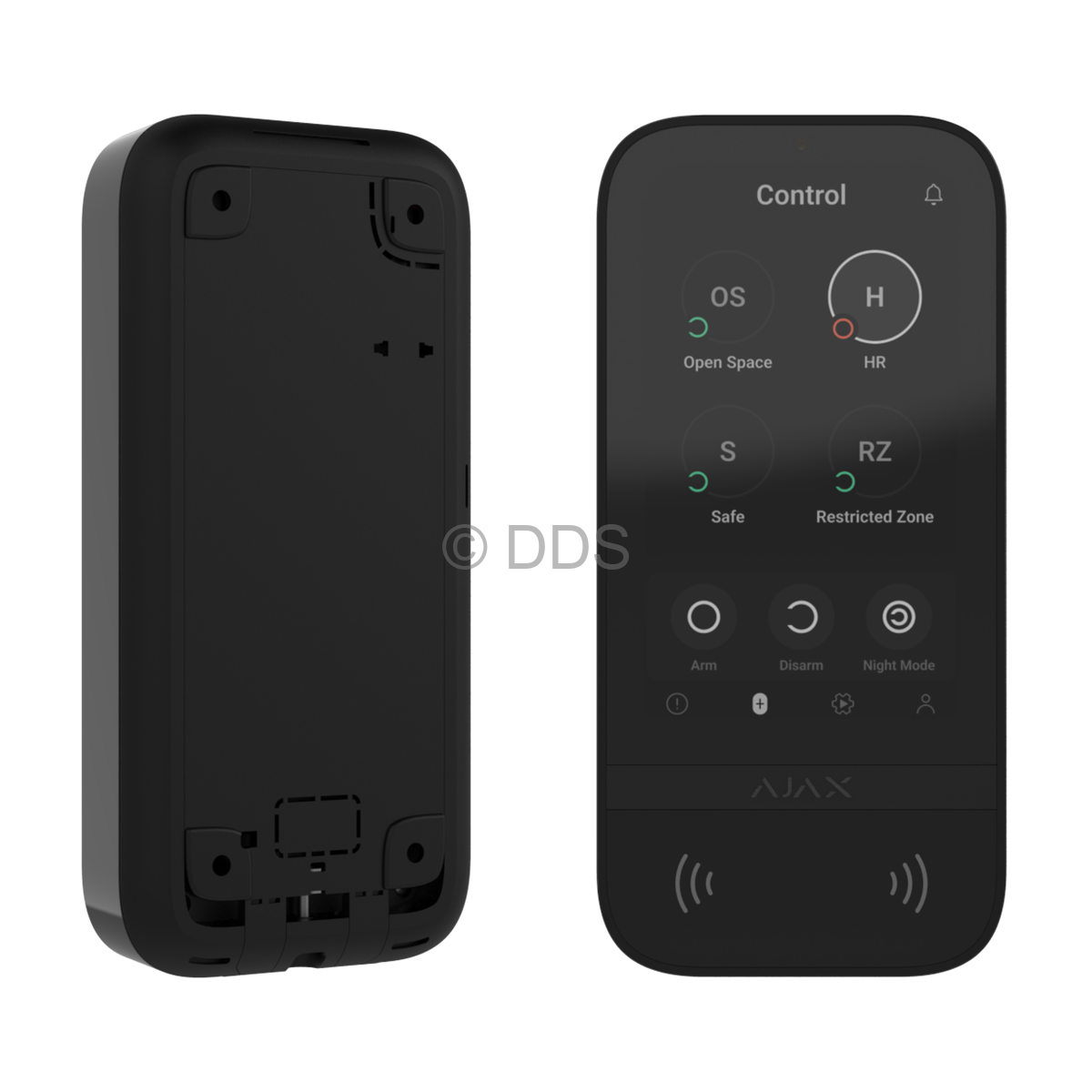

KeyPad TouchScreen inherits the interface of Ajax smartphone apps to provide easy and familiar system control. A 5-inch touchscreen allows you to access any group's current security mode quickly. It activates by raising a hand nearby and has an automatic brightness control. A keypad has a sound indication and can notify about alarms, delays when entering/leaving, and door opening when the system is disarmed. The volume is adjusted in Ajax apps. The keypad also displays the system integrity check result and informs about malfunctions when arming.

- Activate the full security mode by pressing one button
- Duress code to raise a silent alarm if forced to enter the code by an intruder
- Use with Ajax Pass, Tag, or smartphone
- Grade II (EN 50131)
- Operates up to 1.5 years without battery replacement


Technical Specifications
Classification Radio channel touchscreen keypad
Installation method Indoors
Compatibility Operates with Hub 2, Hub 2 Plus, Hub Hybrid and ReX 2
Duress code Yes
Display type IPS, capacitive touchscreen
Display size 5"
Display resolution 480 x 854
Contactless access DESFire EV1, EV2
ISO14443-A (13.56 Mhz)
Access device capacity Up to 200 cards or tags (depending on the Hub model)
Smartphone support  Android or iOS, with Bluetooth LE 4.2 and higher
Protection against password attack/guessing Yes
Arming/disarming indication Yes
Jeweller radio technology Communication range with central unit: up to 1,700 m in an open space
Two-way communication between devices
Operating frequencies: 868.0 - 868.6 MHz
Self-adjusting RF output power: up to 20 mW
Block encryption based on AES algorithm
Device polling period: 12−300 s
Power supply Battery: 6 x АА batteries
Power supply voltage: 1.5 V
Battery life: Up to 1.5 years
External power: Optional, 10.5-14V
Permissible humidity Up to 75%
Operating temperature range -10°С to +40°С
Anti-sabotage Protection against fraud
Jamming detection
Dimensions 171.5mm х 82.1mm x 26mm
Weight 327g
Certification Grade 2 (EN 50131), PD6662:2017, CE
