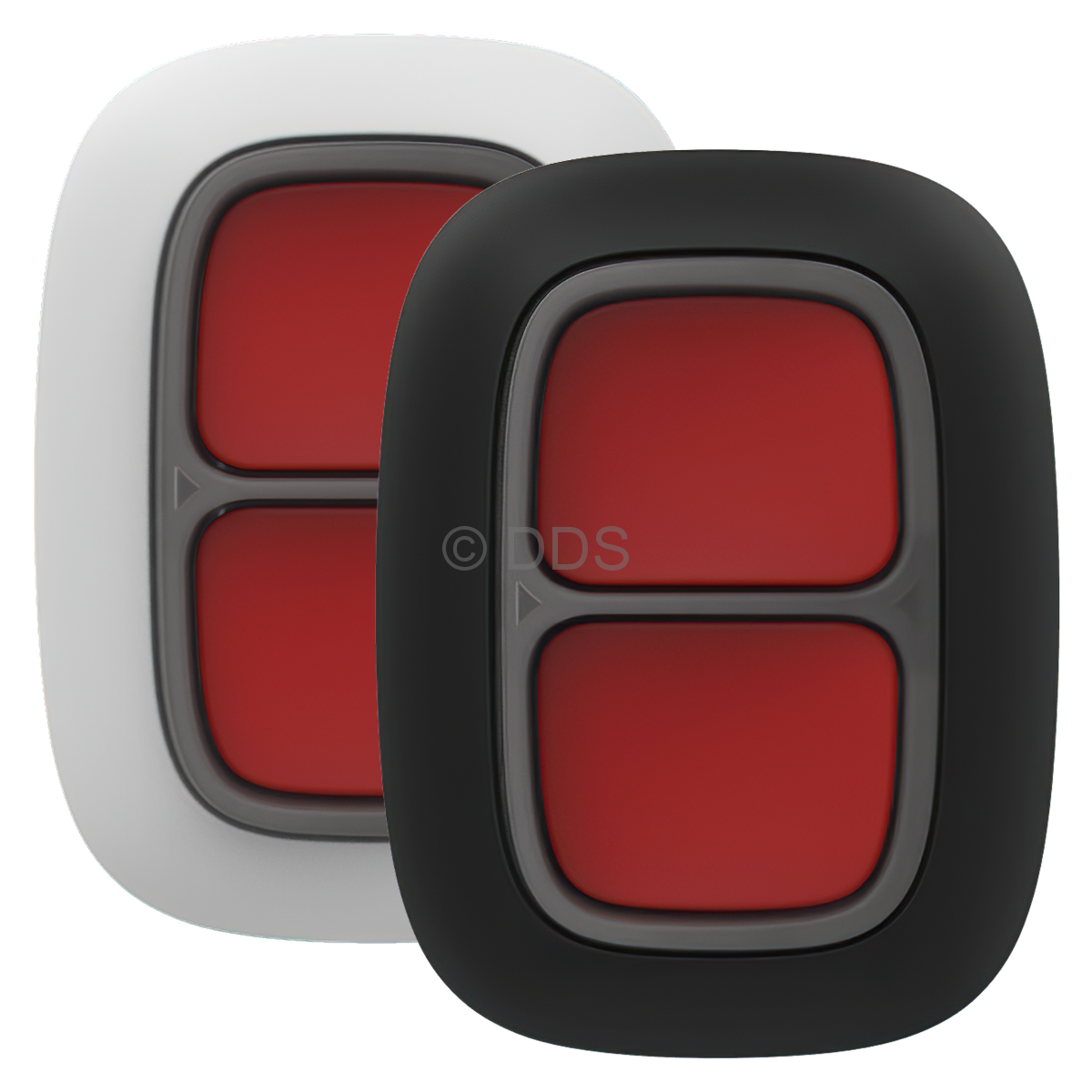

Wireless Hold-Up DoubleButton

Call us for a price

AJX-DBTN(20850)

The DoubleButton is a wireless hold-up device, intended to be used to activate an alarm when in danger. To activate the alarm, you must simultaneously press both buttons. They are stiff and parted by a plastic barrier. These measures eliminate false alarms when carrying DoubleButton in a pocket or bag. Raising an alarm is the priority DoubleButton function, but not the only one. By transmitting an alarm signal, the hold-up device can activate all or specific sirens at the object. And also, run automation scenarios: trigger a smoke machine, close electric locks, lower roller shutters.

- Two-button fob with visual feedback
- Designed to prevent false activations
- Operates up to 5 years without battery replacement



Technical Specifications
Classification Wireless hold-up device
Compatibility Operates with Hub, Hub Plus, Hub 2, Hub 2 Plus, ReX (requires OS Malevich 2.10)
Number of buttons 2
False alarm prevention Yes
Alarm transmission Not longer than 0.15 sec
Always active (does not require waking up to use)
Jeweller radio technology Communication range with a hub — up to 1300 m in an open area
Two-way communication
Operating frequencies — 868.0 - 868.6 or 868.7 – 869.2 MHz (depends on sales region)
Self-adjusting RF output power — up to 20 mW
Block encryption based on AES algorithm
Frequency hopping
Power supply Battery: CR2032 battery
Power supply voltage: 3 V
Battery life: up to 5 years
Permissible humidity Up to 75%
Operating temperature range -10°С to +40°С
Anti-sabotage Protection against fraud
Jamming detection
Dimensions 47mm х 35mm × 16mm
Weight 17g
Certification IP55
