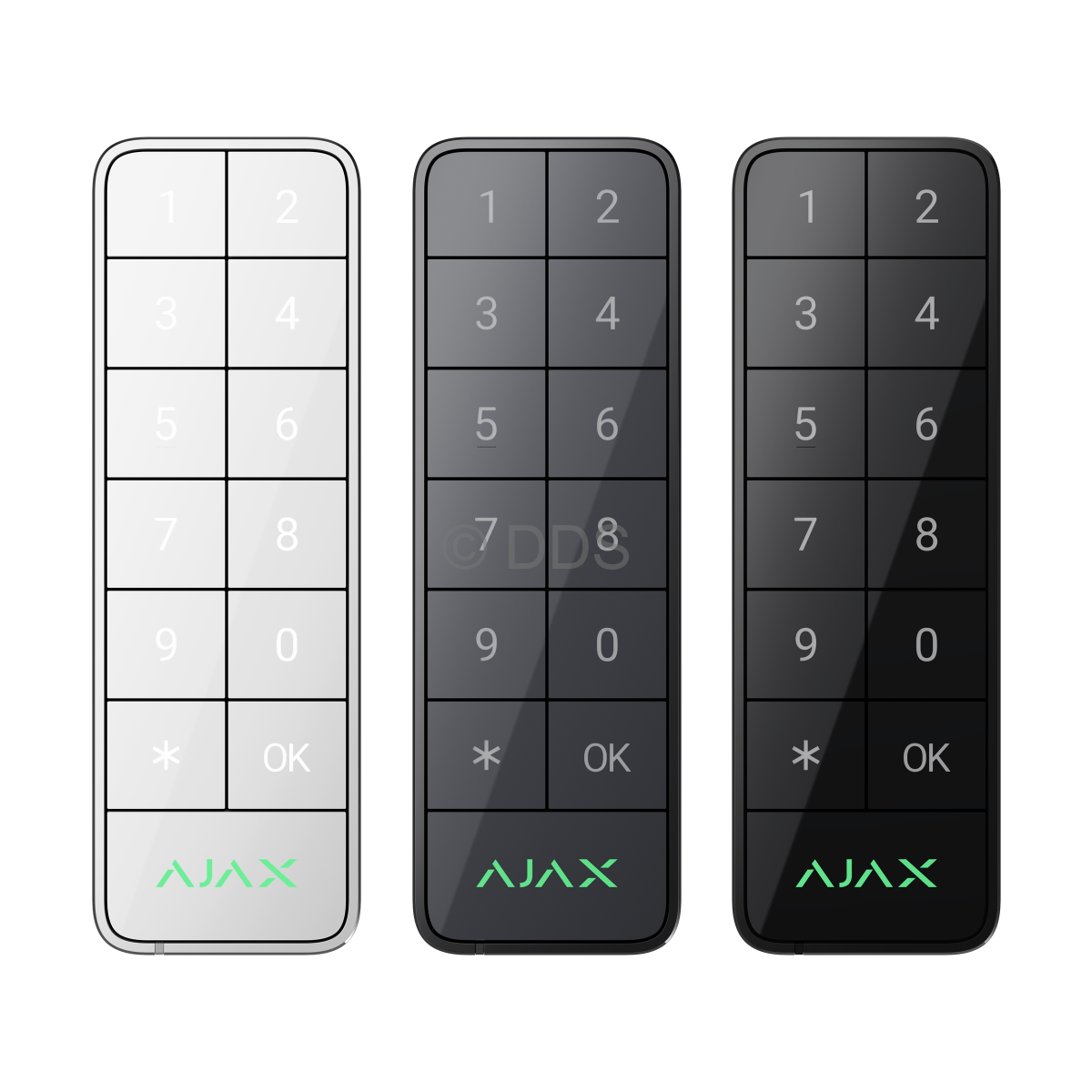

Wireless KeyPad Outdoor
Save
100%
100%
KeyPad Outdoor Jeweller is the first wireless Ajax keypad for managing security and automation outdoors. With multiple authentication methods, the device ensures convenient and secure system control in any scenario. A solid radio communication range and pre-installed batteries make the device ideal for hard-to-wire site and off-grid locations. The sturdy enclosure with large mechanical buttons is built to withstand extreme weather and physical impact. Clear sound and LED indication provide intuitive feedback, enhancing the overall user experience.
- Activate the full security mode by pressing one button
- Duress code to raise a silent alarm if forced to enter the code by an intruder
- Use with Ajax cards or tags
- Grade II (EN 50131)
- Operates up to 3 years without battery replacement
| Technical Specifications | |
| Classification | Radio channel touch keypad |
| Installation method | Indoors and outdoors |
| Compatibility | Operates with Hub 2 or newer, and ReX or newer (requires OS Malevich 2.11 or higher) |
| Duress code | Yes |
| Sensor type | Capacitive |
| Contactless access | DESFire EV1, EV2, EV3 ISO14443-A (13.56 Mhz) |
| Access device capacity | Up to 200 cards or tags (depending on the Hub model) |
| Smartphone support | Android or iOS, with Bluetooth LE 4.2 and higher |
| Protection against password attack/guessing | Yes |
| Arming/disarming indication | Yes |
| Jeweller radio technology | Communication range with central unit: up to 1,700 m in an open space Two-way communication between devices Operating frequencies: 868.0 - 868.6 MHz Self-adjusting RF output power: up to 20 mW Block encryption based on AES algorithm Device polling period: 12−300 s |
| Power supply | Battery: 2 x CR123A batteries Power supply voltage: 1.5 V Battery life: Up to 3 years Optional power supply: 10.5–14 V⎓ (batteries serve as a backup if power supply is connected) |
| Permissible humidity | Up to 80% |
| Operating temperature range | -25°С to +60°С |
| Anti-sabotage | Protection against fraud Jamming detection Tamper-resistant |
| Dimensions | 170mm х 45mm x 31mm |
| Weight | 258g |
| Certification | Grade 2 (EN 50131), PD6662:2017, CE, IP66, IK08 |
